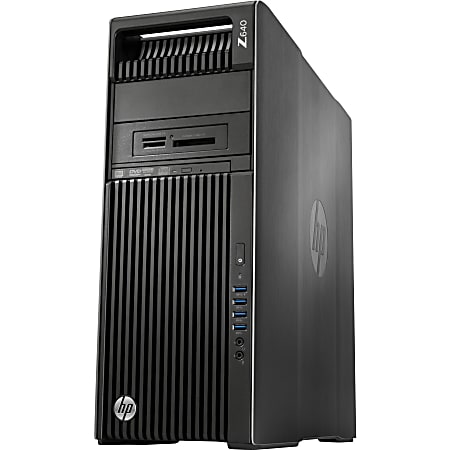

Redefine versatility and flexibility. Expand your capabilities with HP's Z640 Workstation offering powerful performance, whisper-quiet computing, and tool-less access in compact design.
|80 PLUS Certification||80 PLUS|
|color||brushed aluminum; black|
|controller type||Serial ATA/600|
|Effective Memory Speed||1866 MHz|
|Environmental Certification||Ecolabel; ECO-Declaration; CECP; RoHS; WEEE|
|form factor||Convertible Mini-tower|
|Input Voltage||120 V AC; 230 V AC|
|Maximum Power Supply Wattage||925 W|
|memory type||DDR4 SDRAM|
|Number of External 3.5" Bays||2|
|Number of External 5.25" Bays||3|
|Number of PCI Express x1 Slots||1|
|Number of PCI Express x16 Slots||2|
|Number of PCI Express x4 Slots||1|
|Number of PCI Express x8 Slots||1|
|Number of PCI Slots||1|
|Number of Total Expansion Bays||5|
|Number of Total Expansion Slots||6|
|Operating System Architecture||64-bit|
|operating system details||Windows 7 Professional|
|Operating Systems||Windows 7 Pro|
|Optical Media Supported||DVD-RAM/±R/±RW|
|ports||3 USB 2.0; 9 USB 3.0|
|Power Factor Correction||Yes (active)|
|Processor Core||Hexa-core (6 Core)|
|processor model||E5-2620 v3|
|processor speed||2.40 GHz|
|processor type||Intel Xeon|
|Product Name||Z640 Workstation|
|RAID Levels||0, 1, 10|
|RAM Supported||128 GB - registered ¦ 256 GB - Load-Reduced|
|Theft/Intrusion Protection||Security lock slot (cable lock sold separately)|
|Total Number of USB Ports||13|
|Total Solid State Drive Capacity||256 GB|
|warranty length||3-year limited|
|wired connectivity||10/100/1000 Ethernet|
Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)
Intel® Xeon® E5 processor
Redefine versatility and flexibility. Expand your capabilities with HP’s Z640 Workstation offering powerful performance, whisper-quiet computing, and tool-less access in compact design.
Experience massive workstation power with support for 145W processors powering up to 36 cores in a dual Intel® Xeon® processor configuration.h3 The HP Z640 Workstation uses Z DNA to provide a high-end workstation experience.
Build the perfect workstation for your needs. The HP Z640 Workstation featuring Windows 8.1h1 provides incredible expansion in a small footprint. With up to 8 memory DIMMs, up to 4 internal hard drives, optional Thunderbolt™ 2,h4 and the HP Z Turbo Drive, you get storage, performance, and the freedom to create.
Concentrate on your work using a workstation that is whisper quiet. When every inch, watt, and decibel makes a difference, count on the HP Z640 Workstation.
Achieve the performance you need with the ability to support two next generation Intel® Xeon® processors for up to 36 total processor cores in one system.f2
Take productivity up a notch with the ability to do more thanks to NVIDIA® professional graphics cards in 2D or 3D.f5
Get serious about graphics and reach peak productivity with access to a breadth of AMD professional graphics from entry to high-end 3D.f5
Maximize your time and increase your capabilities with USB and SATA ports, plus lightning-fast data transfers using optional Thunderbolt™ 2 technology.f4
A tool-free chassis boasts low acoustics, single integrated Gb Ethernet, a front and rear handle, rear ledge and is 4U rack mountable—all in a compact design.
Reduce boot up, calculation, and graphics response and revolutionize how your HP Z640 handles large files with the HP Z Turbo Drive, a remarkably fast and innovative storage solution.
Take multitasking to a new level with the ability to easily connect and work on up to eight displays.f6
Optimize this HP Z640 for peak performance. HP Performance Advisorf7 configures your system with updated settings and drivers to help maximize performance.
- Operating system
- Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)
- Memory, standard
- 8 GB DDR4-2133 ECC registered SDRAM (1 x 8 GB)
- Memory slots
- 4 DIMM (with 1 processor) and 8 DIMM (with 2 processors)
- Hard drive description
- HP Z Turbo Drive 256 GB PCIe SSD
- Processor family
- Intel® Xeon® E5 processor
- Intel® Xeon® E5-1650 v3 (3.5 GHz, 15 MB cache, 6 cores, Intel® vPro™)
- 33.1 lb
- Weight note (imperial)
- Exact weight depends upon configuration.
- Minimum dimensions (W x D x H)
- 17.5 x 46.48 x 44.45 cm
- Pointing device
- HP USB Optical Mouse
- 4 USB 3.0; 1 headset; 1 microphone
- Expansion slots
- 2 PCIe Gen3 x16; 1 PCIe Gen3 x8 (open-ended); 1 PCIe Gen2 x4 (open-ended); 1 PCIe Gen2 x1 (open-ended); 1 PCI
- Security management
- HP Solenoid Hood Lock & Hood Sensor; HP Business PC Security Lock Kit; TPM 1.2 certifiedd11
- Protected by HP Services, including a standard limited 3 years parts, 3 years labor, and 3 years onsite service (3/3/3) warranty. Certain restrictions and exclusions apply.
DisclaimersProduct image may differ from actual product h3 Available with 128GB DIMMs. h1 Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.microsoft.com. h4 Thunderbolt is an optional or add-on feature. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products. f6 Support for up to eight displays requires purchase of two graphics cards that support up to 4 displays simultaneously. Displays sold separately. f5 Sold separately or as an optional feature. f7 HP Performance Advisor requires Windows and Internet access. f8 Requires Windows operating system. f9 LANDesk software is sold separately. Managed devices must be connected to the management server. Requires active LANdesk maintenance service. Wipe functionality performs a "Windows 8 Reset" and requires Windows 8. Lock performs a Windows "Lock Computer.” d11 Wireless cards are optional or add-on features and requires separately purchased wireless access point and internet service. Availability of public wireless access points limited.
