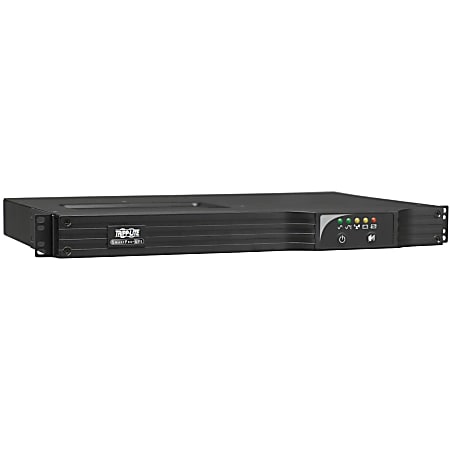

Tripp Lite SMART1000RM1U Smart Pro 1000VA 1U Rackmount Line Interactive UPS Item # 121536
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The SMART1000RM1U SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up data centers, VoIP systems and network closets, the SMART1000RM1U switches to 1kVA/800W battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.Two of the six NEMA 5-15R outlets may be switched off remotely to reboot equipment or shed nonessential loads to maximize battery backup time for mission-critical equipment. The internal battery provides 14 minutes of support at half load (400W) and four minutes at full load (800W). Operating with a high 99% line mode efficiency, the ENERGY STAR-certified SMART1000RM1U saves you money by meeting strict EPA guidelines.Automatic voltage regulation (AVR) maintains 120V nominal output over an input range of 83V to 147V without using battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 450-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite’s PowerAlert software (available via free download), SMART1000RM1U enables safe unattended system shutdown and file saves in case of a prolonged power failure.
|Additional Information||Tripp Lite SMART1000RM1U 1kVA / 1000VA / 800 watt line interactive UPS; 1U rack/tower compatible form factor; Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support; NEMA 5-15P input; 6 5-15R output receptacles; Installed depth of only 16.75 in. / 42.5cm; Sine wave output in both AC and battery backup modes; Full load efficiency rating of 99% saves energy and ensures cool operating temperatures|
|Alarm||On Battery; Overload; Low Battery|
|Backup/Run Time (Full Load)||4 Minute|
|Backup/Run Time (Half Load)||14 Minute|
|Battery Life||6 Year|
|battery type||Sealed Lead Acid (SLA)|
|brand name||Tripp Lite|
|Certifications & Standards||UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications|
|cord length||10 ft|
|Emergency Power OFF||Yes|
|Frequency Provided||60 Hz|
|Input Connectors||1 x power NEMA 5-15|
|Input Voltage||110 V AC|
|Load Capacity (VA)||1000 VA|
|Load Capacity (Watt)||800 W|
|Maximum Battery Recharge Time||4 Hour|
|Network Management||SNMP Manageable|
|Output Voltage||120 V AC|
|package contents||SmartPro 1000RM1U UPS; SMART 1000RM1U UPS System; Mounting Hardware; Cabling for USB & DB9 Monitoring and EPO Switching; PowerAlert unattended shutdown and UPS/Power monitoring software; Warranty information and instruction manual|
|Plug/Connector Type||NEMA 5-15P|
|Receptacles||6 x NEMA 5-15R|
|Status Indicators||5 front panel LEDs - Green POWER LED, 3 color BATTERY CHARGE LED, 3 color OUTPUT LOAD LEVEL LED, red BATTERY WARNING LED.|
|Total Number of Expansion Slots||1|
|warranty length||2-year limited|
|Waveform Type||Sine Wave|
|Weight (Approximate)||32 lb|
|Show More ▾|
SMART1000RM1U SmartPro® Line-Interactive Rack/Tower Sine Wave UPS with Network Slot
POWER PROTECTION AND BATTERY BACKUP
for servers and network hardware
This line-interactive UPS system protects your critical network systems from damage, downtime and data loss.
Why is this UPS a Good Investment?The success of any organization depends on critical information systems like servers and network hardware. If your critical systems don't have reliable power, employees can't work, communications go down, automated systems malfunction and productivity grinds to a halt. It would be nice if utility power was always reliable, but it isn't. Between severe weather, the aging electrical grid and unavoidable hazards lurking inside your own walls, your servers and network hardware are under constant attack from power problems. Even a brief loss of power or a momentary surge can damage your equipment, corrupt your data, bring down your network and hurt your bottom line.
The potential costs of downtime are alarming. Surveyed averages range from $1,167 per minute for mid-size businesses (IDC) to $7,908 per minute for larger operations (Ponemon Institute). For a tiny fraction of these costs, you can prevent damage, downtime and data loss by installing this SmartPro® UPS system. It conditions incoming AC power to protect your equipment, provides enough battery backup to outlast most outages and allows critical systems to shut down gracefully to prevent data loss and corruption during extended blackouts.
Common ApplicationsProtect Servers and Network Hardware
Application Servers, Storage Servers, Database Servers, File Servers, Virtualization Servers, Proxy Servers, Web Servers, Media Servers, VoIP Servers, Network-Attached Storage, Network Switches, PoE Switches, Firewalls, Network Appliances, Bridges, Gateways, Routers
Protect Equipment with Active PFC Power Supplies
Active PFC power supplies found in many devices require pure sine wave power.
Pure Sine Wave OutputWhen operating from battery power, a UPS system generates the waveform of its AC output. Many UPS systems generate PWM sine wave power, an approximation of the pure sine wave power you receive from your electrical utility. Although PWM sine wave power is compatible with most equipment, pure sine wave power is required by some devices -- such as computers with active PFC power supplies -- and prevents others from overheating, malfunctioning or failing prematurely. This UPS system generates pure sine wave power for superior compatibility with active PFC power supplies and other sensitive equipment.
Advanced AVR and Surge/Noise ProtectionIn locations with chronic voltage problems, frequent switching to battery drains reserve power and shortens battery life. This UPS system has a feature called automatic voltage regulation (AVR) that solves the problem. The UPS detects when input voltage is out of bounds and corrects it without using the battery.
All Tripp Lite UPS systems also include built-in surge protection and noise filtering to shield your equipment from destructive transient voltages and electromagnetic (EMI/RFI) line noise.
Flexible Management OptionsThere are several ways to manage this UPS system:
- Use the front-panel LEDs for convenient local management.
- Use the USB port with your computer's built-in power management features.
- Use the USB or serial port with your computer and Tripp Lite's PowerAlert® software. PowerAlert provides enhanced features like automatic file saves, event notification, logging, advanced device control and an SNMP agent that supports centralized management. Select UPS models include a convenient CD-ROM, or you can download the latest version of PowerAlert for free at Tripp Lite's website.
- Install an optional network card to enable standalone network management via SNMP, Web, SSH or telnet. The network card has an Ethernet port and embedded interface, allowing you to access advanced monitoring, control and notification features without directly connecting the UPS system to a computer. The network card also supports connecting one or more optional sensors for remote temperature, humidity and contact closure monitoring. (Available network cards and sensors include TLNETCARD with TLNETEM sensor; WEBCARDLX with E2MT, E2MTDO, E2MTDI and E2MTHDI sensors; and SNMPWEBCARD with ENVIROSENSE sensor. Refer to each model for specific features.)
- ENERGY STAR Certification: This UPS system has ENERGY STAR certification. It helps you save money, save energy and protect the environment by meeting strict efficiency guidelines set by the U.S. Environmental Protection Agency.
- User-Replaceable Battery: This UPS system has a user-replaceable, recyclable battery, allowing it to remain in service instead of going to a landfill.
- RoHS Compliance: This UPS system complies with the RoHS (Restriction of Hazardous Substances) Directive, limiting the use of hazardous substances in manufacturing.
Dependable Service from an Industry LeaderService and Support
- 3-Year Product Warranty: If this UPS system (including the internal battery) proves defective in material or workmanship within that period, Tripp Lite will repair or replace it at no charge.
- $250,000 Insurance: Tripp Lite will repair or replace connected equipment damaged by surges – even lightning strikes!
- Free Tech Support: Chicago-based, in-house tech specialists are available by phone, email and chat.
- Over 90 Years: Founded in 1922, Tripp Lite has a long-established and proven track record of providing reliable products and responsive customer service.
- Trusted Name: From the smallest office to the largest data center, customers worldwide trust Tripp Lite to power, protect, manage and connect valuable IT equipment.
- Third-Party Safety Testing and ISO 9001 Certification
Key SpecificationsModel: SMART1000RM1U
Load Capacity: 1 kVA (800 kW)
Power Factor: 0.8
Nominal AC Input: 120V, 60 Hz
Nominal AC Output: 120V, 60 Hz
AC Outlets: 6 x 5-15R
Switched Outlet Banks: Two switchable single-outlet 5-15R load banks
Output Waveform (AC Mode): Pure Sine Wave
Output Waveform (Battery Mode): Pure Sine Wave
Input Cord: 10 ft. (3 m) Cord with 5-15P Plug
Half-Load Runtime: 14 min. (400 W Load)
Communications: USB Port (HID-Compliant); Serial Port (DB9); Network Card Slot; EPO
User-Replaceable Battery: Yes (RBC69-1U)
Primary Form Factor: 1U Rack (Supports 2- or 4-post rack installation with included kit. Add 4POSTRAILKIT1U for extra support in a 4-post rack.)
Dimensions: 1.75 x 17.5 x 16.75 in. (4.5 x 44.5 x 42.6 cm)
Weight: 32 lb. (14.6 kg)
Standards: UL 1778 (USA); CSA (Canada); NOM (Mexico); FCC (EMI); ENERGY STAR; RoHS
Product Warranty (Worldwide): 3-Year Limited Warranty (Registration required for third year.)
Connected Equipment Insurance (U.S., Canada and Puerto Rico): $250,000
What's Included: UPS, 4-Post Rack Installation Kit, USB/Serial/EPO Cabling, PowerAlert Software, Manual
ENERGY STAR and the ENERGY STAR mark are registered trademarks owned by the U.S. Environmental Protection Agency. Tripp Lite has a policy of continuous improvement. Specifications are subject to change without notice. Actual products may differ slightly from photos. Tripp Lite uses primary and third-party agencies to test its products for compliance with standards. Runtime varies with load, battery condition and other factors. Go to Tripp Lite's website for more information, including complete warranty terms and conditions.
