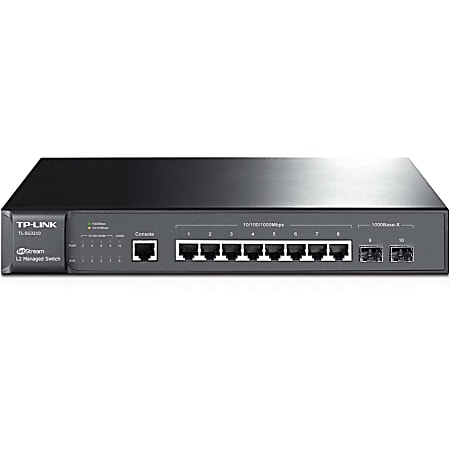

TP-LINK TL-SG3210 8-port Pure-Gigabit L2 Managed Switch, 8 10/100/1000Mbps ports, 2 Gigabit SFP slots Item # 140509
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
TP-LINK JetStream Gigabit L2 Lite managed switch TL-SG3210 provides 8 10/100/1000 Mbps ports. The switch provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. Moreover, the switch also comes equipped with 2 Gigabit SFP slots, expanding your network flexibly. TL-SG3210 is the cost-effective network solution for the ideal small and medium business.TL-SG3210 has robust security and management features. The IP-MAC-Port-VID Binding and Access Control List (ACL) functions protect against broadcast storms, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive Layer 2 switch and gigabit capability, TP-LINK JetStream L2 Lite managed switch TL-SG3210 provides you the ideal access-edge solution.
|Ethernet Technology||Gigabit Ethernet|
|power source||Power Supply|
|Total Number of Network Ports||8|
|Number of Network (RJ-45) Ports||8|
|Certifications & Standards||CE; FCC|
|Compatible Rack Unit||1U|
|PoE (RJ-45) Port||No|
|package contents||JetStream TL-SG3210 Gigabit L2 Lite Managed Switch; Power Cord; Quick Installation Guide; Resource CD; Rackmount Kit; Rubber Feet|
|Product Name||JetStream TL-SG3210 Gigabit L2 Lite Managed Switch|
|manufacturer||TP-LINK Technologies Co., Ltd|
|Management||VLAN; DHCP; Syslog; CLI; MIB; RMON 1, 2, 3, 9; SNMP v1, v2c, v3; Web-based Management; Telnet; QoS|
|Number of SFP Slots||2|
|Redundant Power Supply Supported||No|
|Port/Expansion Slot Details||8 x Gigabit Ethernet Network; 2 x Gigabit Ethernet Expansion Slot|
|Input Voltage||110 V AC; 220 V AC|
|Media Type Supported||Twisted Pair|
|Expansion Slot Type||SFP|
|Number of Total Expansion Slots||2|
|form factor||Rack-mountable; Desktop|
|Token Ring Port||No|
|Show More ▾|
From the Manufacturer|
What This Product DoesThe JetStream™ Gigabit L2 Managed Switch TL-SG3210 by TP-LINK comes equipped with 8 10/100/1000Mbps ports. It provides high performance, enterprise-level QoS, advanced security strategies and rich layer 2 management features. Moreover, the switch also comes equipped with 2 gigabit SFP slots which expand your network and give it flexibility. The TL-SG3210 is a cost-effective network solution for small and medium businesses.
Plus, the TL-SG3210 has robust security and management features. The IP-MAC-Port-VID Binding and Access Control List（ACL) functions protect against broadcast storms, ARP and Denial-of-Service(DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with CLI, SNMP and RMON, means faster setup and configuration. For those requiring cost-sensitive Layer 2 Switch with gigabit capability, the TP-LINK JetStreamTM L2 Lite Managed Switch TL-SG3210 provides you the ideal access-edge solution.
Secure NetworkingThe TL-SG3210 provides IP-MAC-Port-VID Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. It integrates some typical DoS attacks to select. You can protect these attacks more easily than ever before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS server to require some authentication information before access to the network is allowed. The Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.
Advanced QoS featuresTo integrate voice, data, and video service on one network, the TL-SG3210 applies rich QoS policies. Administrators can designate the priority of the traffic based on a variety of means including IP or MAC address, TCP or UDP port number, etc, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN that the TL-SG3210 supports, the voice applications will operate much smoother.
Abundant Layer 2 featuresThe TL-SG3210 supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control function. Plus, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management FeaturesThe TL-SG3210 is easy to use, manage, and supports various user-friendly standard management features such as intuitive web-based Graphical User Interface(GUI)or industry-standard Command Line Interface (CLI). Either administration traffic can be protected through SSL or SSH encryptions. SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. In addition, with integrated NDP/NTDP protocol, the TL-SG3210 can be managed by the commander switch through IP clustering function more easily.
• Link Aggregation Control Protocol (LACP)
• 4K VLAN
• GVRP (GARP VLAN Registration Protocol)
• Port Isolation
• IGMP Snooping
• Quality of Service
• 4 priority queues
• Support IEEE 802.1P
• DSCP QoS
• Rate limit feature
• Security Strategies
• IP-MAC-Port-VID Binding
• Access Control List (L2~L4 ACL)
• 802.1x and RADIUS Authentication
• Support DoS defend
• Port Security
• SSL and SSH encryptions Management
• Web-based GUI
• Command Line Interface
• SNMP v1/v2c/v3
• RMON (1,2,3,9 group)
• Power Cord
• Quick Installation Guide
• Resource CD
• Rackmount Kit
• Rubber Feet
Lifetime Service and Industry-Leading WarrantyNeed help setting up your TP-LINK device? Our team is here for toll-free technical support, including setup, no matter when you purchased our product. Plus, our limited lifetime warranty gives you peace of mind.
