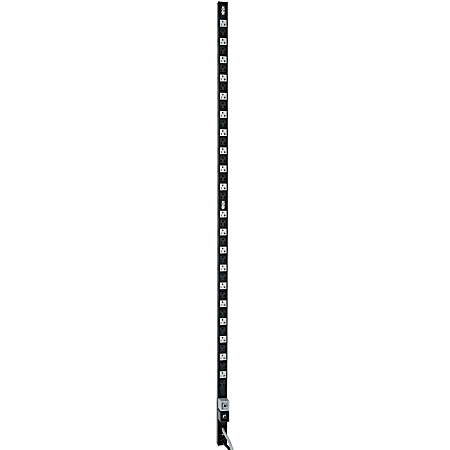

Tripp Lite PDU40TDUAL PDU Basic DUAL 20A 40 Outlet Item # 145050
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The PDU40TDUAL 3.8kW Single-Phase Dual-Circuit 120V Basic PDU works as two independent PDUs in a single housing, perfect for networking, telecom, security, audio/video and sound reinforcement applications. Ideal for high-density network equipment with dual redundant input cables, it features 40 NEMA 5-15/20R outlets split evenly into two separate power circuits.Each power circuit, including its input plug, power cord, breaker and outlets, is color-coded black or grey for easy identification. Both 3.05 m (10-ft.) power cords feature NEMA L5-20P input plugs and come with optional adapters to convert them to NEMA 5-20P plugs, which are not color-coded. Connect the plugs to separate mains input power sources, generators or protected UPS systems to distribute AC power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The 70-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter with user-supplied hardware.
|brand name||Tripp Lite|
|form factor||Vertical Rackmount|
|Input Connectors||2 x power NEMA L5-20|
|Input Receptacles||2 x NEMA L5-20P|
|Input Voltage||120 V AC|
|Output Receptacles||40 x NEMA 5-15/20R|
|Output Voltage||120 V AC|
|package contents||PDU40TDUAL PDU Basic DUAL 20A 40 Outlet; Mounting Hardware; 2 x NEMA L5-20R to NEMA 5-20P Plug Set Adapters; Manual with Warranty Information|
|Power Rating||3800 VA|
|protection type||Overload Protection|
|warranty length||limited lifetime|
|Weight (Approximate)||8 lb|
|Show More ▾|
Two Independent Power Distribution Units in One Housing
|The PDU40TDUAL Dual Circuit Power Distribution Unit gives you the performance and flexibility of two independent, high-current power circuits without the extra expense, space requirements and management demands of two separate PDUs. It features a rugged, all-metal case, 40 5-15/20R outlets, two 10-foot cords with locking L5-20P plugs (2x L5-20R to 5-20P plug adapters included), a switchless design and dual 20-amp circuit breakers that are sleeved to protect against accidental shutoff.|
Unfiltered electrical pass-through makes the PDU40TDUAL ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures, network closets and more.
Color-Coded, Dual Circuit Design
The PDU40TDUAL features two independent 20-amp circuits, each with its own color-coded cord/plug, digital meter, 20-amp circuit breaker and 20-outlet load bank. This makes the PDU40TDUAL ideal for powering servers and networking equipment with dual redundant power supplies or for any application that requires high capacity in a compact form factor.
The PDU40TDUAL is suitable for 0U (vertical) rack installation with included hardware and supports toolless button-mount vertical installation in compatible rack enclosures.
Two-Year Warranty and Environmentally Responsible Design
The PDU40TDUAL comes with a two year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Basic single-phase, dual circuit, 40A, 120V PDU
- Functions as two independent 20A PDU systems in a single housing
- Two 10 ft. / 3 m NEMA L5-20P / 5-20P compatible inputs
- 40 NEMA 5-15/20R outlets (20 per circuit)
- 70 in. / 1778 mm 0U vertical rackmount installation
- Two-year warranty
- PDU40TDUAL 70-inch, Dual Circuit PDU
- Mounting Hardware
- Two NEMA L5-20R to NEMA 5-20P Plug Set Adapters
- Owner’s Manual
