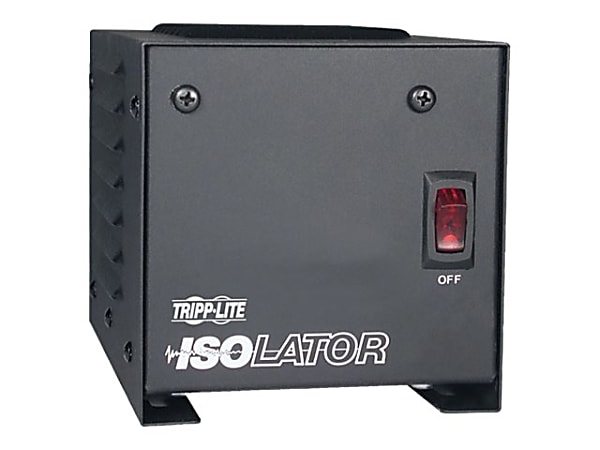

Tripp Lite Isolation Transformer 250W Surge 120V 2 Outlet 6' Cord TAA GSA Item # 145830
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite Isolator series isolation transformers offer complete line isolation, continuous noise filtering and enhanced common mode surge suppression. Internal low-impedance isolation transformer component with Faraday Shield offers 100% isolation from the input AC line. Secondary neutral to ground bonding eliminates common mode noise, providing an isolated ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, background spikes generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at both the line input and transformer output combined with full line isolation offers continuous line filtering of a full range of power line noise in all modes. Active transformer filtering with no wearable parts is uniquely able to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode.Model IS250 offers 250 watts capacity with 2 widely spaced output receptacles, a 6-ft power cord, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for upright tower or wallmount placement in industrial, medical, office or network environment.
|Additional Information||Let-through Voltage (Combination Wave): L-N: <130V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. B; Let-through Voltage (Ring Wave): L-N: <10V L-G: <10V N-G: <0.5V IEEE C62.41 Cat. A; Noise Suppression Rating: 33-65dB normal mode; >80dB common mode; Surge Test Conditions: Per ANSI/IEEE C62.41 - (IEEE587) Cat. A & B test waveforms; Total Harmonic Distortion: Less than 1%; Transformer Type: Low impedence isolation transformer|
|brand name||Tripp Lite|
|Certifications & Standards||UL, cUL|
|color||black - receptacle|
|Compatibility||Point of Sale (POS) Equipment; Telecommunications Systems; Diagnostic Testing and Precise Measurement Devices; Sophisticated CAD/CAM Workstations; Computer Networking Equipment|
|Input Connectors||1 x power NEMA 5-15|
|Input Voltage||120 V AC|
|Maximum Line Current||2.10 A|
|Output Voltage||120 V AC|
|package contents||IS250 Isolation Transformer System; Instruction manual with warranty information|
|Plug/Connector Type||NEMA 5-15P|
|Power Cord/Cable Length||6 ft|
|Power Handling||250 VA|
|Product Name||IS250 Isolation Transformer System|
|Receptacles||2 x NEMA 5-15R|
|Surge Energy Rating||680 J|
|warranty length||2-year limited|
|Show More ▾|
