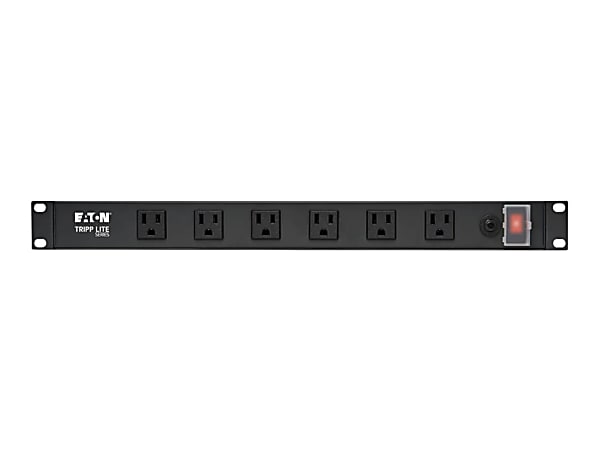

Tripp Lite 1U Rack-Mount Power Strip with 12 Right-Angle Outlets Item # 146450
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's RS-1215-RA Power Strip offers 15-amp capacity AC power distribution in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wall mount and under-counter installation. The device uses only 1 rack space (1U) when installed in any 19-inch rack meeting EIA standards. Unfiltered electrical pass-through makes RS-1215-RA ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. The product includes 12 NEMA5-15R outlets (6 front / 6 rear) placed at a right angle (with ground pin at bottom), 15 ft AC power cord and lighted switch with cover prevents risk of accidental turn-off.
|Additional Information||Form factors supported: Rackmount, wall-mount and undercounter installation; Switches: Red illuminated 2 positon switch controls power to all outlets; Locking switch cover: Transparent locking switch cover prevents accidental shutoff; TVSS grounding: Back panel nut and bolt grounding lug|
|brand name||Tripp Lite|
|Certifications & Standards||UL1363; cUL|
|color||black body; black receptacle; black line cord|
|Frequency Provided||60 Hz|
|Input Connectors||1 x power NEMA 5-15|
|Input Voltage||120 V AC|
|Maximum Frequency||60 Hz|
|Maximum Input Current||15 A|
|Maximum Output Voltage||120 V AC|
|package contents||Power Strip 120V AC; RS-1215-RA 1U Rackmount Power Strip; Instruction Manual with Warranty Information|
|Plug/Connector Type||NEMA 5-15P|
|Receptacles||12 x NEMA 5-15R|
|warranty length||limited lifetime|
|Show More ▾|
All Metal 12 (Right-Angle) Outlet Power Strip Guaranteed to Last For Life
Always have available outlets in your rack with Tripp Lite’s RS-1215-RA rackmount power strip. The RS-1215-RA provides 12 (6 front and 6 rear) right-angle NEMA 5-15 outlets in a rugged, all-metal 1U housing guaranteed to last for life. The outlets are placed at a right angle to accommodate bulky transformers. The included mounting hardware allows for 1U or 0U (vertical) rackmount, wall-mount, under-counter and other installations, making the RS-1215-RA ideal for a variety of uses including back office, network cabinet, and network closet applications. With the extra length provided by the 15-ft. power cord, you don’t have to install the RS-1215-RA next to outlets you already have; it can be mounted in any rack position or across the room and deliver reliable service where you need it most. A lighted and covered On/Off switch helps prevent accidental shut offs, while a 15-amp circuit breaker guards against dangerous circuit overloads before they happen. Additionally, every Tripp Lite power strip comes with a Lifetime Warranty for guaranteed peace of mind.
With rackmount, wall-mount, under-counter and other creative installation options, a rugged housing and plenty of outlets, Tripp Lite's RS-1215-RA is ideal for back office, network cabinet and network closet applications. It provides reliable, unfiltered, alternate waveform electrical pass-through, making it ideal for power distribution from a UPS or generator to supported equipment. Tripp Lite's 1U power outlet strips can also be used in server rooms and large-scale data centers in standard 19-inch racks or with 0U (vertical) mounting. The included hardware allows the RS-1215-RA to be installed wherever reliable, multi-outlet power distribution is required.
Featuring 12 outlets compatible with all standard rackmount equipment, the RS-1215-RA is an ideal solution for applications or locations that require power to many devices simultaneously. The unit's outlets are placed at right angles in order to accommodate even the bulkiest of transformers with ease.
Power Previously Un-Powered Areas with Extra-Long Cord
Install the RS-1215-RA far away from its power source and provide power distribution to previously un-powered areas with the extra long, 15-ft. power cord. The RS-1215-RA can be mounted in a different area, or a completely different room, from where it draws AC power, putting you in control of getting reliable power service where you need it most.
The lighted On/Off switch features a translucent cover that eliminates accidental shut offs while still allowing you to see whether the RS-1215-RA is operational with a glance. A built-in, 15-amp circuit breaker prevents dangerous circuit overloads that could damage equipment. The breaker immediately shuts off AC input to the RS-1215-RA when it detects that the equipment load is drawing too much power. The RS-1215-RA’s rugged, all-metal housing is durably constructed making it a great solution for all rackmount installations.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
