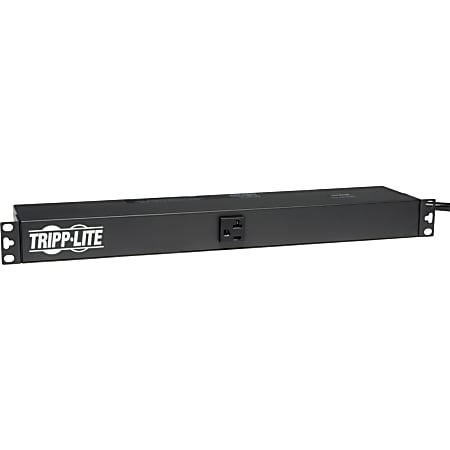

Tripp Lite PDU1220 Basic Power Distribution Unit Item # 146595
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's PDU1220 AC power distribution unit offers 20 amp, 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter or 1U/0U rackmount installation. Uses only 1 rack space (1U) when installed in any 19 inch rack, with the potential for 0U mounting in the cable management area of most rack enclosures. Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes. Attractive housing with all rear-facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes PDU1220 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets and more. Includes 12 rear-facing outlets and one front-facing, 15 ft AC power cord, 20 amp circuit breaker, grounding lug and rugged all-metal case design.
|Additional Information||Corded AC power distribution unit with 20 amp capacity and 13 AC receptacles; Versatile all-metal cabinet with detachable mounting flanges allows wallmount, under-counter and 19 inch rackmount mounting in both 1U or zero-U formats; Detachable flanges with pre-punched access holes and adjustable depth channels allow user configuration in dozens of potential mounting schemes, including zero-U rackmount capability in the cable management area or other available space within a rack enclosure|
|brand name||Tripp Lite|
|Certifications & Standards||cUL, UR|
|Compatibility||TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment|
|Input Connectors||1 x power NEMA 5-20|
|Input Voltage||120 V AC|
|Number of Cord/Cable||1|
|Output Receptacles||13 x NEMA 5-20R|
|Output Voltage||120 V AC|
|package contents||PDU1220 PDU Basic 120V 20A 13 Outlet; PDU1220 Rackmount Power Strip; Warranty information; Instruction Manual|
|warranty length||5-year limited|
|Show More ▾|
Distribute Power to Multiple Loads Dependably and Affordably
|With a 1U horizontal rackmount design, Tripp Lite’s PDU1220 Basic Power Distribution Unit powers multiple loads in rack applications. It has unfiltered electrical pass-through to distribute alternate waveform utility, UPS or generator power to your rackmount equipment. The rugged all-metal housing is reversible to face the front or back of the rack.|
The PDU1220 provides reliable 120V power service via 13 5-15/20R outlets; one outlet is front-mounted and 12 are rear-mounted for flexibility when connecting equipment. An extra-long 15 ft. cord with 5-20P plug offers added convenience. Load capacity is 2.4kW.
Versatile Installation Options
It’s easy to integrate the PDU1220 with a wide range of network and industrial applications. Detachable flanges with access holes and adjustable-depth channels allow you to configure this PDU for dozens of mounting schemes, including 1U installation in standard 19-inch rack enclosures as well as wall-mount, workbench and under-counter installations. With an optional PDUSIDEBRKT accessory (sold separately), the PDU1220 is suitable for 0U vertical installation in the cable management area of many rack enclosures.
The PDU1220’s switchless design prevents accidental shutoff and safeguards against downtime due to human error. Additionally, a 20A circuit breaker protects against overloads by immediately shutting off AC input when it detects that connected equipment is drawing too much power.
5-Year Warranty and Environmentally Responsible Design
The PDU1220 comes backed by a 5-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Reliable power distribution in telecom, audio/video, security and other high-density IT applications
- Configurable for 1U or 0U (vertical) rackmount installation
- All-metal, reversible housing with 13 outlets and 15 ft. cord
- Switchless design prevents accidental shutoff while a 20A circuit breaker provides overload protection
- Includes back panel grounding lug
- Mounting flanges support installation in 2- and 4-post racks with additional support for wall-mount and under-counter installations
- 5-year warranty
What’s in the Box
PDU1220 Basic Power Distribution Unit
