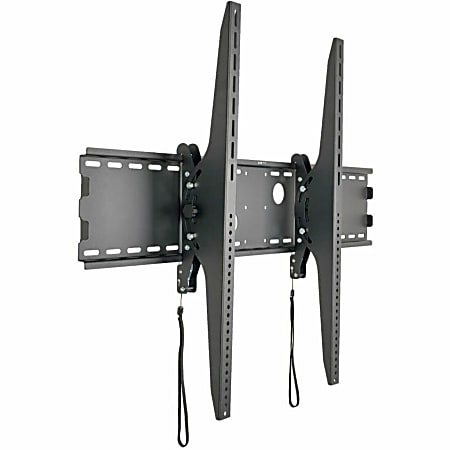

Tripp Lite Display TV LCD Wall Monitor Mount Tilt 60" to 100" TVs / Monitors / Flat-Screens Item # 147293
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's VESA-compliant DWT60100XXTilt Flat-Screen Wall Mount's low-profile design features an open frame for easy wall access and optimal flexibility for display positioning, allowing you to effortlessly reposition your display at any time, even after installation. It is ideal for freeing up valuable space in your workstation. The DWT60100XX packs a lot of functionality into an unobtrusive frame. It has a tilt adjustment with a wide range of motion (-15° to 15°) for improved viewing angles in applications where the audience is located below the display. Its durable, all-metal construction with scratch-resistant, powder-coat finish supports up to 350 lbs. and fits most 60" to 100" flat-screen displays. It comes with all the necessary mounting hardware. To help you install it perfectly, the DWT60100XX features a horizontal adjustment to compensate for off-center wall studs.
|brand name||Tripp Lite|
|Device Supported||Flat Panel Display|
|Features||Tilt; Horizontal Adjustment; Adjustable Viewing Angle; Durable; Scratch Resistant|
|Maximum Load Capacity||350 lb|
|maximum screen size supported||100"|
|Minimum Screen Size Supported||60"|
|Number of Displays Supported||1|
|package contents||Tilt Wall Mount for 60" to 100" Flat-Screen Displays; Mounting Hardware; Owner's Manual|
|VESA Mount Compatible||Yes|
|VESA Mount Standard||400 x 200; 400 x 400; 600 x 400; 800 x 400; 800 x 600; 1000 x 400; 1000 x 600; 200 x 200; 1000 x 800|
|warranty length||5-year limited|
|Show More ▾|
Low-Profile, Tilt Wall Mount for 60” to 100” Flat-Screen Displays
|Mount large displays to your wall and have the ability to adjust the viewing angle after installation. Tripp Lite’s DWT60100XX Flat-Screen Tilt Wall Mount fits most 60- to 100-inch flat-panel displays that weigh up to 350 lb. This VESA-compliant mount has tilt adjustment to optimize views for audiences located below the display. The open-frame design provides easy wall access and low-profile mounting keeps the mount hidden for a sleek, professional appearance.|
The DWT60100XX features convenient one-touch display adjustment. It has a -15° to +15° tilt range to minimize glare, provide comfortable viewing angles and reduce viewer fatigue. The tilt adjustment improves viewing angles in applications where the audience is below the display. Horizontal adjustment compensates for off-center wall studs.
Durable Construction Supports Up to 350 lb.
The DWT60100XX has a durable, all-metal frame that supports displays weighing up to 350 lb. and withstands the stress of repeated adjustments. The frame has a powder-coated finish to resist scratches.
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing standards for products such as flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns on the backs of the products. The DWT60100XX is guaranteed to work with VESA-compliant displays with hole patterns of 200 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 400 mm, 800 mm x 400 mm, 800 mm x 600 mm, 1000 mm x 400 mm, 1000 mm x 600 mm and 1000 mm x 800 mm. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display’s owner’s manual.
The DWT60100XX comes with all the hardware you need for installation. Mounting fasteners are included for installation on walls with timber or masonry construction, including wooden studs, cinder blocks, bricks and concrete.
5-Year Warranty and Environmentally Responsible Design
The DWT60100XX comes backed by a 5-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Mount large displays for audience viewing
- Fits most 60- to 100-inch flat-panel displays
- Supports up to 350 lb.
- Low-profile design keeps mount hidden for a sleek, professional appearance
- Wide range of motion with -15° to +15° tilt range
- Compatible with VESA-compliant displays with hole patterns from 200 mm x 200 mm to 1000 mm x 800 mm
- Included mounting hardware
- 5-year warranty
Tilt Wall Mount for 60- to 100-Inch Flat-Screen Displays
Cardboard Installation Template
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
