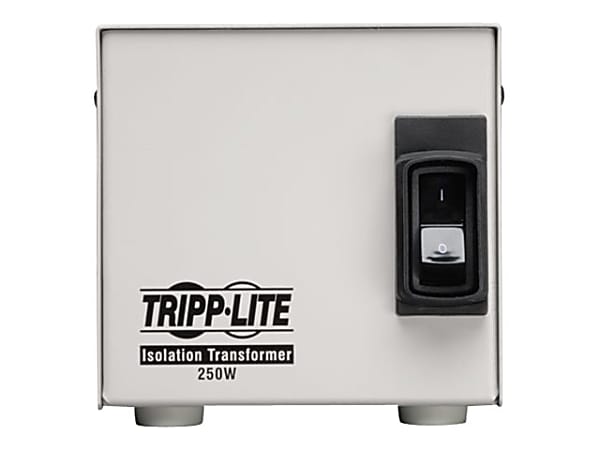

Tripp Lite 250W Isolation Transformer Hospital Medical with Surge 120V 2 Outlet HG TAA GSA Item # 147365
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite Isolator series UL2601-1 listed Hospital Grade isolation transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. Internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL2601-1 medical grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas. Isolation transformer with Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels below 300 microamps. Secondary neutral to ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offers continuous filtering of a full range of power line noise in all modes. Active transformer filtering offers continuous common-mode noise rejection with no wearable parts, uniquely able to reduce surges in the worst of power environments to harmless levels. It reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS250HG includes 2 widely spaced NEMA5-15R hospital grade output receptacles, a 6-ft power cord, hospital grade input plug, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for placement in any industrial, medical, office or network environment.
|Additional Information||Transformer Type: Medical grade, low impedance transformer-based line isolation transformer; Removes EMI/RFI noise, utility switching transients, load-generated harmonics and ground loops; Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode; Suppression Joule Rating: 680 (510 input/170 output); Leakage Current: As low as 100 microamps; Noise Suppression Rating: 35 to 65 DB; Total Harmonic Distortion: less than 1%; Cooling method: Convection|
|brand name||Tripp Lite|
|Certifications & Standards||cUL; UL 2601-1; UL (UL Series AGIS250YWN)|
|Frequency Provided||60 Hz|
|Input Connectors||1 x power NEMA 5-15|
|Input Receptacles||1 x NEMA L5-15P|
|Input Voltage||120 V AC|
|Input Voltage Range||120 V AC Nominal|
|Output Receptacles||2 x NEMA 5-15R|
|Output Voltage||120 V AC Nominal|
|package contents||IS250HG; IS250HG Isolation Transformer; Instruction manual with warranty information|
|Power Cord/Cable||6 ft|
|Power Rating||250 VA|
|Product Name||Isolator IS250HG Isolation Transformer|
|warranty length||2-year limited|
