Tripp Lite PDUMH15AT Metered Auto Transfer Switch Item # 149475
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
|brand name||Tripp Lite|
|Certifications & Standards||60950; Class A; RoHS Compliant|
|Frequency Provided||50/60 Hz|
|Input Connectors||2 x power NEMA 5-15|
|Input Receptacles||2 x NEMA 5-15P|
|Input Voltage||120 V AC|
|Management||Optional Automatic Transfer Switch (ATS) function enables for hot-swappable UPS maintenance bypass; Dual UPS protection or dual AC input redundancy for critical single-corded network hardware; Slot for optional SNMPWEBCARD accessory to enable remote individual outlet control over IP|
|Output Receptacles||8 x NEMA 5-15R|
|Output Voltage||120 V AC|
|package contents||PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet; PDU with attached 5-15P input power cord; Detachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary input; User Manual With Warranty Information|
|Power Rating||1800 VA|
|warranty length||2-year limited|
|Weight (Approximate)||11 lb|
|Show More ▾|
Single Phase ATS Metered PDU 120V

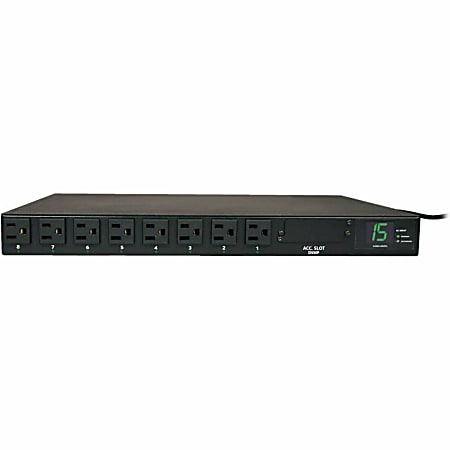

|Do you need an efficient, cost-effective way to distribute, monitor and manage power in an IT or industrial environment? Tripp Lite's PDUMH15AT Metered Power Distribution Unit with ATS is the solution you seek! It provides eight outlets plus a digital meter that displays continuous power consumption, enabling IT personnel to monitor the PDU's load on site. Optional integrated automatic transfer switching capability enables dual AC input redundancy for critical network hardware, hot-swappable UPS maintenance bypass or dual UPS protection. The PDUMH15AT is also equipped with a built-in SNMPWEBCARD slot, enabling it to be permanently upgraded to a switched PDU. The PDUMH15AT features an all-metal housing and a switchless design to prevent accidental shutoff. It is suitable for 1U or 0U (vertical) rackmount installation as well as wall-mount, workbench, under-counter and similar installations.|
The PDUMH15AT is optimized for reliable distribution of alternate waveform AC power from a UPS system, generator or utility wall outlet to supported equipment in IT environments. It provides eight 5-15R outlets and dual 12-ft. cords (one attached, one detachable) with standard 5-15P plugs. The PDUMH15AT features a rugged all-metal case, high-quality outlets and plugs and a switchless design to prevent accidental shutoff. Unfiltered electrical pass-through makes the PDUMH15AT ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more.
Integrated Auto-Transfer Switching
The PDUMH15AT features optional integrated automatic transfer switching (ATS) capability to provide a redundant power option for networking and server applications with non-redundant internal power supplies. In ATS mode, the attached power cord delivers primary input power and the included detachable power cord provides secondary input power. If primary power becomes unstable or fails, the PDU automatically performs a super-fast (2-7 milliseconds) switchover to the secondary power source. Front-panel input LEDs indicate primary or secondary power availability.
ATS functionality makes the PDUMH15AT ideal for adding redundancy to single-corded devices. When used with a single UPS system, it provides fault-tolerant hot-swappable UPS protection for applications requiring zero downtime. When each of its power cords is connected to a separate UPS system, the PDUMH15AT provides fully redundant, zero-downtime UPS protection.
Digital Current Meter
The PDUMH15AT is equipped with a digital LED meter that displays the total connected equipment load. This meter enables IT personnel to monitor the total load on the PDU in real time, allowing more equipment to be safely connected with no danger of overloading the PDU or power supply circuits. This helps to assure proper load balance in complex redundant power applications.
A built-in SNMPWEBCARD slot enables the PDUMH15AT to be permanently upgraded to a switched PDU with full network power monitoring and individual outlet control capability. With an SNMPWEBCARD installed, the PDUMH15AT can also be custom programmed for power-on and power-off sequences with user-specified time delays in response to loss and restoration of primary input power.
Optimized for Demanding Applications
The PDUMH15AT is designed for reliable distribution of AC power to supported equipment in IT, industrial and similar applications. It features a rugged all-metal case, high-quality outlets, a 15A circuit breaker and a switchless design to prevent accidental shutoff.
The PDUMH15AT is easy to integrate with a wide range of data center and network applications. It is suitable for 1U installation in standard 19-inch rack enclosures as well as wall-mount, workbench, under-counter and similar installations.
2-Year Limited Warranty
The PDUMH15AT comes with a 2-year warranty, and extended warranties are available. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Tripp Lite's PDUMH15AT Product Summary
- Automatic transfer switching (ATS) to provide a redundant power option
- Digital meter for on-site monitoring of total PDU load
- Upgradable to switched PDU with optional SNMPWEBCARD
- Configurable for 1U or 0U (vertical) rackmount installation
- 2-year warranty
- ATS / Metered PDU with attached 5-15P primary input cord
- Detachable C13 to NEMA 5-15P 12 ft / 3.6m secondary input cord
- 1U rackmount installation brackets
- User manual with warranty information
