Tripp Lite PDUMH20ATNET PDU Switched 16 Outlet Item # 149850
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
|brand name||Tripp Lite|
|Certifications & Standards||60950; Class A; TAA Compliant|
|Frequency Provided||50/60 Hz|
|Input Connectors||2 x power NEMA 5-20, power NEMA L5-20|
|Input Receptacles||2 x NEMA L5-20P|
|Input Voltage||120 V AC|
|Management||Integrated Automatic Transfer Switch (ATS) allows PDU to operate from secondary input source when primary input fails; Sequential outlet power-on prevents inrush-related equipment interaction on startup; Programmable or real-time monitoring and outlet power control via secure web/network interface|
|Number of Cord/Cable||2|
|Output Receptacles||16 x NEMA 5-15/20R|
|Output Voltage||120 V AC|
|package contents||PDUMH20ATNET PDU Switched ATS 120V 20A 16 Outlet; PDU with attached L5-20P input power cord; Detachable C19 to NEMA L5-20P 12 ft/3.6m power cord for optional secondary input; Two NEMA L5-20R to NEMA 5-20P plug adapters; User Manual With Warranty Information|
|Power Rating||2.40 kVA|
|warranty length||2-year limited|
|Show More ▾|

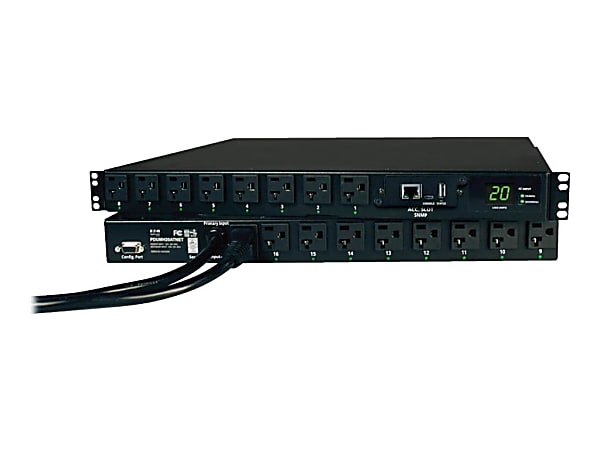

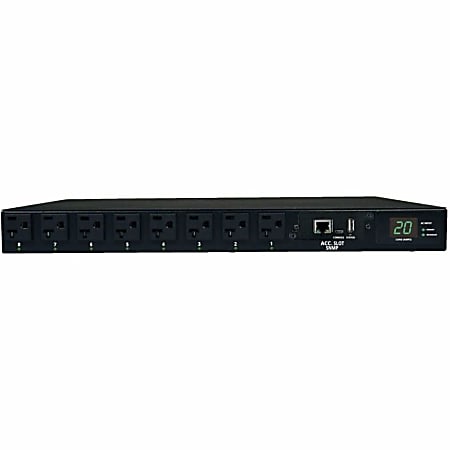

PDU Switched ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal
Tripp Lite's PDUMH20ATNET Switched/Metered PDU with ATS is the ideal choice for distributing and managing power in high-density IT environments. Featuring a built-in SNMPWEBCARD, the PDUMH20ATNET provides full remote power monitoring and control via a secure network or web browser interface. The PDUMH20ATNET can monitor and report input power status, output power, PDU load conditions and more. Its 16 5-20R outlets are individually controllable to enable load shedding, load ramping and remote rebooting of locked-up servers and other network devices. To prevent inrush-related equipment interaction at startup, the outlets are programmed for sequential activation. A digital meter is also provided, enabling the PDU's load to be monitored on site.
The PDUMH20ATNET also provides integrated automatic transfer switching (ATS). Should the primary power source become unavailable or unstable, ATS will switch the PDU to the secondary power source until primary power is restored and stable. ATS capability makes the PDUMH20ATNET an ideal choice to distribute power in mission-critical, zero-downtime applications. The PDUMH20ATNET is configurable for 1U rackmount installation with included hardware, and is also suitable for 0U vertical installation in the cable management area of many rack enclosures. The PDUMH20ATNET is further optimized for IT features an all-metal housing and a switchless design to prevent accidental shutoff.
Built-In Network InterfaceThe PDUMH20ATNET provides IT personnel with enhanced oversight of network power conditions. It features a built-in SNMPWEBCARD that enables full remote power monitoring and control via a secure network or web browser interface. The PDUMH20ATNET can monitor, report and log input/output power status, PDU load conditions and more. These capabilities simplify and streamline the task of network power management.
Remote Outlet ControlThe PDUMH20ATNET's sixteen outlets are individually controllable via network or web browser interface, providing a higher level of network power control. These controllable outlets enable power management tasks such as load shedding, load ramping and rebooting of locked-up network devices to be performed remotely. To prevent inrush-related equipment interaction at startup, the outlets are factory-programmed for sequential activation at 250-millisecond intervals when the PDUMH20ATNET is energized.
Automatic Transfer Switching (ATS)With its integrated ATS capability, the PDUMH20ATNET is the ideal power distribution solution for mission-critical, zero-downtime applications. Should the primary power source become unavailable or unstable, ATS will switch the PDU to the secondary power source until primary power is restored and stable. Two 12-ft. power cords with L5-20P locking plugs are provided: an attached cord to serve as the primary input and a detachable cord to serve as the secondary input. (Two plug adapters are also provided for connection to standard 5-20R outlets.) The switchover from primary to secondary power occurs within 2-7 milliseconds, minimizing the effect on connected equipment.
The PDUMH20ATNET is easy to integrate with a wide range of data center and network applications. It is configurable for 1U rackmount installation with included hardware, and is also suitable for 0U vertical installation in the cable management area of many rack enclosures. The PDUMH20ATNET is further optimized for reliable service in IT applications with a rugged all-metal case, high-quality outlets and plugs, and a switchless design to prevent accidental shutoff.
2-Year Warranty and Environmentally Responsible Design
The PDU3VN3L2130 comes backed by a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosure cabinets, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
