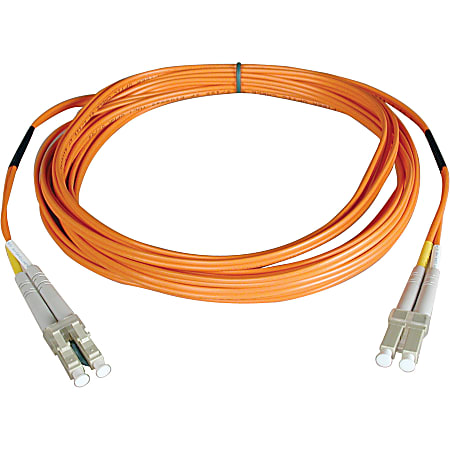

Tripp Lite 7M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/LC 23' 23ft 7 Meter Item # 152865
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's 7-meter multimode duplex Fibre Channel optic LC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has LC connectors on each end. It has a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and provides built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in lengths up to 152 meters. Enter "N520-" in the search field to bring up all lengths. For LC-SC cables, search "N516-", and for SC-SC, search "N506-".
|Additional Information||Fiber type: all glass graded index; Core diameter: two 50+/-3 microns; CLAD diameter: 125+/-2 microns; Primary Coating Diameter: 245+/-15 microns; Primary coating material: acrylate; Secondary coating diameter: 900+/-50 microns; Attenuation @ 850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum; Bandwidth @ 850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum; Numerical Aperture: .275 nominal; Proof test level: 100,000 PSI|
|brand name||Tripp Lite|
|Cable Characteristic||Patch Cable|
|cable type||Fiber Optic|
|Certifications & Standards||FDDI Rated; OFNR Rated|
|Connector||2 x LC multi-mode - male|
|Connector (Second End)||2 x LC multi-mode - male|
|Connector on First End||2 x LC Male|
|Connector on Second End||2 x LC Male|
|Core / Cladding Diameter||50 / 125 micron|
|Core/Cladding Diameter||50/125 µm|
|material||Polyvinyl Chloride (PVC) - Jacket|
|package contents||Fiber Optic Duplex Patch Cable; 7-meter duplex MMF cable LC/LC 50/125 fiber|
|Type of Fiber Optics||Multimode|
|warranty length||limited lifetime|
|Show More ▾|
Duplex MMF 50/125 23 ft. Fiber Patch Cable with LC/LC Connectors
|Don't settle for less than the best—enjoy better signal quality and faster transmission! Tripp Lite's N520-07M fiber cable assures peak performance throughout your local area network application. Unlike cut-price cables, the N520-Series is manufactured to exacting specifications, using superior materials, for a difference you can clearly see in your application. And we back our pledge of quality with a lifetime product warranty.|
The Smart Solution for Local Area NetworksThis genuine Tripp Lite N520-07M fiber optic cable is the ideal solution for networks in need of fast, clear signal transmission up to the latest in industry standards. With attenuation loss that meets or exceeds current standards, fiber made from glass instead of polymer and documented insertion loss testing on every connector, Tripp Lite's fiber optic patch cables are ideal for high-density, demanding network applications. The N520-Series comes in lengths from one to 152 meters to fit a variety of installations.
The N520-07M comes with widely compatible dual LC connectors that are thoroughly tested to ensure they meet Tripp Lite's stringent insertion loss standards. The connectors' edges are also beveled and color coded for easy and secure connection throughout your network. The N520-Series is optimized for gigabit and 10 Gbps networks and is also backward compatible with 62.5 micron fiber.
Superior Quality Assures Error-Free Signal TransferThe N520-07M is manufactured using top quality materials. With 50/125 duplex fiber, a FDDI and OFNR-rated PVC jacket, sturdy connectors and fiber made from glass instead of a polymer, Tripp Lite's fiber optic cables are made to last in high-demand data center and networking applications. The N520-Series is compliant with RoHS (Reduction of Hazardous Substances) standards, reflecting Tripp Lite's commitment to environmental responsibility.
Lifetime Product Warranty
When you choose this genuine Tripp Lite cable, you get superior performance plus peace of mind! We're so confident of the quality of the N520-07M that we warrant it to be free from defects in material and workmanship—for life!
