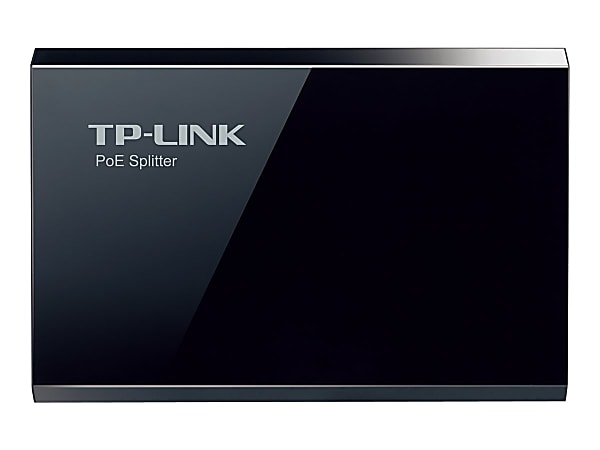

TP-LINK PoE Splitter
This item is in your cart

TP-LINK PoE Splitter

Item # 160618 OfficeMax # 24025555
Your Price
$14.99 $14.99
/ each
Protect your investment  Learn More
No Protection
2-Year Product Replacement Plan, Includes Coverage For Accidental Drops & Spills, $0-$49.99
$7.99
$7.99 7.99
  • Quantity

In Stock

  • Estimated delivery 3-5 business days
Pricing, Assortment and Availability

    The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

    Back to Menu

    Item # 160618
    Manufacturer # GD6417
    Compatibility IP Cameras; IP Phones; TP-LINK TL-SF1008P Desktop PoE Switch; TP-LINK TL-WA601G 108M Wireless Access Point; TP-LINK TL-SF1008D 10/100M Desktop Switch
    brand name TP-LINK
    Output Ports 1 x RJ-45 10/100Base-TX
    height 0.9"
    Output Voltage 12 V DC; 15 V DC
    width 3.2"
    depth 2"
    Product Name TL-POE10R Power over Ethernet Splitter
    Input Ports 1 x RJ-45 10/100Base-TX
    Product Type PoE Splitter
    manufacturer TP-LINK Technologies Co., Ltd
    model name TL-POE10R

    Back to Menu

    Back to Menu

    Back To Top

    From the Manufacturer|Powered by Answers™

    Thank You Is the information in this section helpful? Yes / No

    Overview

    • What This Product Does

      The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

    Features

    • IEEE 802.3af compliant
    • Delivers power up to 100 meters
    • Optional 12V DC 9V DC or 5V DC power supply
    • Plug-and-Play, requires no configuration

    Specifications

    HARDWARE FEATURES
    Interface1 10/100 RJ45 Port
    AUTO Negotiation/AUTO MDI/MDIX
    Network Media
    10BASE-T: UTP category 3, 4, 5 cable
    (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable
    (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    LED Indicator
    PWR
    Dimensions( W x D x H )
    3.2*2.0*0.9 in.(81*52*24 mm)
    Power Supply
    12W (12VDC)
    9W (9VDC)
    10W (5VDC)
    SOFTWARE FEATURES
    Basic Function
    Compatible With IEEE 802.3af Compliant PSEs
    Delivers Power Up To 100 Meters
    Optional 12vdc Or 5vdc Power Supply
    OTHERS
    CertificationCE, FCC
    EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing

    Package Content

    •  TL-POE10R PoE Splitter
    • One Ethernet (CAT.5 UTP) Cable
    • One Power Cable
    • User Guide

    Compatibility

    • Work with Windows, Mac and Linux.

    Warranty

    • 2-Year Warranty
