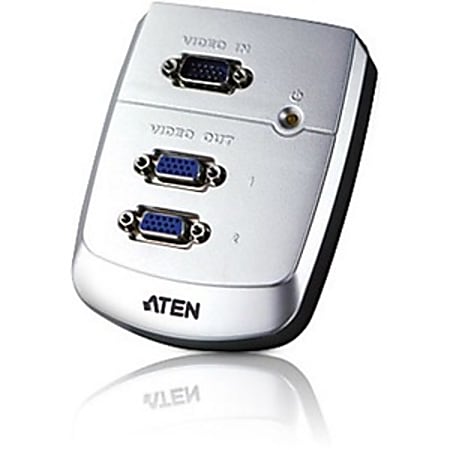

Aten VS82 2-port VGA Video Splitter Item # 195385
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The VS82 video splitter is not a "Y" connection in a box, but rather an active device performing two functions: (1) it reproduces a video signal from a single source into multiple outputs, and (2) it boosts the signal so it can be transmitted over longer distances without signal degradation.Comparing the input signal to the out put signal with advanced video signal test equipment, ATEN's VS82 exhibits excellent performance characteristics on DC offset and white level tests. These results provide measurable proof that the VS82 represents the truest color reproduction possible from original signal input to multi signal outputs.ATEN's Video Signal Enhancement (VSE), technology automatically compensates the output video signal making allowances for the distance between the VS82's output and the monitor's input, thereby delivering optimal signals for use by your monitors.
|Graphics Modes||VGA; XGA; SVGA; UXGA|
|Input Voltage||9 V DC|
|Maximum Operating Distance||210 ft|
|Maximum Video Bandwidth||190 MHz|
|Maximum Video Resolution||1600 x 1200|
|Number of Displays Supported||2|
|Number of Input Devices Supported||1|
|package contents||VS82 2-port VGA Video Splitter; 1 x VGA cable (6 ft.); 1 x Power Adapter; 2 x Screw|
|Power Consumption||1.35 W|
|Product Name||VS82 2-port VGA Video Splitter|
|Show More ▾|
