Tripp Lite 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Cable Item # 235947
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's N820-12M is an OM3 Laser-Optimized Multimode Fiber (LOMMF) "Aqua" cable, for use with 10Gb Ethernet applications. 50/125um, LC/LC Fiber Optic cables provide nearly three times the bandwidth over conventional 62.5um multimode fiber, with performance rivaling that of Single mode cable, at a much reduced cost. LOMMF cable allows 10Gb serial transmission over extended distances in the 850nm wavelength window, where low-cost Vertical Cavity Surface Emitting Lasers (VCSELs) enable a cost-effective, high-bandwidth solution. LOMMF is ideally suited for LAN's, SAN's, and high-speed parallel interconnects for head-ends, central offices, and data centers.
|brand name||Tripp Lite|
|Cable Characteristic||Patch Cable|
|cable type||Fiber Optic|
|Connector||2 x LC multi-mode - male|
|Connector (Second End)||2 x LC multi-mode - male|
|Connector on First End||2 x LC Male IEEE 802.3ae|
|Connector on Second End||2 x LC Male IEEE 802.3ae|
|Core / Cladding Diameter||50 / 125 micron|
|Core/Cladding Diameter||50/125 µm|
|Fiber Optic Mode||Multi-mode|
|Type of Fiber Optics||Multimode|
|Show More ▾|

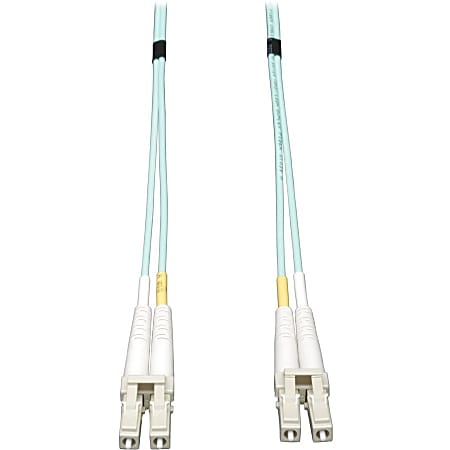

12m (39 ft.) 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/LC), Aqua
|Tripp Lite’s 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable ensures fast, clear signal transmission throughout your local area network. Designed for 10Gb Ethernet applications, the N820-12M is OM3 rated to support 40GBASE-SR4 and 100GBASE-SR10 in applicable parallel optics networks. It’s backward compatible with existing 50/125 fiber and meets the most current industry standards, including IEEE 802.3ae and TIA LOMMF. This cable is commonly used with vertical-cavity surface-emitting lasers (VCSELs) and LED laser light sources in local area and storage area networks.|
The N820-12M has dual LC/LC connectors that are widely compatible and thoroughly tested to meet stringent insertion loss standards. The connectors are color coded and have beveled edges for a secure connection.
Superior Quality for Error-Free Signal Transmission
The N820-12M is manufactured using top-quality materials. It has 50/125 duplex (zipcord) fiber made from glass instead of a polymer, a low-smoke zero-halogen (LSZH) jacket and sturdy LC/LC connectors. The low-smoke zero-halogen jacket limits the amount of toxic smoke emitted in case of combustion and is perfect for poorly ventilated areas. The jacket is aqua to identify the N820-12M as a 10Gb cable.
For peace of mind, the N820-12M comes backed by a lifetime warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
What’s in the Box
- 12m (39 ft.) 10Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable (LC/LC), Aqua
- Premium multimode fiber optic cabling for
transmitting data and voice signals over short distances
- 10Gb Ethernet speed
- Use with VCSEL and LED laser light sources
- Manufactured from 50/125 duplex glass fiber (not a polymer) with a low-smoke zero-halogen (LSZH) aqua jacket
- Features LC/LC connectors
- Nearly three times the bandwidth of conventional 62.5 fiber (OM1)
- Lifetime warranty
