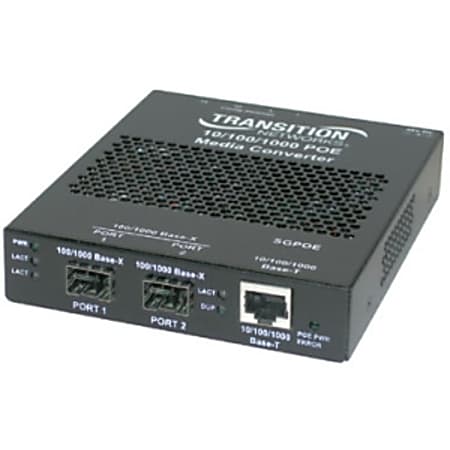

Transition's AC powered PoE media converters combine data received over a fiber optic link with - 48VDC power; providing power to data terminal equipment power devices over unshielded twisted pair cable. The PoE converters are power sourcing equipment and are fully compatible with powered devices (PD) that comply with the IEEE802.3: 2003af standard.The PoE converter is fully compatible with devices that comply with the IEEE802.3af standards as well as select legacy PD's. The PoE converter is capable of inserting power on data pairs or spare pairs of the MDI.
|brand name||Transition Networks|
|Certifications & Standards||EN55022:1994+A1:1996+A2:1997 Class A; FCC Part 15 Subpart B; UL 1950; IEEE Standards:802.3; 802.3u; 802.3ab; 802.3af|
|Environmental Certification||RoHS; WEEE|
|Fiber Mode Supported||Multi-mode|
|form factor||Wall Mountable; Rack-mountable; Rail-mountable|
|Input Voltage||48 V DC|
|manufacturer||Transition Networks, Inc|
|Maximum Distance Supported||1804.46 ft|
|Media Type Supported||Twisted Pair|
|Network Technology||10/100/1000Base-T; 1000Base-SX|
|ports||1 10/100/1000 Ethernet (RJ-45); 1 LC; 1 Power over Ethernet (PoE, RJ-45)|
|Power Over Ethernet (PoE)||PoE|
|Total Number of Ports||2|
|warranty length||limited lifetime|
