This item is no longer available

Shop our Deal Center.

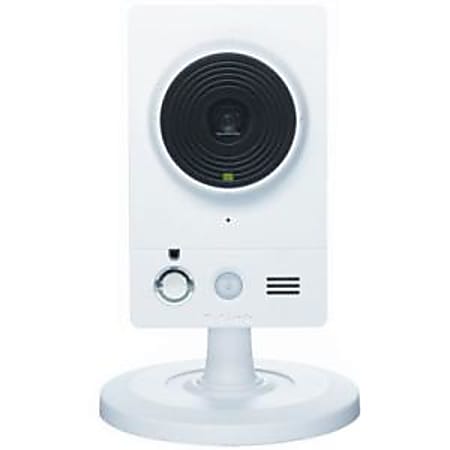

D-Link DCS-2210 2 MP Full HD Cube PoE IP Camera Item # 286580

    The DCS-2210 is a versatile surveillance solution that is perfect for monitoring low-light environments in your home or small office. It combines a high-resolution 2 Megapixel sensor with a built-in IR LED to help you keep watch over areas in complete darkness. The DCS-2210 also includes a built-in IR cut filter, making it suitable for both day and night applications. Additionally, the DCS-2210 is a complete system with a built-in CPU and web server that transmits high quality video images for security and surveillance. Simple installation and an intuitive web-based interface offer easy integration with your Ethernet network. The DCS-2210 also comes with remote monitoring and motion detection features for a complete and cost-effective home security solution.

    Back to Menu

    Item # 286580
    Manufacturer # LK9489
    Ethernet Technology Fast Ethernet
    Color Supported Color
    height 3.7"
    Focus Modes Fixed Focus
    Certifications & Standards CE; CE LVD; FCC (Class B); ICES-003; C-Tick
    Features Built-in IR LED; Built-in Mechanical ICR; Day/Night; Motion Detection; Built-in Microphone; Built-in Speaker; Built-in Infrared Illuminator; Privacy Masking; SD Card Local Storage
    Remote Management Yes
    video formats Motion JPEG; MPEG-4
    Connectivity Technology Cable
    Protocols TCP/IP; UDP; ICMP; DHCP; NTP; DNS; DDNS; SMTP; FTP; HTTP; HTTPS; PPPoE; UPnP; RTP; RTSP; RTCP; IP; 3GPP; IGMP
    width 2.3"
    package contents Full HD Cube IP Camera; Software Media
    Security Features Administrator and User Group Protection; Password authentication; HTTP and RTSP Digest Encryption
    digital zoom 10x
    sensor type CMOS
    Aperture Range f/2
    depth 1.5"
    Product Name Full HD Cube IP Camera
    manufacturer D-Link Systems, Inc
    Application/Usage Indoor
    Maximum Power Consumption 2 W
    weight 2.82 oz
    HD Recording Yes
    brand name D-Link
    Maximum Operating Temperature 104° F (40° C)
    Ethernet Yes
    Image Formats JPEG
    Maximum Video Resolution 1920 x 1080
    Network (RJ-45) Yes
    focal length 4.37 mm
    Illumination Minimum 0 Lux
    Minimum Operating Temperature 32° F (0° C)
    operating system compatibility Operating Systems: Microsoft Windows 7/Vista/XP/2000, Apple MAC OSX 10.3 or above, Linux, Unix; Browsers: Internet Explorer, Firefox, Netscape, Opera
    Platform Supported PC
    Product Type Network Camera
    Operating System Supported Windows
    warranty length 1-year limited
    model name DCS-2210
    viewing angle 40.8° to 75&deg

    Back to Menu

    Back to Menu

    Back To Top

    From the Manufacturer|Powered by Answers™

    Thank You Is the information in this section helpful? Yes / No

    Description

    • 24/7 Camera Surveillance

      The DCS-2210 Full HD PoE Cube Network Camera is a versatile surveillance solution that is perfect for monitoring low-light environments in your business or home. It combines a high-resolution 2 Megapixel sensor with a built-in IR LED to help you keep watch over areas in complete darkness. The DCS‑2210 includes support for Power over Ethernet PoE, so the camera can be placed in areas where no power outlet is nearby. The DCS‑2210 also offers simple installation, an intuitive web-based interface, and remote monitoring and motion detection features for a complete and cost-effective home and business security solution.
    • Product Highlights

      • 2 Megapixel - Full HD Resolution- High-resolution Full HD 1080p video ensures that you capture the details that you need.
      • Reliable 24-Hour Surveillance- Infrared LED illuminator provides clear video at night for dependable 24-hour surveillance.
      • High-Quality Video Feeds- Real-time video compression using the H.264, MPEG-4 and MJPEG codecs.

    Features

    • Flexible Connectivity

      The DCS-2210 includes input and output ports allowing connectivity to external devices such as IR sensors, switches, and alarm relays.

      ePTZ For Surveying Regions Of Interest

      The ePTZ feature allows users to select a target region for close-up viewing simply by clicking on the video feed displayed within their browser. ePTZ makes use of the camera’s 2 megapixel resolution to survey a large area effortlessly. Since ePTZ requires no moving parts, there is no need to worry about the camera having mechanical failures.
    • D-ViewCam™ for Management

      The included D-ViewCam™ IP camera surveillance software is a comprehensive surveillance system designed to centrally manage multiple IP cameras. Supporting up to 32 IP cameras, D-ViewCam™ is compatible with all current D-Link IP cameras and offers digital monitoring and recording capabilities of video, audio, and events for various security applications. The D-ViewCam™ software is included free of charge with the DCS-2210.
    • Open Network Video Interface Forum (ONVIF)

      ONVIF is an open industry forum for the development of a global standard for the interface of IP-based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-2210 is ONVIF-compliant and therefore compatible with many third party Video Management Software (VMS) solutions.

      Easy to Configure and Operate

      This network camera supports the Universal Plug-n-Play feature, which allows computers  running on Windows XP/Vista/7 to automatically recognize the camera and add it to the network.

    Technical Features

    • 2 Megapixel CMOS Sensor
    • Real-time H.264, MPEG-4, and Motion JPEG compression
    • Full HD resolution up to 1920 x 1080
    • Fixed lens 4.37 mm f2.0, 67° Field of View
    • Built-in mechanical IR cut filter for day/night surveillance
    • Built-in IR LED for no-light environments
    • Built-in PIR (Passive Infrared) sensor for accurate motion
    detection
    • Simultaneous multi-stream support
    • ePTZ
    • Integrated microphone & speaker
    • Privacy Mask feature
    • microSD Card slot
    • 2-way audio support
    • 1 digital input / 1 digital output
    • PoE
    • 3GPP mobile surveillance
    • Built-in Samba client for NAS
    • ONVIF-compliant

    Specifications

    Camera

    Hardware Profile



    • 1/2.7” 2 Megapixel progressive CMOS sensor
    • IR Illumination distance: 5 m
    • Minimum illumination: 0 lux with IR illumination
    • Built-in Infrared-Cut Removable (ICR) filter module
    • Built-in PIR (Passive Infrared) sensor
    • 10x digital zoom
    • Fixed length: 4.37 mm
    • Aperture: F2.0
    Field of View• (H)67.4° / (V) 40.8° / (D) 75°
    Image Features



    • Configurable image size, quality, frame rate, and bit rate
    • Time stamp and text overlays
    • Configurable motion detection windows
    • 3 configurable privacy mask zones
    • Configurable white balance, shutter speed,
    brightness, saturation, contrast, and sharpness
    Video Compression



    • H.264/MPEG-4/MJPEG simultaneous format compression
    • JPEG for still images
    Video Resolution



    • 16:9 - 1920 x 1080 (up to 15 fps), 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 fps
    • 4:3 - 1440 x 1080 (up to 15 fps), 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 fps

    Audio Support



    • G.726

    • Built-in microphone and speaker

    External Device Interface



    • 10/100 BASE-TX Ethernet port (with PoE for DCS-2210 only)
    • 802.11n wireless (DCS-2230 only)
    • 1 DI / 1 DO
    • microSD card slot

    Network

    Network Protocols



    • IPv4
    • TCP/IP
    • UDP
    • ICMP
    • DHCP Client
    • NTP Client (D-Link)
    • DNS Client
    • DDNS Client (D-Link)
    • SMTP Client
    • FTP Client
    • HTTP / HTTPS
    • Samba Client
    • PPPoE
    • UPnP Port Forwarding
    • RTP / RTSP/ RTCP
    • IP filtering
    • 3GPP
    • IGMP
    • ONVIF-Compliant
    Security



    • Administrator and user group protection
    • Password authentication
    • HTTP and RTSP digest encryption

    System Management

    System Requirements for Web Interface


    • Operating System:
    - Windows® 7, Windows Vista®, Windows® XP, Windows® 2000
    • Browser:
    - Internet Explorer, Mozilla Firefox, Netscape, Opera
    Event Management



    • Motion detection
    • PIR motion detection
    • Event notification and upload snapshots/video clips via HTTP, SMTP, or FTP
    • Supports multiple HTTP, SMTP, and FTP servers
    • Multiple event notifications
    • Multiple recording methods for easy backup
    Remote Management• Configuration accessible via web browser
    • Take snapshots/video clips and save to local hard drive or NAS via web browser
    D-ViewCam™ System Requirements



    • Operating System: Microsoft Windows 7/Vista/XP
    • Web Browser: Internet Explorer 6 or higher
    • Protocol: Standard TCP/IP
    D-ViewCam™ Software Functions



    • Remote management/control of up to 32 cameras
    • Viewing of up to 32 cameras on one screen
    • Supports all management functions provided in web interface
    • Scheduled motion triggered or manual recording options

    General Specifications

    Power Input• 12V DC 1.2 A, 50/60 Hz, PoE
    Max. Power Consumption• 3.5 watts
    Environment• Indoor Use Only
    Operating Temperature• 32 to 104° F (0° to 40° C)
    Storage Temperature• -4° to 158° F (-20° to 70° C)
    Humidity• 20% to 80% non-condensing
    Weight• 0.17lbs (80 grams)
    Certifications



    • CE
    • LVD (EN60965-1)
    • FCC (Class B)
    • C-Tick
    Dimensions



    • Length: 3.9” (97mm)
    • Width: 3.2” (82mm)
    • Height: 5.1” (128.6mm)



    Warranty

    Warranty•1-Year Limited1

    Order Information

    • Full HD PoE Cube Network Camera

    1 1-Year Limited Warranty available only in the USA and Canada. All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance
    may differ from that depicted herein.
