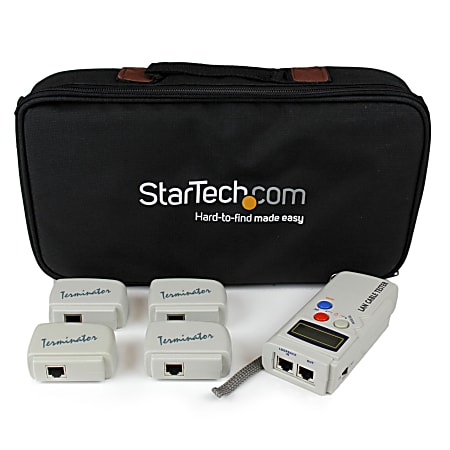

StarTech.com Professional RJ45 Network Cable Tester with 4 Remote Loopback Plugs Item # 313722
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The StarTech.com Advanced RJ45 LAN Cable tester allows a single person to test several long cables faster and more efficiently than ever before. The tester uses remote loop-back plugs that each have their own unique ID number that the tester can identify. If several cables need to be tested, the user simply puts a loop-back plug on the end of each cable run and goes to the other end to test and identify each one. The tester provides a basic continuity test with a pin-map that will identify wiring errors, allowing them to be quickly corrected. It also identifies several common pinnings and displays the applications for each. The LANTESTPRO requires a separate 9V battery that is not included to operate.
|Additional Information||Menu driven user interface; Easy to read LCD display shows continuity, opens, shorts, and pin mismatches|
|Cable Types||UTP, STP, FTP|
|Connectors||RJ-45 x 2|
|Environmental Certification||RoHS; WEEE|
|kit contents||Professional RJ45 Network Cable Tester with 4 Remote Loopback Plugs; 1 x Instruction Sheet|
|Media Type Supported||Twisted Pair|
|ports||2 Ethernet (RJ-45)|
|Product Name||Professional RJ45 Network Cable Tester with 4 Remote Loopback Plugs|
|Status Indicators||Low Battery Indicator|
|warranty length||2-year limited|
|Show More ▾|
