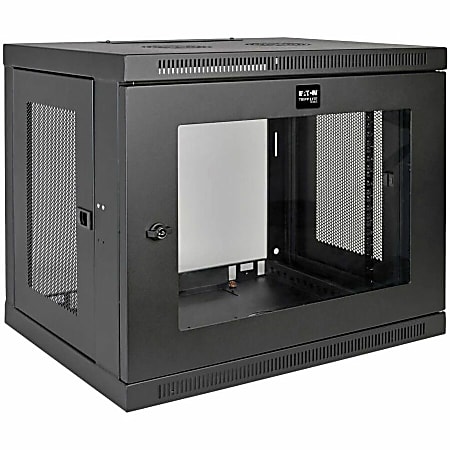

Tripp Lite 9U Wall Mount Rack Enclosure Server Cabinet w/ Acrylic Glass Front Door Item # 318857
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The SRW9UG SmartRack 9U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds. The front door features a shatter-resistant clear acrylic window that lets you monitor equipment without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation. To ensure your valuable equipment stays secure, the side panels and front door lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet. The SRW9UG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER caster kit to make it a mobile rolling rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
|brand name||Tripp Lite|
|form factor||Wall Mountable|
|material||Plexiglass Front Door|
|Maximum Weight Capacity||200 lb|
|package contents||SRW9UG SmartRack 9U Wall-Mount Standard-Depth Rack Enclosure Cabinet; 18 x M6 Screws; 18 x M6 Cage Nuts; (18 x M6 Cup Washers; 18 x 12-24 Screws; Removable Mounting Plate; 3 x Mounting Plate Screws; 2 x Keys; Owner's Manual|
|Rack Depth||16.50 in.|
|Rack Width||19 in.|
|Static/Stationary Weight Capacity||140 lb|
|warranty length||5-year limited|
|Show More ▾|
9U Wall-Mount Rack with Special Plexiglass Front Door
|Tripp Lite’s SRW9UG SmartRack 9U Wall-Mount Standard-Depth Rack Enclosure Cabinet is ideal for storing standard 19-inch rack equipment in network closets, retail locations, offices, classrooms and other areas with limited floor space where you need equipment to be secure and out of the way. Adding to its appeal is the clear plexiglass window in the front door, which lets you monitor equipment readouts without having to open the locked enclosure.|
The SRW9UG supports a maximum load capacity of 200 pounds. The reversible front door locks with the included keys to prevent unauthorized access to equipment. The ventilated side panels lock from the inside and can also be removed to make it easy for IT personnel to perform inspections and maintain and replace equipment. Convenient top and bottom ports allow easy cable routing through the enclosure.
Generous Airflow Keeps Equipment Cool
The removable side panels are ventilated, which allows air to flow freely through the cabinet to keep equipment cool. Vented top and bottom panels help remove warm air from the enclosure and draw in cool air by convection. They also support the installation of optional cooling fans, such as Tripp Lite’s SRFANWM fans (sold separately).
Constructed from heavy-duty steel with a durable black powder-coat finish, the SRW9UG comes fully assembled and ready to mount. The front door can open left or right by rotating the enclosure 180° before mounting. Installing equipment within the enclosure is easy with its square and threaded mounting holes and numbered rack spaces. The front vertical mounting rails adjust in 7/8-inch increments to accommodate equipment from 3 to 16.5 inches deep.
Meets Payment Card Industry Standards
The SRW9UG provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance.
The SRW9UG comes with a 5-year product warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Perfect for network closets, retail locations, offices, classrooms and other areas with limited floor space where you need equipment to be secure and out of the way
- Houses standard 19 in. rack equipment in 9U of space
- Supports maximum load capacity of 200 lb.
- Plexiglass front door lets you monitor equipment readouts at a glance
- Locks securely to help prevent damage, tampering or theft
- Adjustable mounting rails house equipment from 3 to 16.5 in. deep
- Ventilated side, top and bottom panels promote efficient airflow
- Ships fully assembled for quick installation
- 5-year warranty
- SRW9UG SmartRack 9U Wall-Mount Standard-Depth Rack Enclosure Cabinet
- (18) M6 Screws
- (18) M6 Cage Nuts
- (18) M6 Cup Washers
- (18) 12-24 Screws Removable Mounting Plate
- (3) Mounting Plate Screws
- (2) Keys
- Owner’s Manual
