Tripp Lite VGA over Cat5/Cat6 Video Extender Receiver Repeater 1920x1440 1000' TAA Item # 333538
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's B130-111 extender/repeater kit comes with both local transmitter and remote/repeater units. By connecting additional receiver (B132-100-1 or B132-100-WP-1) or repeater B132-110A) units, you can locate multiple monitors at different points in a chain of up to 2,000 ft.. With Tripp Lite's standard transmitters and receivers, a single VGA monitor can be located up to 1,000 ft. from the source. By inserting a remote/repeater unit in between, the signal can be regenerated and extended to another monitor up to an additional 1,000 ft. away. A monitor can be connected to both the remote/repeater and the receiver, allowing the signal to be transmitted to both points in the chain. Up to 4 remote units (3 remote/repeaters and 1 receiver) can be connected together, providing video to up to 4 remote displays located at different points in the installation. 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K.Equalization and Gain controls are built into the remote/repeater unit for the adjustment of the video image. Mounting hardware is included for both the local and remote units, allowing them to be wall mounted, rackmounted, or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
|Additional Information||Daisy chainable|
|brand name||Tripp Lite|
|Certifications & Standards||TAA/GSA|
|form factor||Rack-mountable; Wall Mountable; Pole-mountable|
|Input Voltage||5 V AC|
|Maximum Operating Distance||2000 ft|
|Maximum Video Resolution||1024 x 768|
|Media Type Supported||Twisted Pair|
|Number of Input Devices Supported||1|
|Number of Output Devices Supported||2|
|package contents||B130-111 TAA/GSA Compliant Video Console/Extender; 2 x Power Adapter; Image Adjustment Screwdriver; Mounting Hardware|
|ports||3 Ethernet (RJ-45); 1 VGA in; 2 VGA out|
|Twisted Pair Cable Standard||Category 6|
|warranty length||1-year limited|
|Show More ▾|
Connect Multiple Remote Monitors in a Chain of Up to 2,000 ft.
|Spread your message far and wide—gain even more distance and displays with Tripp Lite's B130-111 VGA over Cat5 Extender/Repeater Kit. The B130-111 both expands and extends your application, allowing you to connect multiple remote monitors in a chain of up to 2,000 ft.! When installed as a stand-alone VGA over Cat5 extender kit, the B130-111 extends a 1920 x 1440 (60Hz) signal up to 500 ft. and a 1024 x 768 (60Hz) signal up to 1,000 ft. When used with multiple remote/repeater units (Tripp Lite B132-110) and a remote receiver unit (Tripp Lite B132-100-1), you can form an application chain of up to 2,000 ft.! With its VGA output connector, the B130-111 adds a display wherever it is installed. Up to three remote/repeater units can be installed between a transmitter and receiver, adding three more displays at varying points in your application. Built-in equalization and gain controls are included to provide ultimate control over image quality at each remote display. The B130-111 is manufactured to RoHS standards and is TAA compliant for GSA schedule purchases.|
The Smart Solution for Digital Signage ApplicationsThe B130-111 expands and extends your existing VGA over Cat5 application, making it perfect for digital signage installations with growing demands such as retail, point-of-sale displays, schools, churches and others. By extending an application by up to 1,000 ft. and adding as many as three monitors, the B130-111 is made to meet the growing demands of digital signage.
Greater Distance—Greater Flexibility
When used as a stand-alone application extender kit, the B130-111 extends a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft. However, up to three remote/repeater units, like Tripp Lite's B132-110, can be added to the application, as well as a remote receiver unit, like Tripp Lite's B132-100-1, in order to create a chain of up to 2,000 ft. and five monitors. The B130-111 also includes a VGA output connector, allowing you to connect a remote display to each unit.
The B130-111 is compatible with almost all of Tripp Lite's VGA over Cat5 solutions. It can be used with a B132-100-1 or B132-100-WP-1 receivers or a B132-110 remote/repeater. The B130-111 is not compatible with the USB-powered B130-101-U extender kit.
Convenient Plug-and-Play Setup
With no software or drivers to install, the B130-111 is ready to use in your application right out of the box. Simply connect the Cat5e/6 input and output along with the unit's power supply and watch as the B130-111 extends your application with crystal-clear resolution. The unit also includes built-in equalization and gain controls for ultimate image quality control.
The B130-111 includes mounting hardware, enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount. For further flexibility, up to three units can be mounted in 1U of rack space using Tripp Lite's B132-004-RB 19-inch rackmount bracket.
The B130-111 features a green, RoHS-compliant design that is also TAA-compliant for GSA schedule purchases.
What's in the Box

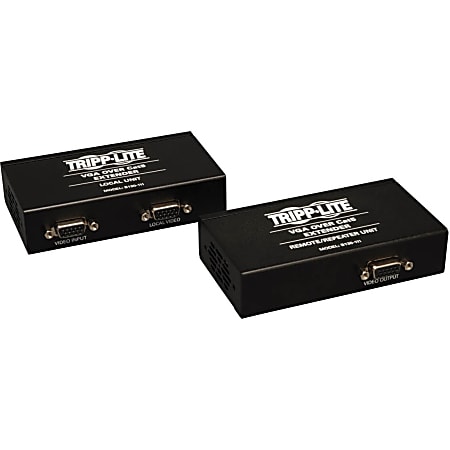

- B130-111 local transmitter unit
- B130-111 remote/repeater unit
- (x2) 5V, 2A external power supply
- Screwdriver for video adjustment
- Mounting hardware
- Owner's manual
- Ideal for digital signage applications requiring multiple displays such as schools, retail locations, churches and more
- Both extends and expands your installation, allowing you to locate multiple monitors in a chain up to 2,000 ft.
- Extend a 1920 x 1440 (60Hz) signal up to 500 ft., or a 1024 x 768 (60Hz) signal up to 1,000 ft.
- Plug-and-play setup with built-in equalization and gain controls to adjust the video image
- Versatile installation options
- RoHS and TAA-compliant design
