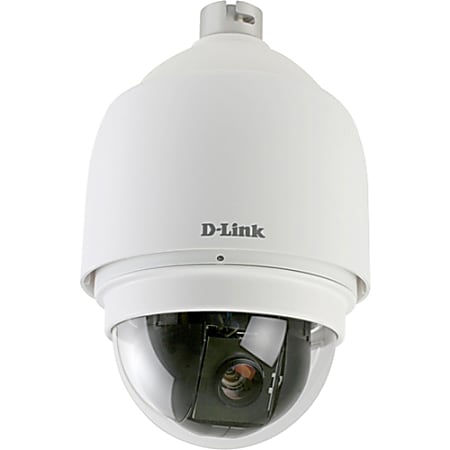

D-Link SecuriCam DCS-6818 Network Camera - Color, Monochrome
This item is in your cart

D-Link SecuriCam DCS-6818 Network Camera - Color, Monochrome

Item # 359572
Your Price
$2,475.99 $2,475.99
/ each
  • Quantity

In Stock

Free delivery

Estimated delivery 3-5 business days

Pricing, Assortment and Availability

The DCS-6818 High Speed Dome Network Camera is a professional IP surveillance solution which connect to your network to provide high-quality live video over the Internet. The camera apparatus supports precise high-speed pan/tilt/zoom functionality for extensive monitoring, and object tracking. The inconspicuous dome enclosure can be mounted in a variety of positions based on your needs.

Back to Menu

Item # 359572
Manufacturer # KZ9977
brand name D-Link
Color Supported Color; Monochrome
Compatibility NTSC; PAL
Connectivity Technology Cable
diameter 7.5"
digital zoom 12x
Ethernet Yes
focal length 3.40 mm to 122.40 mm
height 11.9"
Illumination Minimum 0.1 Lux; Minimum 0 Lux
manufacturer D-Link Systems, Inc
Maximum Video Resolution 720 x 576
model name DCS-6818
Network (RJ-45) Yes
operating system compatibility Operating System: Microsoft Windows 2000, XP, Vista; Browser: Internet Explorer 6.0 or above
optical zoom 36x
Platform Supported PC
Product Line SecuriCam
Product Name SecuriCam DCS-6818 Network Camera
Product Type Network Camera
Protocols ARP; TCP/IP; UDP; ICMP; DHCP; NTP; DNS; DDNS; SMTP; FTP; HTTP; PPPoE; UPnP
Security Features Administrator & User Group Protected
sensor type CCD
Swivel 180° to 180°
Tilt 10° to 190°
warranty length 1-year limited
weight 5.73 lb

Back to Menu

Back to Menu

Back To Top

From the Manufacturer|Powered by Answers™

Thank You Is the information in this section helpful? Yes / No

Description

  • Powerful Digital Surveillance

    The D-Link DCS-6818 is a high-performance high speed dome network camera, ideal for business IP surveillance applications. The DCS-6818 employs Sony ¼” EX-View CCD technology to deliver exceptional picture quality. High-performance technology provides real-time video compression in H.264/MPEG-4 and MJPEG formats.
  • Product Highlights

    • Precision Monitoring- Pan, tilt, zoom apparatus provides a 360 degree range of motion with proportional speed adjustment
    • Wide Dynamic Range (WDR)- Neutralizes imperfect lighting, providing clear images with the right amount of contrast even when a subject is backlit
    • Superior Image Quality- Sony EX-View CCD technology with removable IR cut filter offers crisp color images in daylight and clear grayscale images in low-light
    • Weatherproof- IP66 rated, Built-in fan and heater

Features

  • Proportional Pan, Tilt, and Zoom Speeds

    Adjusting the camera is painless since the pan and tilt speed is proportional to the optical zoom ratio of the camera. When the camera zooms in, the panning speed is automatically slowed to improve camera tracking and controllability. PTZ presets allow the camera to monitor specified areas along predefined paths.

    Weatherproof for Outdoor Use

    The DCS-6818 camera apparatus is housed in a weatherproof enclosure (IP66 standard). A
    built-in heater and fan allows camera to operate in extreme environments at temperatures
    ranging from -40°C to 50°C.

    Mechanical IR Cut Filter for Day and Night Monitoring

    The IR Cut Filter can be manually applied, or set to automatically adjust based on lighting
    conditions. This feature enables the camera to capture crisp color images during the daytime, and grayscale images in low-light.
  • Wide Dynamic Range (WDR) Applications

    The Wide Dynamic Range (WDR) function of a camera provides clear images even under backlit conditions where the intensity of illumination can vary significantly. The DCS-6818 is recommended for extreme high-contrast environments.
  • Robust Management Software

    D-ViewCam is a software program that allows you to view up to 32 cameras on a single computer screen from a central location. Motion detection and digital input devices trigger automated e-mail alerts that can instantly inform administrators of unusual activities.
  • Open Network Video Interface Forum (ONVIF)

    ONVIF is an open industry forum for the development of a global standard for the interface of IP based physical security products. ONVIF identifies a standard for how IP products within video surveillance and other physical security areas can communicate with each other ensuring interoperability between products regardless of brand. The DCS-6818 is ONVIF compliant and therefore compatible with many third party Video Management Software (VMS) solutions.

Technical Features

• 2 Megapixel CMOS progressive sensor
• Real-time H.264, MPEG-4 and Motion JPEG compression
• Full HD resolution (1080p) to capture crisp and clear video
• H.264, MJPEG & MPEG-4 compression codec for distribution and recording of high definition video
• Fixed lens 4.0 mm f1.5
• Max. resolution 1920x1080 at 15 fps, 720p at 30fps
• Four simultaneous streams

• 2 Alarm Inputs / 1 Alarm Output

• Power over Ethernet (PoE)
• Tamper detection
• Motion detection
• Advanced event management
• ePTZ image manipulation
• microSD Card slot
• 2-way audio support
• 1 digital input / 1 digital output
• Analog AV output (NSTC/PAL)
• 3GPP mobile surveillance
• IPv6, 802.1x, QoS, Cos
• Built-in Samba client for NAS
• ONVIF-compliant



Specifications



Camera

Hardware Profile



• 1/4” EX-View CCD Sensor
• 36X optical zoom
• 12 Digital Zoom
• Day / Night: ICR
• 0.1 Lux (Color); 0.01 Lux (B/W)
• 540 TVL
• Electronic shutter speed 1/1 ~ 1/10K sec
• Auto Gain Control(AGC)
• Manual / Auto Focus(AF)
• Manual / Auto Exposure(AE)
• Manual / Auto WhiTe Balance(AWB)
• Backlight Compensation(BLC)
• Wide Dynamic Range (WDR)
Angle of View• Horizontal: 60.8° ~ 1.8°
Focal Length• Focal length 3.4~122.4

Video Code Support

• JPEG for still image
• H.264/MPEG4/MJPEG dual format compression
Video Resolution



NTSC Support:
• Up to 30 fps at 176 x 120
• Up to 30 fps at 352 x 240
• Up to 30 fps at 720 x 480


PAL Support:
• Up to 25 fps at 176 x 144
• Up to 25 fps at 352 x 288

• Up to 25 fps at 720 x 576

Video Features• Adjustable image size and quality
• Time stamp and text overlays
• Configurable motion detection windows
Video Bit Rate
• Up to 3 Mbps

Network

Network Protocols



• IPv4
• TCP/IP
• UDP
• ICMP
• DHCP Client
• NTP Client (D-Link)
• DNS Client
• DDNS Client (D-Link)
• SMTP Client
• FTP Client
• HTTP / HTTPS
• Samba Client
• PPPoE
• UPnP Port Forwarding
• RTP / RTSP/ RTCP
• IP filtering
• 3GPP
• CoS/QoS
• IGMP
• ONVIF Compliant

System Management

Surveillance Software Functions
• Remote management/control of up to 32 cameras
• Management functions provided in web interface
• Management functions provided in web interface- Internet
• Scheduled motion triggered, or manual recording

Remote Management

• Configuration accessible via web browser

• Take snapshots/video clips and save via web browser

System Requirements

• Operating System: Microsoft Windows 2000, XP, Vista

• Browser: Internet Explorer 6.0 or above

General Specifications

IO Port


• 8 Alarm inputs

• 1 Alarm output

Dome Operation



• 360° pan capability
• 8 Sequence presets
• -10° ~ 190° Tilt travel
• 16 Privacy masks
• 0.225° Pan / Tilt preset accuracy
• Auto-flip
• 5° ~ 400° Pan / Tilt preset speed
• Built-in heater and fan
• 4 Cruise presets
• IP66 standard
• 4 Auto pan presets
• Vandal-proof
Power Input• AC 24V
Max. Power Consumption
• 65 W (with heater)
Operating Temperature• -40° to 122° F (-40° to 50°C)
Storage Temperature• -4° to 158° F (-20° to 70°C)
Operating Humidity• 20% to 80% non-condensing
Certifications• FCC
• CE
• RoHS

Warranty

Warranty•1-Year Limited1

Mounting Accessories (Not Included with Camera)

Outdoor Power Supply
(DCS-80-5)
• Dimensions: 7.36 x 5.78 x 3 inches (187 x 147 x 76 mm)
• Mounting Area: 7.36 x 7.16 inches (187 x 147 mm)
• Weight: 4.4 lbs (2 kg)
Pendant Mount
(DCS-32-2)
• Height: 19.7 inches (500 mm)
• Diameter: 2 inches (50 mm)
• Weight: 4 lbs (1.8 kg)
Wall Mount
(DCS-32-4)
• Dimension: 8 x 4.8 x 5.3 inches (204 x 124 x 135.2 mm)
• Diameter: 1.8 inches (44.5 mm)
• Weight: 2.6 lbs (1.2 kg)

Order Information

High Speed Dome Network Camera

1 1-Year Limited Warranty available only in the USA and Canada.
All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
