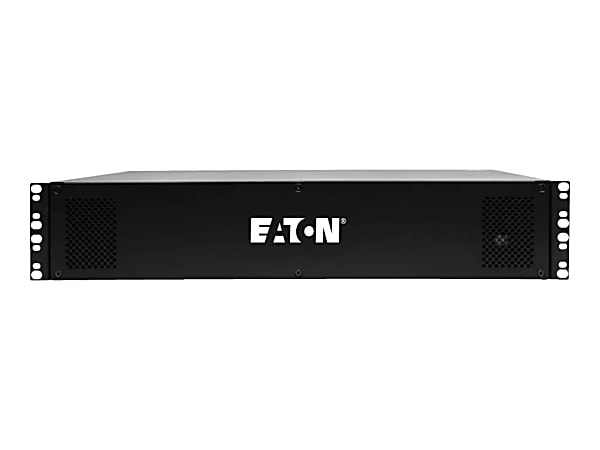

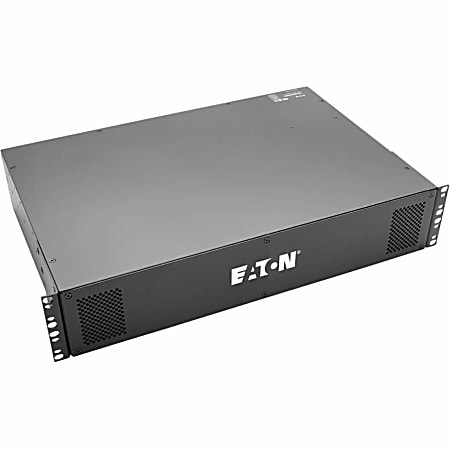

Tripp Lite PDU Switched 120V 30A 5-15/20R 16 Outlet 2URM -Special Price Item # 363148
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
|brand name||Tripp Lite|
|Frequency Provided||50/60 Hz|
|Input Connectors||1 x power NEMA L5-30|
|Input Receptacles||NEMA L5-30P|
|Input Voltage||120 V AC|
|Management||Supported Protocols:HTTP; HTTPS; PowerAlert Network Management System; SMTP; SNMPv1; SNMPv2; Telnet; FTP; DHCP; BOOTP; NTP|
|Output Receptacles||16 x NEMA 5-20R|
|Output Voltage||120 V AC|
|package contents||PDUMH30NET PDU Switched 120V 30A 16 Outlet; Rackmount PDU; 4 post compatible mounting brackets|
|protection type||Overload Protection|
|warranty length||2-year limited|
|Show More ▾|
Metered Power Distribution with Advanced Network Control and Monitoring
|Tripp Lite's PDUMH30NET Single-Phase Switched Power Distribution Unit (PDU) is the perfect cost-effective way to distribute, monitor, and manage power in an IT or industrial environment. Featuring a built-in SNMPWEBCARD, the PDUMH30NET provides full remote power monitoring and control via a secure network or web browser interface. When used with an optional environmental sensor module (Tripp Lite model ENVIROSENSE), the PDUMH30NET can also report temperature/humidity conditions. The PDUMH30NETs 16 5-15/20R outlets are arranged on the rear panel are individually controllable to enable load shedding, load ramping, and remote rebooting of locked-up servers and other network devices. These capabilities provide IT personnel with enhanced oversight of facility power and environmental conditions. For peace of mind, the PDUMH30NET comes backed by a 2-year warranty and is designed according to strict RoHS specifications.|
The PDUMH30NET contains 16 total 5-15/20R outlets located on the rear of the unit. The PDUMH30NET's reversible housing makes it easier to connect equipment to the PDU and also simplifies cord management—a key advantage in IT applications where cord clutter is a problem. All of the PDUMH30NET's outlets are individually controllable via network or web browser interface, providing a higher level of network power control. These controllable outlets allow power management tasks, such as load shedding, load ramping and rebooting of locked-up network devices, to be performed remotely. This saves time and money because it eliminates the need for around-the-clock on-site management. So if equipment needs to be rebooted on a Sunday—no problem! Simply log on from wherever you are and take care of business remotely.
The PDUMH30NET's built-in SNMPWEBCARD enables full remote access for power monitoring, configuration and control via a secure network or web browser interface. The PDUMH30NET provides 10/100 Mbps auto-sensing for optimal communication compatibility with a 10/100 Base-T network. Supported protocols include HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, FTP, DHCP, BOOTP, and NTP. DHCP/Manual configuration support gives network settings the ability to be automatically assigned to the card, or manually assigned via permanent IP addresses.
The PDUMH30NET is equipped with a digital LED meter that lets IT personnel monitor the total PDU load in real time. This meter helps to ensure that the PDU is used at maximum capacity with no danger of overload. Each outlet is provided with an LED that illuminates to confirm power on/off status.
Advanced Network Monitoring Capabilities
The PDUMH30NET gives IT personnel enhanced oversight of network power conditions. It remotely monitors site power conditions and PDU load levels, and supports notification and logging of all major power events and user-specified alarm thresholds via email or SNMP traps. Real-time clock backup maintains the time of day and date, even if the PDU is shut down and unpowered. When used with Tripp Lite's optional ENVIROSENSE sensor (sold separately), the PDUMH30NET can also remotely monitor temperature/humidity conditions plus up to 4 dry contact interfaces for alarm, security, and telecom devices. These capabilities simplify and streamline the task of network power management.
The PDUMH30NET is easy to integrate with a wide range of data center and network applications. It is suitable for 2U installation in standard 19-inch rack enclosures as well as wall-mount, workbench, under-counter and similar installations.
2-Year Product Warranty and Environmentally Responsible Design
The PDUMH30NET comes with a 2-year warranty. As part of Tripp Lite's commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.
