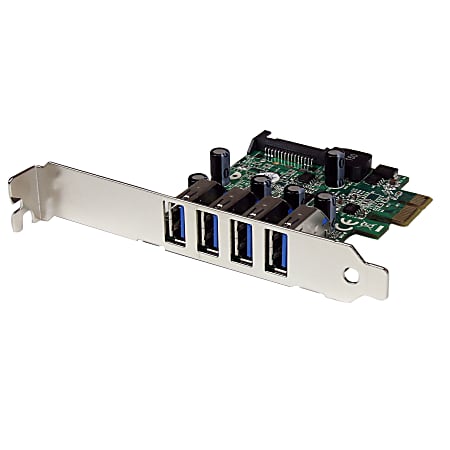

StarTech.com 4 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card Adapter with UASP - SATA Power Item # 382007
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Add 4 external USB 3.0 ports to a low profile or standard computer, through PCI Express. The PEXUSB3S4V PCI Express USB 3.0 Card (with SATA Power) adds 4 external USB 3.0 ports to any PCI Express-enabled computer system with support for data rates up to 5 Gbps, while remaining backward compatible with USB 2.0 / 1.x devices.Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers.The card uses a "stacked" port layout that places the ports one on top of the other, enabling all four USB 3.0 ports to be external facing, while still allowing the card to fit into a small form factor/low profile computer system using the included low profile bracket.Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply.UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
|Additional Information||Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64); Windows Server® 2012, 2008 R2, 2003|
|Total Number of USB Ports||4|
|package contents||PCI Express USB 3.0 Card; Low Profile Bracket; Driver CD; Instruction Manual|
|Product Name||PCI Express USB 3.0 Card|
|Host Interface||PCI Express x1|
|Number of USB 3.0 Ports||4|
|form factor||Plug-in Card|
|warranty length||2-year limited|
|Show More ▾|
From the Manufacturer|
SuperSpeed USB (USB 3.1 Gen 1)
SuperSpeed USB delivers effortless audio/video streaming, music and photos to your home, office, car, and anywhere in between. SuperSpeed USB transfers data up to 5Gbps, up to 10X faster than Hi-Speed USB. SuperSpeed USB works with all USB products. It’s backward compatible with USB 2.0.
USB 3.1 SpecificationThe USB 3.1 specification includes definitions for both 5Gbps (Gen 1) and 10Gbps (Gen 2) data rates:
- USB 3.1 Gen 1 – SuperSpeed USB (Products signal at 5Gbps)
- USB 3.1 Gen 2 – SuperSpeed USB 10Gbps (products signal at 10Gbps)
Note: The terms USB 3.1 Gen 1 and USB 3.0 are synonymous
What the Logos Mean to YouTo use the SuperSpeed USB logo and icons, products must pass USB-IF certification testing to ensure they are built to meet the USB specifications and interoperate with other USB devices. This means you can be confident that Certified USB products will work with other Certified USB products. This content is being provided for educational purposes only and does not imply that the associated product has been certified. To confirm if a device has been certified, visit the www.usb.org website or look for the Certified SuperSpeed USB logo on the product or product packaging.
