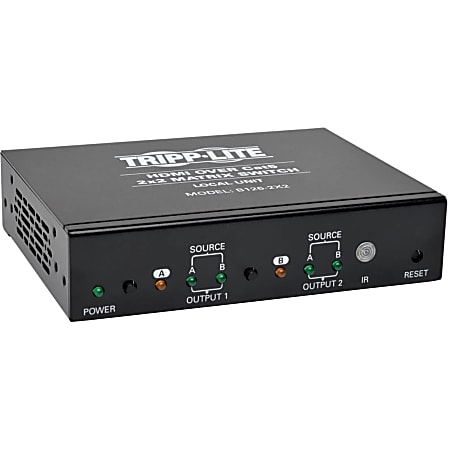

Tripp Lite HDMI over Cat5 Cat6 2x2 Matrix Video Extender Switch HDMI RJ45 F/F TAA Item # 4046517
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The B126-2X2 2-port HDMI over Cat5/Cat6 Matrix Splitter Switch works with Tripp Lite remote receivers to share one or more HDMI sources between multiple projectors, monitors or televisions. It's ideal for digital signs, trade shows, presentations, retail and other applications where the video sources are located farther than conventional cables allow or that require multiple displays connected to one source.It uses HDMI cable (see Tripp Lite's P568-Series) to connect to the sources and Cat5e/6 cable to transmit to the remote monitors(for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Any video source can be routed to any monitor, or you can send the same source to multiple monitors. Switch between inputs via pushbuttons, RS-232 serial or the included remote control.When used with Tripp Lite's B126-1A0 or B126-1A0-WP-1 active remote receivers, the switch can extend a 1080i(60 Hz) signal up to 53.34 m (175-ft.) or a 1080p signal(60 Hz) up to 38.1 m (125-ft.) With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 22.86 m (75-ft.) and a 1080p (60 Hz) signal up to 15.24 m (50-ft.) Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays.In addition to crystal-clear video, the B126-2X2 delivers full, rich stereo. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.
|brand name||Tripp Lite|
|Certifications & Standards||Taa|
|Graphics Modes||Full HD|
|Input Voltage||110 V AC; 220 V AC|
|Maximum Operating Distance||175 ft|
|Maximum Video Resolution||1920 x 1080|
|Media Type Supported||Twisted Pair|
|Number of Displays Supported||2|
|Number of Input Devices Supported||2|
|package contents||HDMI over Cat5 / Cat6 2X2 Matrix Switch; External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output B126-2X2: 5V, 2A; 3.5 mm to DB9 Adapter Cable ( serial ); Mounting Hardware; Remote Control; Owner's Manual|
|ports||2 connectivity (RJ-45); 2 HDMI in; 1 serial|
|warranty length||1-year limited|
|Show More ▾|
Share Two HDMI Video Sources Between Multiple Displays Using Cat5/6 Cables
|Tripp Lite’s B126-2X2 HDMI over Cat5/6 Matrix Splitter Switch and Transmitter Unit allows you to share high-definition video and audio from two HDMI-enabled digital video components to two different monitors. When used with Tripp Lite Active HDMI receivers* (B126-1A0 or B126-1A0-WP-1), the B126-2X2 can extend a 1080p signal up to 125 ft., and 1080i signal up to up to 175 ft. (use Tripp Lite’s N202-Series 24AWG, Solid Wire Cat5e/6 cable for maximum distance and resolution). The B126-2X2 is HDCP-compatible and provides you with a variety of installation options. Plug-and-play convenience makes for an easy, efficient setup and switching between inputs is simple via pushbuttons, remote, or RS232 serial control options. By daisychaining three units together, you can connect up to 4 monitors per video channel. The B126-2X2 comes with a one-year warranty and is TAA-compliant for GSA-schedule purchases. * A B126-Series remote receiver is needed at each monitor (sold separately).|
Convenient Plug-and-Play SetupWith no software or drivers to install, the B126-2X2's plug-and-play setup gets your application up and running faster. Simply connect the unit to the video source and remote receiver, connect the remote receiver to the HD display and watch as the B126-2X2 provides crystal clear resolution. The B126-2X2 is compatible with all HDMI video sources and all computer operating systems.
Versatile Installation Options
The B126-2X2 includes mounting hardware enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.
TAA-Compliant for GSA Schedule PurchasesThe B126-2X2 is compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
One-Year Warranty and Environmentally Responsible Design
The B126-2X2 is backed by a one-year warranty and manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Connect 2 different HDMI sources to 2 different displays, in different locations and over long distances
- Place displays in viewing areas and keep HDMI source equipment in a separate, secure location
- Remotely switch your display from video source to another
What’s in the Box
- B126-2X2 Transmitter Unit
- External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output B126-2X2: 5V, 2A)
- 3.5 mm to DB9 Adapter Cable (Serial)
- Mounting Hardware
- Remote Control
- Owner’s Manual
