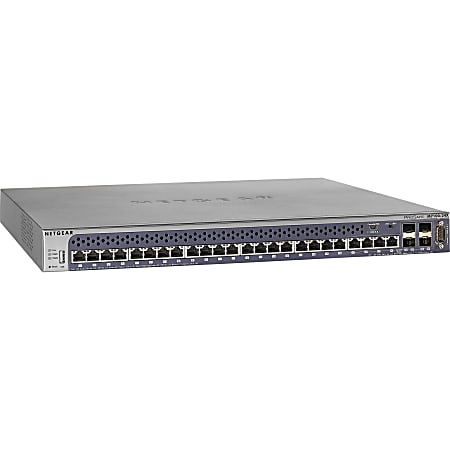

The M7100-24X is a state-of-the-art, high-performance, IEEE-compliant network switch. It includes powerful management features that you can use to eliminate bottlenecks, boost performance, and increase productivity.This switch can be free-standing or rack-mounted in a wiring closet or an equipment room.
|Certifications & Standards||EN 55 022; EN 55 024; IEEE Protocols:802.3u; 802.3z; 802.3ab; 802.3ae; 802.3aq; 802.3an; 802.3az; 802.3x; 802.1Q; 802.1p; 802.1D; 802.1w; 802.1s; 802.3ad; Electromagnetic Emissions and Immunity:FCC Class A; CE Class A; VCCI Class A; C-Tick; Safety:CE Mark; UL(UL 60950); cUL; CB; CCC|
|Ethernet Technology||Gigabit Ethernet; 10 Gigabit Ethernet|
|Expansion Slot Type||SFP+|
|form factor||Rack-mountable; Wall Mountable; Desktop|
|Input Voltage||110 V AC; 220 V AC|
|Management||CLI; Syslog; RMON 1, 2, 3, and 9; DHCP; MIB II; Telnet; SNMP v1, v2c, v3; Web Based Management; VLAN; QoS|
|Media Type Supported||Twisted Pair|
|Number of Network (RJ-45) Ports||20|
|Number of SFP+ Slots||4|
|Number of Total Expansion Slots||4|
|ports||1 management; 1 uplink; 1 USB|
|power source||Power Supply|
|Redundant Power Supply Supported||Yes|
|Shared SFP Slot||Yes|
|Total Number of Network Ports||24|
|Twisted Pair Cable Standard||Category 6a|
From the Manufacturer|
The NETGEAR® 10 Gigabit M7100 series consists of a fully managed, low-latency, line-rate 10G Copper “Base-T” switch solution; 24 ports 10GBase-T (RJ45) that support Fast Ethernet, Gigabit Ethernet and 10 Gigabit speeds for server, storage and network progressive upgrade; 4 ports SFP+ that broaden 10 Gigabit connectivity for 1G/10G fiber uplinks and other DAC connections. The M7100 series is ideal for all organizations considering reliable, affordable and simple 10 Gigabit Ethernet Top-of-Rack server access layer and high-density, high-performance 10GbE backbone architectures.
- Dimensions (w x d x h): 440 x 430 x 44 mm (17.32 x 16.93 x 1.73 in)
- Weight: 6.984 kg (15.40 lb)
- ProSafe® M7100 series switch equipped with 1 x PSU and 2 x Fan trays
- Power cord
- Rubber footpads for tabletop installation
- Rubber caps for the SFP+ sockets
- Rack-mounting kit
- Mini-USB to USB cable for console
- Resource CD with links to online documentation, installation guides, USB drivers, software manual, CLI adminguide, Web GUI guide
