Gefen Multi-Format Processor (EXT-MFP) Item # 470271
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

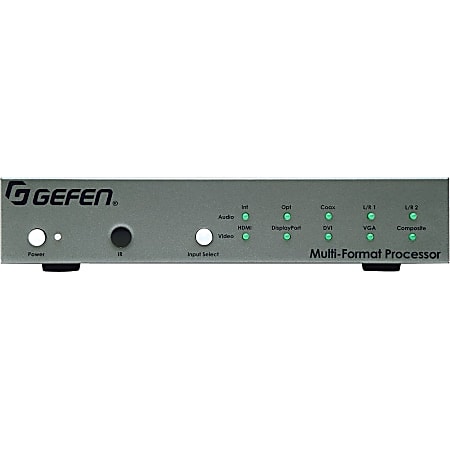

The Gefen EXT-MFP multi-format audio/video processor is a compact and powerful presentation switcher with cutting edge format conversion and scaling abilities. It supports input and output resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA), with HDCP. Its features include an intuitive and elegant web server interface, an easy-to-use On Screen Display (OSD), IP (Telnet and UDP) control, RS-232 control, IR control, independently password-protected user and administrator access, advanced EDID management, a wide variety of video inputs including Mac and PC compatible DisplayPort, independent and configurable audio and video routing, input selection via contact closure, assignable input naming, and a compact form factor that can be surface or rack mounted, or placed on a shelf. The EXT-MFP features full compatibility with the Gefen Syner-G software, including Discovery, Show-Me, and IP configuration. It is a complete solution for managing video and audio in classrooms, conference rooms, command centers, and as the backbone of any other high performance system that needs to interface with multiple sources, AV formats, and resolutions in a dynamic environment.
|functions||Video Processing; Video Scaling|
|Low Voltage Power||DC 12 V|
|maximum resolution||1920 x 1080|
|package contents||Multi-Format Processor (EXT-MFP); 1 x 6-pin Phoenix Plug (CON-PH-6P-M-GRN-AB); 2 x L- shaped Brackets for surface mounting; 4 x Mounting Screws for L-shaped brackets; 2 x Mounting Screws for EXT-RACK-1U-GRY; 4 x Self-Adhesive Rubber Feet; 1 x IR Remote Control (RMT-MFP); 1 x 12V DC Power Supply (EXT-PS121.5AIP-3P); 1 x Quick-Start Guide (QSG-EXT-MFP)|
|Platform Supported||PC; Mac|

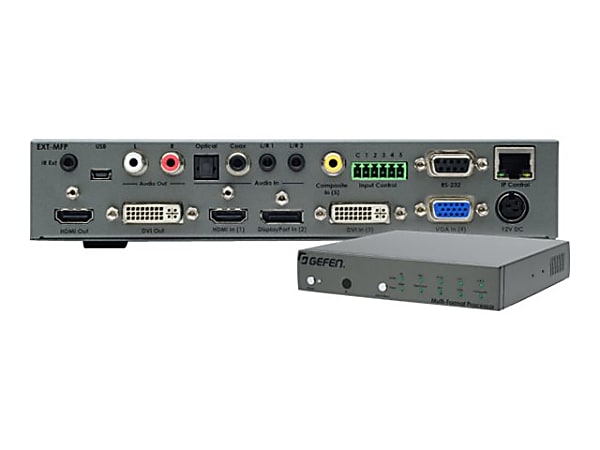

|ports||1 audio line in; 1 audio line out; 1 composite video; 1 DisplayPort; 1 DVI; 1 HDMI; 1 USB; 1 VGA 15-pin D-sub|
|Product Name||Multi-Format Processor (EXT-MFP)|
|warranty length||2-year limited|
|Show More ▾|
