Tripp Lite 42U 4-Post Open Frame Rack Cabinet Square Hole Heavy Duty Caster Item # 496810
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

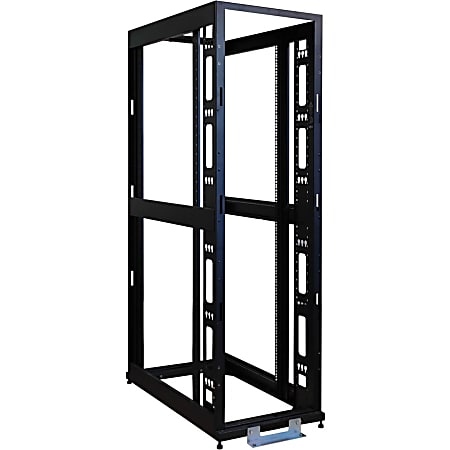

The SR42UBEXPNDNR3 houses 3000 lb of standard 19-inch rack equipment in 42U. It is an expansion model that comes without sides, doors or roof. The front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference and supports tool-less button-mount 0U installation of up to four compatible PDUs and cable managers.All components of the SR42UBEXPNDNR3 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.To simplify deployment, the SR42UBEXPNDNR3 comes with preinstalled 3" casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers.
|Static/Stationary Weight Capacity||3000 lb|
|Rack Width||19 in.|
|Additional Information||Grounding Lug: Front and back door frames; 4 Interior vertical posts with unthreaded square hole openings; Preinstalled heavy duty 3" casters and leveling feet; Rolls through standard 7 foot doorway; Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.; Maximum usable internal depth of 37 inches/94 cm (front to rear rail).|
|Certifications & Standards||EIA-310; IEC 60297-3-100; DIN 41494; UL 60950; NOM (Mexico)|
|package contents||42U 4-Post SmartRack Premium Open Frame Rack (No Sides, Doors or Roof); 50 x M6 Cage Nuts; 50 x M6 Screws; Stabilizing Brackets; Owner's manual|
|Product Name||42U 4-Post SmartRack Premium Open Frame Rack (No Sides, Doors or Roof)|
|brand name||Tripp Lite|
|Dynamic/Rolling Weight Capacity||3000 lb|
|Units Per Pallet||1|
|warranty length||5-year limited|
