Tripp Lite 1M Duplex Multimode 50/125 Fiber Optic Patch Cable LC/SC 3' 3ft 1 Meter Item # 530925
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

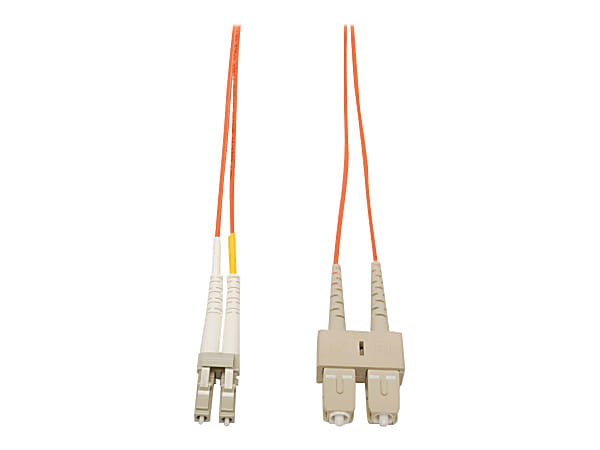

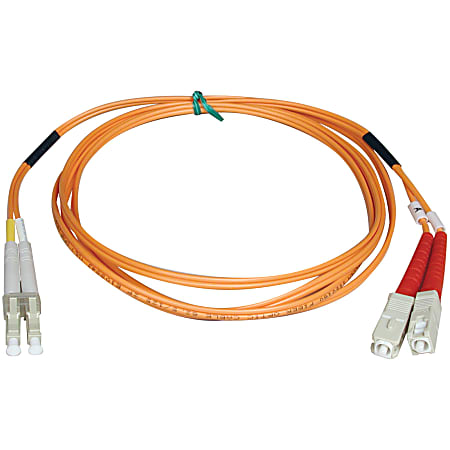

Tripp Lite's 1-meter multimode duplex Fibre Channel SC/LC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on one end, and LC at the other, a PVC jacket, and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 2, 3, 5, 10, 15, 20, 30, and 50 meter lengths.
|Additional Information||Fiber type: all glass graded index; Core diameter: two 50+/-3 microns; CLAD diameter: 125+/-2 microns; Primary Coating Diameter: 245+/-15 microns; Primary coating material: acrylate; Secondary coating diameter: 900+/-50 microns; Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum; Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum; Numeric apeture: .275 nominal; Proof test level: 100,000 PSI|
|brand name||Tripp Lite|
|Cable Characteristic||Patch Cable|
|cable type||Fiber Optic|
|Certifications & Standards||FDDI|
|Connector||2 x SC multi-mode - male|
|Connector (Second End)||2 x LC multi-mode - male|
|Connector on First End||2 x LC Male|
|Connector on Second End||2 x SC Male|
|Core / Cladding Diameter||50 / 125 micron|
|package contents||Duplex Fiber Optic Patch Cable; 1M duplex MMF cable LC/SC 50/125 fiber|
|Type of Fiber Optics||Multimode|
|warranty length||limited lifetime|
