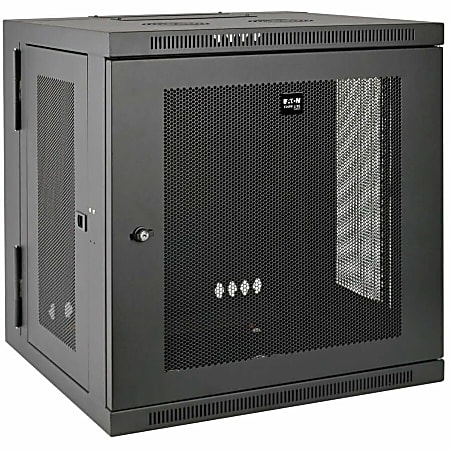

Tripp Lite SRW10US SmartRack 10U Wall Mount Rack Enclosure Cabinet Item # 579202
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 90 kgs. (200 lbs.)The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.The SRW10US comes fully assembled and ready to mount to the wall, or use Tripp Lite’s optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
|Additional Information||Ventilated front door and side panels for increased airflow; Adjustable mounting depths from 3" to 20.5" inches; Top and bottom panel cable access openings|
|brand name||Tripp Lite|
|form factor||Wall Mountable|
|Maximum Weight Capacity||140 lb|
|Rack Width||19 in.|
|warranty length||5-year limited|
|Show More ▾|
10U Wall Mount Rack Enclosure Server Cabinet Hinged
|The SRW10US 10U Wall-Mount Rack Enclosure Cabinet is designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable rack rails with square mounting holes accommodate up to 10U of standard 19" rackmount equipment. Supports a maximum weight capacity of 200lbs. A sturdy hinge between the cabinet and the wall-mount bracket allows the cabinet to swing away from the wall for easy access to equipment and cabling. Top and bottom panels include convenient cutouts for cable routing.|
Front and rear pairs of rails adjust in one-inch increments. Adjustment is quick and convenient—simply unscrew the rails, slide them to the desired depth and restore the screws. Adjustable mounting depths from 3" to 20.5" inches. Square mounting holes and included hardware supports any standard 19-inch rack equipment. Rack spaces are numbered for easy reference.
Easy, Secure Equipment Access
The wall bracket includes a sturdy hinge that allows the cabinet to swing away from the wall for convenient access to equipment and cabling. The swing direction can be reversed by rotating the enclosure 180 degrees before installation. The wall bracket locks to provide secure access. The front door locks to provide secure access and is perforated to promote efficient airflow. This SmartRack enclosure meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) compliance.
The SRW10US includes two lockable, removable side panels for ease of installation and service access. The side panels are perforated to allow generous airflow.
Vented Top and Bottom Panels with Cable Cutouts
The top and bottom panels of the SRW10US are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels are also provided with ports for cable routing through the movable portion of the enclosure or the fixed wall bracket. Removable covers block unused cable ports.
The optional SRCASTER rolling caster kit adapts the enclosure to floor-standing and rollaway applications under desks, tables or counters. Additional SmartRack Cooling Solutions and Rack Accessories are available for a variety of applications: air conditioning, heat removal, airflow management, cable management, rack shelves, security & monitoring, mounting and power.
The SRW10US comes with a 5-year manufacturer's product warranty.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
