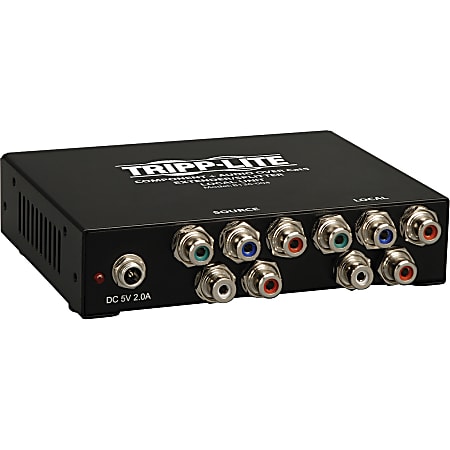

Tripp Lite's B136-004 takes a single Component Video and Stereo Audio signal and splits it to five(1 local, 4 remote). When used in conjunction with a B136-100 remote unit, you can transmit a Component Video(YPbPr) and Stereo Audio signal from any DVD player, PS3, or Cable/Satellite device to up to four displays over a single CAT5, CAT5E, or CAT6 cable. A 1080i(60Hz) Component Video and Stereo Audio signal can be extended up to 91 m (300-ft.) when using 24Awg, Solid Wire UTP cable(Tripp Lite N202-Series); or, up to 122 m (400-ft.) when using Zero-Skew UTP cable(Tripp Lite P524-01K). A 480p(60Hz) Component Video and Stereo Audio signal can be extended up to 152 m (500-ft.) when using 24Awg, Solid Wire UTP cable(Tripp Lite N202-Series); or, up to 213 m (700-ft.) when using Zero-Skew UTP cable(Tripp Lite P524-01K). The number of displays can be increased to up to 13(1 local, 12 remote) by daisychaining 3 B136-004 units together. For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia.
|brand name||Tripp Lite|
|Maximum Operating Distance||700 ft|
|Media Type Supported||Twisted Pair|
|Number of Input Devices Supported||1|
|Number of Output Devices Supported||5|
|ports||1 component video in; 1 component video out; 4 Ethernet (RJ-45)|
|Twisted Pair Cable Standard||Category 6|
|warranty length||1-year limited|
|Weight (Approximate)||1.10 lb|
|What's Included||B136-004 Video Extender; AC Adapter; Cable; Owner Manual|
Split a Single Component Video with Stereo Audio Signal into Five (1 Local, 4 Remote)
|Spread your message far and wide—extend a Component Video with Stereo Audio signal up to 700 feet on up to 13 different monitors! By daisychaining up to three units, this Tripp Lite 4-Port Component Video with Stereo Audio over Cat5/6 Extender/Splitter delivers peak video performance by digital video components across as many as 13 monitors, assuring that you enjoy the crystal-clear picture and full, rich sound that you paid for. When used with 24 Awg Solid Wire cable (Tripp Lite N202-series), the unit can extend a 1080p (60HZ) signal up to 300 ft. and a 480p (60HZ) signal up to 500 ft. Using Zero-Skew UTP cable (Tripp Lite P524-01K) allows for a distance of 400 ft. at 1080p (60HZ) and 700 ft. at 480p (60HZ). The included hardware provides you with a variety of installation options and the plug-and-play convenience makes for an easy, efficient setup.|
The B136-004 splits a single Component Video with Stereo Audio signal into 5 separate (1 local, 4 remote) signals, making it the ideal solution for digital signage applications requiring many displays connected to one source, ranging from retail and point-of-sale displays to trade show presentations. By daisychaining three units together, you can connect up to 13 monitors (1 local, 12 remote) to a single video source. The B136-004 allows for the video and audio sources to be in a secure, remote location for controlled access while still delivering signal to devices in another area.
This Tripp Lite 4-Port Component Video with Stereo Audio over Cat5/6 Extender/Splitter allows extension of a high-quality digital video and audio signal beyond normal cable distances. When used with 24 Awg Solid Wire cable (Tripp Lite N202-series), the B136-004 can extend a 1080p (60HZ) signal up to 300 ft. and a 480p (60HZ) signal up to 500 ft. Using Zero-Skew UTP cable (Tripp Lite P524-01K) allows for a distance of 400 ft. at 1080p (60HZ) and 700 ft. at 480p (60HZ). And, we haven't forgotten the sound! The B136-004 is stereo audio compatible, delivering premium sound quality to every point of your application.
With no software or drivers to install, the B136-004's plug-and-play setup gets your application up and running faster. Simply connect the unit to the video/audio sources and remote receiver (Tripp Lite B136-100), connect the remote receiver to the HD display and watch as the B136-004 provides crystal-clear resolution. The B136-004 is compatible with all digital video sources and all computer operating systems.
Versatile Installation Options
The B136-004 includes mounting hardware enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount. For further flexibility, up to three units can be mounted in 1U of rack space using Tripp Lite's B132-004-RB 19-inch rackmount bracket.
Why Choose Tripp Lite?Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
