Tripp Lite B126-1A1 HDMI over Cat5 Extender kit Item # 580579
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability

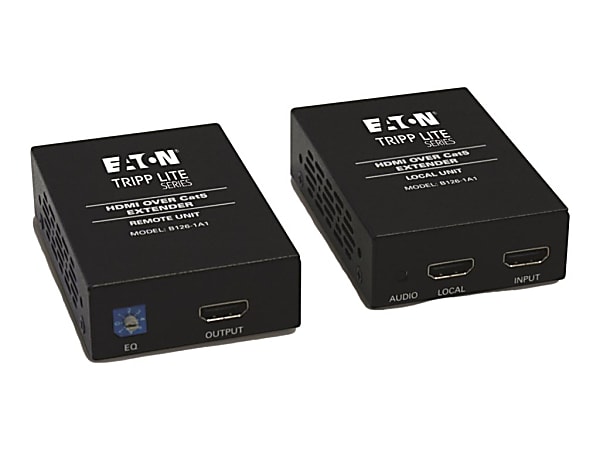

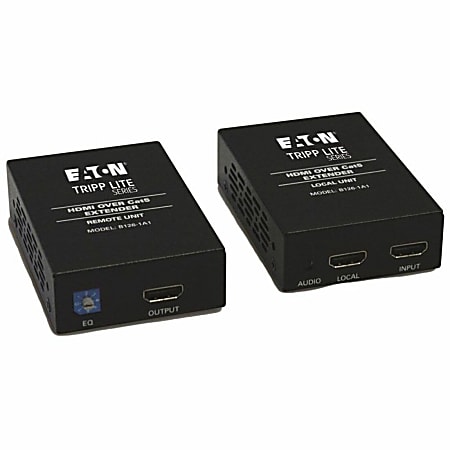

The B126-1A1 transmits a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) The transmitter unit features an HDMI port for the connection of a local monitor. The receiver unit features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM).Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connected the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable.A 1080p (60Hz) signal can be transmitted up to 150 ft. A 1080i (60Hz) signal can be transmitted up to 200 ft. A 3D signal can be transmitted up to 125 ft. Further extend the signal range or add more displays by using a Tripp Lite B126-110 Remote Repeater unit: Add up to three repeaters, with a receiver unit located at the end of the installation, for a total of 4 displays. A 1080p (60Hz) signal can be extended up to 125 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080p (60Hz) signal can be extended up to 500 ft. A 1080i (60Hz) signal can be extended up to 175 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 1080i (60Hz) signal can be extended up to 700 ft. A 3D signal can be extended up to 100 ft. for each repeater in the installation. In a full 4 level chain (3 repeaters, 1 receiver), a 3D signal can be extended up to 400 ft.
|brand name||Tripp Lite|
|Certifications & Standards||HDCP; TAA|
|form factor||Rack-mountable; Wall Mountable|
|Maximum Operating Distance||150 ft|
|Media Type Supported||Twisted Pair|
|Number of Input Devices Supported||2|
|Number of Output Devices Supported||2|
|package contents||B126-1A1 Video Extender/Console; Screwdriver For Adjustment Of Equalization; 2 x Mounting Hardware; 2 x External Power Supply; Owner's Manual|
|ports||2 Ethernet (RJ-45); 1 HDMI in; 2 HDMI out|
|Twisted Pair Cable Standard||Category 6|
|warranty length||1-year limited|
|Show More ▾|
HDMI Over Cat5/Cat6 Active Extender Kit for Top Quality Picture and Sound
|Don't sacrifice quality for distance—extend an HDMI signal up to 200 ft.! This Tripp Lite HDMI over Cat5 Active Extender Kit delivers peak video performance by digital video components, assuring that you enjoy crystal-clear picture and full, rich sound. With the B126-1A1, you can extend a 1080p (60 Hz) signal up to 150 ft. using 24 Awg, Solid Wire UTP cable (Tripp Lite N202-Series) or, for maximum distance, you can extend a 1080i (60 Hz) signal up to 200 ft. from the source. This kit comes with both the local and remote connection units, allowing you to plug in and get started right away without any additional units. With no drivers or software to install, the B126-1A1 provides total plug-and-play convenience.|
The Tripp Lite HDMI over Cat5 Active Extender Kit extends digital video and audio hundreds of feet away from the source, making it the ideal solution for digital signage applications like schools, churches, retail displays, trade show presentations and restaurants. The B126-1A1 allows the video source to be in a secure, remote location for controlled access while still delivering a signal to TVs, projectors and other devices in another area. This kit includes units for both the source and display side of your application.
Premium Stereo Audio
We haven't forgotten the sound! The B126-1A1 is compatible with both stereo and 7.1 channel surround sound. This delivers premium sound quality to every point of your application and adds greater functionality to your displays.
The B126-1A1 can extend a 1080p (60Hz) resolution up to 150 ft. using 24 Awg Solid-Wire cabling like the Tripp Lite N202-series, allowing for maximum flexibility in any application. For maximum distance, the B126-1A1 can carry a 1080i (60Hz) resolution up to 200 ft. when using 24 Awg Solid-Wire cabling.
Built-In Image Equalization
The B126-1A1 features built-in image equalization allowing you to control the way the image appears on your remote HD display. There are seven equalization settings and the unit comes with a screwdriver for easy and convenient adjustment.
With no software or drivers to install, the B126-1A1's plug-and-play setup gets your application up and running faster. Simply connect the local unit to the video source, the remote unit to the display and connect the units to each other to start watching as the B126-1A1 provides crystal clear resolution. The B126-1A1 is compatible with all HDMI video sources and all computer operating systems.
1-Year Product Warranty and Environmentally Responsible Design
For your peace of mind, the B126-1A1 comes with a 1-year product warranty and is TAA-compliant for GSA schedule purchases. As part of Tripp Lite’s commitment to environmental responsibility, it is manufactured in compliance with strict RoHS specifications.
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install
- Built-in equalization control lets you adjust monitor image
- 1-Year Limited Warranty
