Tripp Lite's USB-powered VGA over Cat5 Extender Kit allows you to extend a 1920 x 1440(60Hz) signal up to 106.68 m (350 ft.), or a 1024 x 768(60Hz) signal up to 152.4 m (500-ft.), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY(Cat5) and N222-01K-GY(Cat6). Ideal for digital signage applications, classroom or auditorium projectors, and more. Extender draws needed power from a USB connection at the computer...no external AC adapters required. Receiver unit includes Gain adjustment for brightness/darkness control, and Equalization adjustment for sharp, clear images. VGA "dongles" allow for direct attachment to video equipment...no additional VGA cables required. Kit includes a Transmitter with VGA and USB(power) pigtails, and a Receiver with VGA pigtail. Also included is a small adjustment screwdriver for the EQ and GAIN controls.
|brand name||Tripp Lite|
|Certifications & Standards||TAA; GSA|
|Maximum Operating Distance||500 ft|
|Maximum Video Resolution||1920 x 1440|
|Media Type Supported||Twisted Pair|
|Number of Input Devices Supported||1|
|Number of Output Devices Supported||1|
|ports||2 Ethernet (RJ-45); 1 USB; 1 VGA in; 1 VGA out|
|Twisted Pair Cable Standard||Category 6|
|warranty length||1-year limited|

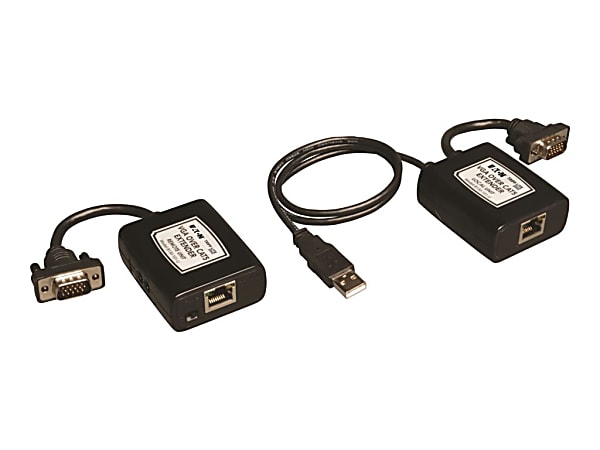

|What's Included||VGA Over Cat5 Transmitter; VGA Over Cat5 Receiver; EQ And GAIN Adjustment Screwdriver|
VGA over Cat5/Cat6 Extender Kit USB Powered up to 500ft
|Don't compromise your application's functionality for distance—extend a VGA signal up to 500 ft.! This Tripp Lite VGA over Cat5/Cat6 Extender Kit delivers peak performance by digital video components, assuring that you enjoy the crystal-clear picture you paid for. With the B130-101-U, you can extend a 1920 x 1440 (60Hz) signal up to 350 ft. or a 1024 x 768 (60Hz) signal up to 500 ft. when using 24 Awg Solid-Wire Cat5e/6 cable (Tripp Lite N202-Series). For maximum image quality between 350 and 500 ft., use Zero-Skew cable such as Tripp Like P524-01K. This kit comes with both the local and remote connection units, allowing you to plug in and get started right away. The unit is completely self-contained, drawing its power from the built-in USB connector, rather than an external power supply. With its innovative dongle design, the B130-101-U can be installed in a variety of ways, adding to the unit's flexibility. With no software or drivers to install, the B130-101-U provides total plug-and-play convenience. The B130-101-U is also RoHS and TAA-compliant.|
The Smart Solution for Digital SignageThe Tripp Lite VGA over Cat5 Extender Kit extends a digital video hundreds of feet away from the source. This makes it the ideal solution for retail and point-of-sale digital signage applications that need multiple remote displays with a single video source. The B130-101-U allows for the video source to be in a secure, remote location for controlled access while still delivering signal to TVs, projectors and other devices in another area. This kit includes units for both the source and display side of your application and is completely self-contained, requiring no external power or extra VGA cables.
Greater Distance—Greater FlexibilityThe B130-101-U can extend a 1920 x 1440 (60Hz) signal up to 350 ft. or a 1024 x 768 (60Hz) signal up to 500 ft. when using 24 Awg Solid-Wire Cat5e/6 cable like the Tripp Lite N202-series. For maximum image quality between 350 and 500 ft., use Zero-Skew cable such as Tripp Lite P524-01K.
Convenient Plug-and-Play Setup
With no software or drivers to install, the B130-101-U's plug-and-play setup gets your application up and running faster. The unit is also entirely self-contained and requires no external power or extra VGA cables in order to complete your installation.
Versatile Installation OptionsWith its innovative dongle-style design, the B130-101-U goes where you need it to. The dongles mean that the transmitter and receiver units can be plugged directly into the video source and remote display, eliminating the need for the extra cost and inconvenience of more VGA cables. The unit draws power directly from a USB port on your video source, allowing it to go anywhere your video source does, without needing access to another AC outlet.
Built-In Image Equalization
The B130-101-U features built-in image equalization allowing you to control the way the image appears on your remote display. There are multiple equalization settings and the unit comes with a screwdriver for easy and convenient adjustment.
The B130-101-U is manufactured in compliance with strict RoHS (Restriction of Hazardous Substances) guidelines to minimize the use of hazardous materials. The unit is also compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
The B130-101-U comes with a 1-year warranty and is TAA-compliant for GSA-schedule purchases.
Why Choose Tripp Lite?Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect and protect your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
