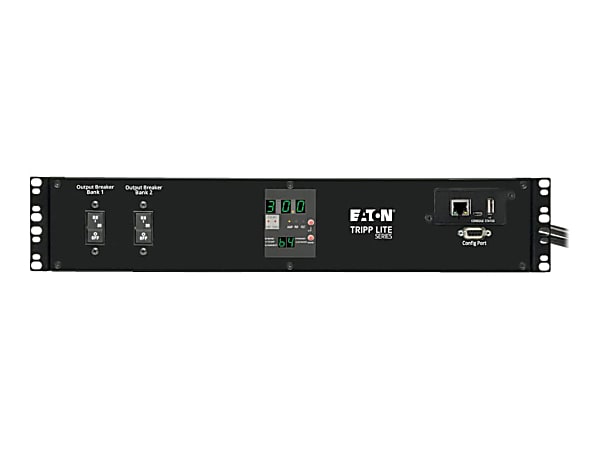

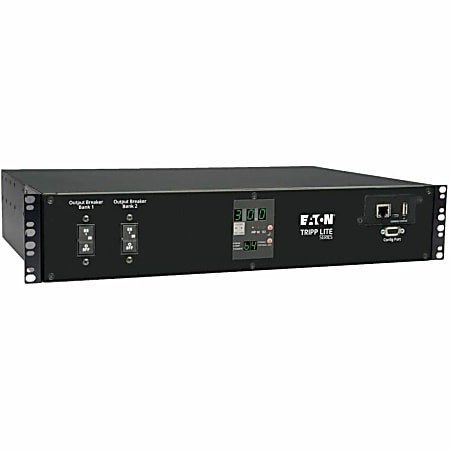

Tripp Lite PDU Switched ATS 208V 30A 16 C13; 2 C19; 1 L6-30R Horizontal 2U TAA Item # 582127
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
|brand name||Tripp Lite|
|Frequency Provided||60 Hz|
|Input Connectors||2 x power NEMA L6-30|
|Input Receptacles||2 x NEMA L6-30P|
|Input Voltage||230 V AC|
|Management||Protocols:HTTP; HTTPS; PowerAlert Network Management System; SMTP; SNMPv1; SNMPv2; Telnet; SSH; FTP; DHCP; BOOTP; NTP|
|Output connectors||19 x power IEC 60320 C13|
|Output Receptacles||1 x NEMA L6-30R; 2 x IEC 60320 C19; 16 x IEC 60320 C13|
|Show More ▾|
Effective Power Distribution with a Digital Meter, Remote Power Monitoring and Control, and Advanced ATS
|Do you need an efficient, cost-effective way to distribute, monitor, and manage power in an IT or industrial environment? Tripp Lite's PDUMH30HVATNET Switched Power Distribution Unit with ATS is the solution! Featuring a SNMP, Telnet or SSH interface, the PDUMH30HVATNET provides full remote power monitoring and control via a secure network or web browser. When used with an optional environmental sensor module (Tripp Lite model ENVIROSENSE), the PDUMH30HVATNET can also provide temperature/humidity and dry contact interface monitoring. The PDUMH30HVATNET also provides integrated automatic transfer switching (ATS). Should the primary power source become unavailable or unstable, ATS will switch the PDU to the secondary power source until primary power is restored and stable. ATS capability makes the PDUMH30HVATNET an ideal choice to distribute power in mission-critical, zero-downtime applications. The PDUMH30HVATNET’s 19 outlets (16 C13, 2 C19 and 1 L6-30R) are individually controllable to enable load shedding, load ramping, and remote rebooting of locked-up servers and other network devices. Its circuit breaker-free format prevents power interruptions due to tripped breakers. These capabilities provide IT personnel with enhanced oversight of facility power and environmental conditions. The PDUMH30HVATNET is configurable for 2U rackmount installation with included hardware. For peace of mind, it comes backed by a 2-year warranty.|
2-Year Limited Warranty
The PDUMH30HVATNET comes with a 2-Year Limited Warranty.
- Ideal solution for powering and monitoring devices in high-density IT environments
- SNMP, Telnet or SSH interface for remote power monitoring and individual outlet control
- ATS provides a secondary power source for mission-critical applications
- Digital meter for on-site monitoring of total PDU load
- Rugged all-metal housing with 19 outlets (16 C13, 2 C19 and 1 L6-30R)
- 2 10-ft. cords with L6-30P plugs
- 2U (horizontal) rackmount installation
- 2-year warranty
What's in the Box?
- 2U ATS PDU
- Rackmount installation brackets
- Cable retention plates and cable ties
- User manual
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosure cabinets, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
