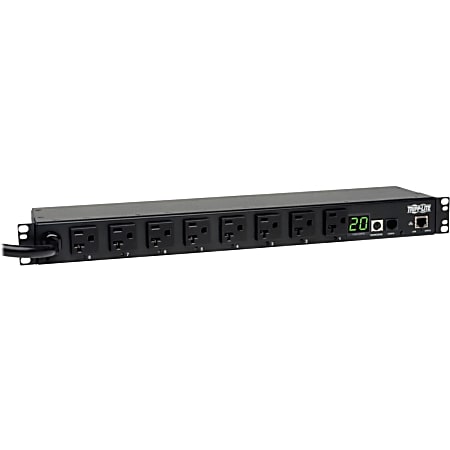

Tripp Lite PDU Switched 120V 20A 5-15/20R 8 Outlet L5-20P Horizontal 1URM TAA Item # 582166
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
|brand name||Tripp Lite|
|Certifications & Standards||TAA Compliant|
|form factor||Horizontal Rackmount|
|Frequency Provided||50/60 Hz|
|Input Connectors||1 x power NEMA 5-20, power NEMA L5-20|
|Input Receptacles||NEMA 5-20P; NEMA L5-20P|
|Input Voltage||100 V AC; 120 V AC; 127 V AC|
|Management||Protocols:HTTP; HTTPS; SMTP; SNMPv1; SNMPv2; Telnet; FTP; DHCP; BOOTP; NTP; SSH|
|Output Receptacles||8 x NEMA 5-15/20R|
|Output Voltage||120 V AC|
|package contents||Switched PDUMH20NET2 8-Outlets PDU; 1U Mounting Brackets; PowerAlert Software CD; Cord Retention Brackets; Configuration Cable; User Manual|
|warranty length||2-year limited|
|Weight (Approximate)||5.99 lb|
|Show More ▾|
Single-Phase Switched Power Distribution with a Digital Meter and Remote Control of 8 Outlets
|Featuring a built-in SNMPWEBCARD, Tripp Lite's PDUMH20NET2 Single-Phase Switched Power Distribution Unit provides full remote power monitoring via a secure network or web browser interface, giving IT personnel around-the-clock oversight of facility power conditions from any location. It’s an efficient way to distribute, monitor and manage power in an IT or industrial environment. The PDUMH20NET2 also has a digital meter to display power consumption, enabling IT personnel to monitor the PDU’s load on site. It’s suitable for 1U (horizontal) rackmount installation and is reversible to face the front or back of the rack. The PDUMH20NET2 is TAA-Compliant for GSA scheduling purposes.|
Unfiltered electrical pass-through makes the PDUMH20NET2 ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures and network closets. It provides 120V single-phase power service via 8 5-15/20R outlets. It has a rugged all-metal reversible housing and a NEMA L5-20P input with 5-20P adapter. Load capacity is 1.9kW.
Remote Individual Outlet Control
For a higher level of network power control, the PDUMH20NET2’s 8 5-15/20R outlets are individually controllable via network or web browser interface. These controllable outlets enable power management tasks, such as load shedding, load ramping, programming power-on and power-off sequences, and rebooting of locked-up network devices, to be performed remotely. Unused outlets can be disabled to prevent the connection of unauthorized equipment loads.
A built-in SNMPWEBCARD enables full remote access for power monitoring, configuration and control via a secure network or web browser interface. Tiered access privileges allow both an administrator and a guest to log in and monitor the PDU via a web browser. It supports notification and logging of all major power events and user-specified alarm thresholds via email or SNMP traps. Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered. When used with an optional ENVIROSENSE environmental sensor module, the PDUMH20NET2 can also perform temperature/humidity and provide rack access notification for up to 4 SRSWITCH door sensors.
The PDUMH20NET2 provides 10/100 Mbps auto-sensing for optimal communication compatibility with a current 10/100 Base-T network. Protocols supported include HTTP, HTTPS, PowerAlert® Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP and NTP. DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses.
The PDUMH20NET2 is equipped with a digital meter that allows IT personnel to monitor the input voltage and load level in real time (either locally or remotely). The meter helps ensure the PDU is used at maximum capacity with no danger of overload. Each outlet has an LED that illuminates to confirm power on/off status.
2-Year Warranty and Environmentally Responsible Design
The PDUMH20NET2 comes backed by a 2-year warranty and is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility. The PDUMH20NET2 is also TAA-Compliant for GSA scheduling purposes.
- Reliable power distribution in high-density IT environments
- Built-in SNMPWEBCARD provides remote power monitoring via a secure network or web browser interface
- Digital meter enables monitoring of total PDU load
- 1U horizontal rackmount installation
- Rugged all-metal reversible housing with 8 5-15/20R outlets
- 2-year warranty
- Single-Phase Switched PDU
- L5-20P input power cord with 5-20P plug adapter
- Cord retention brackets
- Mounting brackets
- Owner’s manual
