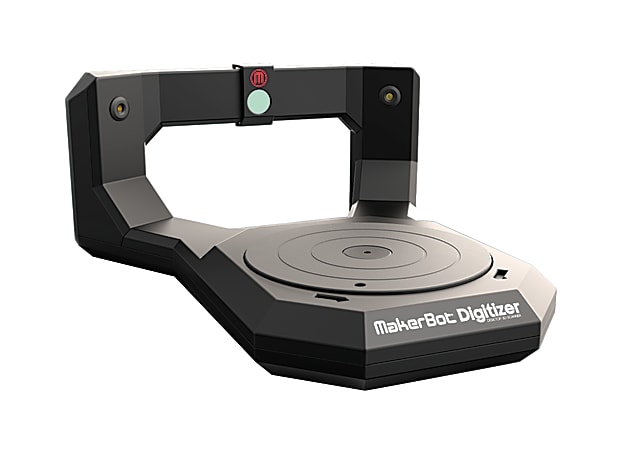

MakerBot Digitizer Desktop 3D Scanner Item # 614937
QUICKLY TURN THE THINGS IN YOUR WORLD INTO 3D MODELS THAT YOU CAN MODIFY, IMPROVE, SHARE, AND 3D PRINT.
With just two clicks, the easy-to-use yet sophisticated software of the MakerBot Digitizer Desktop 3D Scanner creates clean, watertight 3D models that are ready to 3D print. The MakerBot Digitizer is optimized to work seamlessly with your MakerBot® Replicator® Desktop 3D Printer and it's fast. You'll get a standard 3D digital design file in approximately 12 minutes. The MakerBot Digitizer is for early adopters, experimenters, and visionaries who want to be pioneers in desktop 3D scanning.
|Additional Information||Dimensional accuracy: ± 2.0 mm [± 0.079 in]; Detail resolution: 0.5 mm [0.0197 in]; Triangles per 3D model: Approx. 200K; Scan speed: Approx. 12 minutes; Steps per rotation: 800 per rotation; Optimal Light Conditions: Artificial indoor light; Components:Lasers: Two eye-safe Class 1 laser line generators; Camera: 1.3 megapixel CMOS image sensor; Connectivity: USB connection; Stepper Motor: 0.9° step angle with 1/16 micro-stepping; PowerAC Input: 100-240 V, ~2 amps, 50-60 Hz|
|material||Acrylonitrile Butadiene Styrene (ABS)|
|Product Name||Digitizer Desktop 3D Scanner|
|manufacturer||MakerBot Industries, LLC.|
From the Manufacturer|
Optimized for 3D PrintingWith just two clicks, the MakerBot Digitizer Desktop 3D Scanner’s easy to use, yet sophisticated software creates clean, watertight 3D models that are ready to 3D print. We’ve optimized the whole process to work seamlessly with MakerBot Replicator Desktop 3D Printers, but you get standard design files to use on the 3D printer of your choice. You don’t need any design or 3D modeling skills to get started, and it all happens in just minutes.
Remake Your WorldSee things differently. When you scan an object, you give it a brand new life in the digital world. The MakerBot Digitizer Desktop 3D Scanner outputs standard 3D file formats so that you can improve, shape, mold, twist, animate, and transform objects in a third-party 3D modeling program.
Share ItSharing is central to the Next Industrial Revolution, so we built it directly into the MakerBot Digitizer experience. Send your 3D design files to friends, family, and colleagues, or easily upload them to Thingiverse.com, the largest community for sharing 3D designs.
Sophisticated SoftwareBehind the two-click simplicity is a powerful and complex reconstruction process. MakerWare for Digitizer contains an algorithm that connects hundreds of thousands of points into a seamless digital mesh in just seconds. There’s no patching, stitching, or repairing required, so you can skip straight to your creative process. We’ve worked hard to create software that saves you time.
MakerBot Multiscan TechnologyMakerBot MultiScan Technology allows you to scan objects from multiple angles to capture the top, bottom, and hidden parts of your object. You can then “merge” them together to create the best possible 3D model.
DIMENSIONAL ACCURACY: ± 0.079 IN [± 2.0 MM]
DETAIL RESOLUTION: 0.0197 IN [0.5 MM IN]
TRIANGLES PER 3D MODEL: APPROX. 200K
SCAN SPEED: APPROX. 12 MINUTES
STEPS PER ROTATION: 800 PER ROTATION
OPTIMAL LIGHT CONDITIONS: ARTIFICIAL INDOOR LIGHT
MAXIMUM WEIGHT ON TURNTABLE: 6.6 LBS [3 KG]
INCLUDED SOFTWARE: MAKERWARE FOR DIGITIZER
EXPORTED FILE TYPES: STL, THING
OPERATING SYSTEMS: WINDOWS (7+); MAC OSX (10.7+); LINUX (UBUNTU 12.04+)
LASERS: TWO EYE-SAFE CLASS 1 LASER LINE GENERATORS
CAMERA: 1.3 MEGAPIXEL CMOS IMAGE SENSOR
ENCLOSURE MATERIAL: PC ABS
CONNECTIVITY: USB CONNECTION
STEPPER MOTOR: 0.9° STEP ANGLE WITH 1/16 MICRO-STEPPING
PRODUCT DIMENSIONS: 18.7 X 16.2 X 8.0 IN [47.5 L X 41.1 W X 20.3 H CM]
SHIPPING DIMENSIONS: 20.5 X 18.5 X 9.6 IN [52.1 L X 47.0 W X 24.4 H CM]
PRODUCT WEIGHT: 4.7 LBS [2.1 KG]
SHIPPING WEIGHT: 11.0 LBS [5.0 KG]
STORAGE TEMPERATURE: 0°–55° C [32°–90° F]
OPERATING TEMPERATURE: 60°–90° F [15°–32° C]
AC INPUT: 100–240 V, ~2 AMPS, 50–60 HZ
POWER REQUIREMENTS: 12 V DC @ 2.08 AMPS
