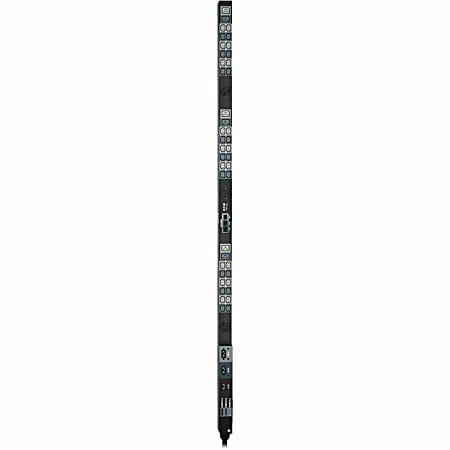

Tripp Lite PDU 3-Phase Metered 208V 14.4kW 36 C13; 6 C19; 3 L6-30R 0URM Item # 628254
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
|brand name||Tripp Lite|
|form factor||Vertical Rackmount|
|Frequency Provided||60 Hz|
|Input Connectors||1 x Hubbell CS8365C|
|Input Receptacles||Hubbell CS8365C|
|Input Voltage||208 V AC|
|Output Receptacles||6 x IEC 60320 C19; 36 x IEC 60320 C13; 3 x NEMA L6-30R|
|Output Voltage||208 V AC|
|package contents||Metered PDU3MV6H50A 45-Outlets PDU; Cord Retention Brackets; Rack Mounting Brackets; Owner's Manual|
|Power Rating||14.40 kVA|
|protection type||Overload Protection|
|warranty length||2-year limited|
|Show More ▾|
Built-In Digital Meters Provide Visual Monitoring of 3-Phase Power Distribution
|Efficiently distribute and monitor power in data center environments with Tripp Lite's PDU3MV6H50A 3-Phase Metered Power Distribution Unit. Unfiltered electrical pass-through makes the PDU3MV6H50A ideal for distributing alternate waveform utility, UPS or generator power in rack enclosures and network closets. And with three digital meters, you’ll always know the current draw of connected equipment.|
The PDU3MV6H50A provides reliable 208V power service via 45 outlets: 36 C13 outlets, 6 C19 outlets and 3 L6-30R outlets. There are three double-pole circuit breakers: a 30A breaker protects the 3 L6-30R outlets, a 20A breaker protects 18 C13 outlets and 3 C19 outlets, and a second 20A breaker protects 18 C13 outlets and 3 C19 outlets. This PDU has a rugged all-metal housing and a 6 ft. power cord with a Hubbell CS8365C 50A twist-lock plug. Load capacity is 14.4kW.
Digital Load Meters for Real-Time Visual Monitoring
Three digital load meters provide the current level (in amps) of connected equipment in each load bank. These meters help ensure the PDU is used at maximum capacity with no danger of overload.
The PDU3MV6H50A is easy to integrate with a wide range of data center and network applications. It can be configured for 0U (vertical) rack installation with the included mounting brackets, and it also supports toolless button-mount vertical installation in compatible rack enclosures. Vertical 0U installation reduces cord clutter and promotes efficient airflow through the rack.
The PDU3MV6H50A is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
2-Year Warranty and Environmentally Responsible Design
The PDU3MV6H50A comes backed by a 2-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Reliable power distribution in data center environments
- 3 digital meters display current draw of connected equipment
- Compact, 0U vertical rackmount installation
- Rugged all-metal housing with 45 total outlets (36 C13, 6 C19 and 3 L6-30R)
- Cord retention brackets secure equipment power cords
- 2-year warranty
What’s in the Box
- 3-Phase Metered PDU
- Cord retention brackets
- Spare installation buttons
- Mounting brackets
- Owner’s manual
