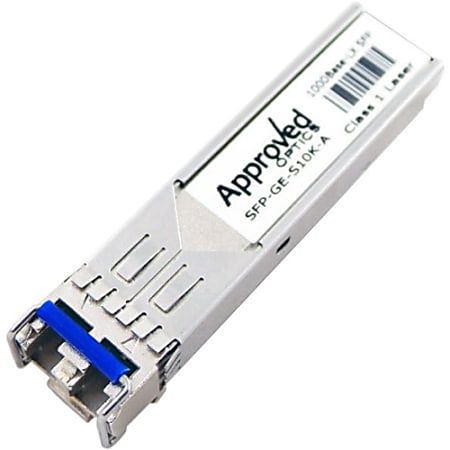

Approved Optics SFP-GE-S10K-A is a single-mode transceiver - a small form factor pluggable module for bi-directional serial optical data communications such as Gigabit Ethernet 1000BASE-LX and Fiber Channel 1x SM-LX-L FC-Pl. This module is designed for single-mode fiber and operates at a nominal wavelength of 1310nm.
The transmitter section uses a multiple quantum well laser and is a class 1 laser compliant, according to International Safety Standard IEC-60825. The receiver section uses an integrated GaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
|Application/Usage||Data Networking; Optical Network|
|brand name||AMC Optics|
|Ethernet Technology||Gigabit Ethernet|
|Fiber Mode Supported||Single-mode|
|Fiber Optic Cable Standard||9 µm|
|Interfaces/Ports Details||1 x LC Duplex 1000Base-LX Network|
|maximum data transfer rate||1.25 Gbit/s|
|Media Type Supported||Optical Fiber|
|warranty length||limited lifetime|
