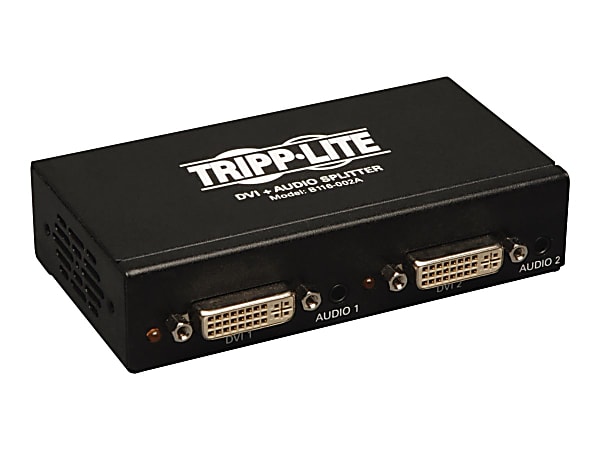

Tripp Lite 2-Port DVI Single Link Video / Audio Splitter / Booster DVIF/2xF Item # 653803
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
ith Tripp Lite's 2-Port DVI + Audio Splitter, you can transmit a DVI-D Single Link video signal and 3.5 mm. audio signal to two sets of monitors and speakers. Supports DVI Single Link computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p. The unit is HDCP, EDID, and DDC compatible. A built-in signal booster allows you to extend the distance between the splitter and connected monitors past the 16 ft.(5 m.) distance limitation.For source video resolutions anywhere from 1600 x 1200 @ 60Hz to 1920 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 49 ft.(15 m.). This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 65 ft.(20 m.) from the splitter, and 16 ft.(5 m.) from the connected monitor.For source video resolutions lower than 1600 x 1200 @ 60Hz - The distance between the splitter and the connected monitor/speakers must not exceed 65 ft.(20 m.). This distance can be extended by using a B120-000-SL DVI extender. The B120-000-SL can be located up to 114 ft.(35 m.) from the splitter, and 16 ft.(5 m.) from the connected monitor.The number of connected monitors/speakers can be expanded by cascading up to three levels of splitters. Plug and Play...no software or drivers required. Mounting hardware is included with the product, and allows it to be rackmounted, wallmounted or pole-mounted.
|brand name||Tripp Lite|
|Maximum Operating Distance||16.40 ft|
|Maximum Video Resolution||1920 x 1200|
|Number of Displays Supported||2|
|Number of Input Devices Supported||1|
|ports||1 DVI in; 2 DVI out|
|warranty length||1-year limited|
|What's Included||B116-002A TAA/GSA Compliant DVI Splitter; External Power Supply; Owner's Manual|
2-Port DVI Single Link Video / Audio Splitter / Booster for Up to 8 Displays
|Don't sacrifice quality for quantity—extend a high-quality DVI Single Link video with a 3.5 mm Stereo Audio signal to up to eight different displays and sets of speakers. By cascading up to three levels of units, this Tripp Lite 2-Port DVI Single Link video with 3.5 mm Stereo Audio Splitter delivers peak video performance by DVI-enabled digital video components across as many as eight monitors. This makes it ideal for digital signage applications in schools, churches, retail displays, trade show presentations and more. For resolutions of 1600 x 1200 (60Hz) and above, the splitter can be placed up to 16 ft. away from the source and 49 ft. away from a connected monitor. These distances can be increased using the optional B120-000 DVI signal extender. The built-in signal booster can support resolutions of up to 1920 x 1200 (60Hz), assuring that you enjoy crystal-clear picture at all points of your installation. The B116-002A is completely plug-and-play for convenience, making it easy and efficient to setup even when cascading multiple units. The B116-002A features a green, RoHS-compliant design that limits the use of hazardous materials in its construction.|
The B116-002A splits single DVI Single Link with 3.5 mm Stereo Audio signal into two separate signals, making it the ideal solution for digital signage applications requiring many displays connected to one source ranging from schools and churches to retail, point-of-sale displays and trade show presentations. By cascading three levels of units together, you can connect up to eight monitors and sets of speakers to a single source. The B116-002A allows the video and audio sources to be in a secure, remote location for controlled access while still delivering a signal to devices in another area.
This Tripp Lite 2-Port DVI Single Link video with 3.5 mm Stereo Audio Splitter allows extension of a DVI signal beyond regular distance limitations. With its built-in signal booster, the B116-002A can extend a 1920 x 1200 (60Hz) resolution up to 49 ft. away from its source. The splitter can be placed up to 16 ft. away from the video source and up to 49 ft. away from a connected monitor. These distances can be further increased with the optional DVI signal extender (B120-000). For maximum distance and performance, use Tripp Lite DVI cables like the P560-010-A. The B116-002A allows for cascading up to three levels of units for up to eight additional connected displays.
Premium Stereo Audio
We haven't forgotten the sound! The B116-002A also splits a Stereo Audio signal via its 3.5 mm jacks and delivers premium sound quality to every point of your application. This adds even greater functionality to your displays
With no software or drivers to install, the B116-002A's plug-and-play setup gets your application up and running faster. Simply connect the unit's external power supply, then connect the unit to the video source and to the remote displays and watch as the B116-002A provides crystal-clear resolution.
Versatile Installation Options
The B116-002A includes mounting hardware, enabling it to be installed in any venue. Mounting options include wall-mount, rackmount and pole mount.
