This item is no longer available

Shop our Motherboards category

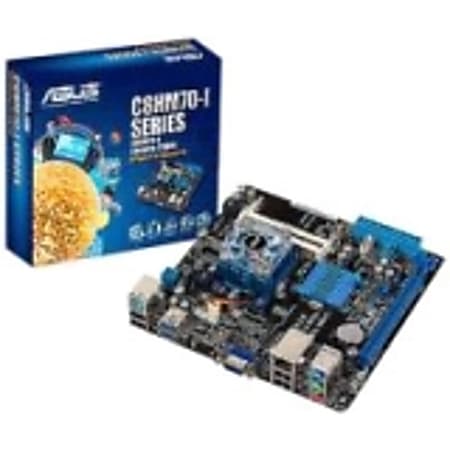

Asus C8HM70-I/HDMI Desktop Motherboard - Intel HM70 Express Chipset - Intel Celeron 847 Dual-core (2 Core) 1.10 GHz Item # 673822

    Back to Menu

    Item # 673822
    Manufacturer # QY7865
    Number of SATA Interfaces 2
    Number of PS/2 Ports 1
    Onboard LEDs Header Yes
    Total Number of Onboard USB Ports 2
    Power Supply Supported ATX12V
    Memory Speed Supported 1.33 GHz; 1.07 GHz
    HDMI Yes
    Number of Network (RJ-45) Ports 1
    Certifications & Standards ACPI 2.0a
    Total Number of USB Ports 6
    Integrated Processor Speed 1.10 GHz
    Graphics Controller Manufacturer Intel
    Onboard Audio Header Yes
    width 6.7"
    Sound Controller Model 887VD
    Number of Memory Slots 2
    Audio Line In Yes
    depth 6.7"
    Product Name C8HM70-I/HDMI Desktop Motherboard
    Number of PCI Express x16 Slots 1
    Total Number of PCI Express Slots 1
    Graphics Memory Accessibility Shared
    manufacturer ASUS Computer International
    64-bit Processing Yes
    Integrated Processor Type Celeron
    Integrated Processor Manufacturer Intel
    VGA Yes
    Audio Line Out Yes
    Integrated Processor Core Dual-core (2 Core)
    brand name ASUS
    Maximum Memory 16 GB
    controller type Serial ATA/300; Serial ATA/600
    Audio Channels 7.1
    Number of Onboard USB 2.0 Ports 2
    Number of USB 3.0 Ports 2
    Gigabit Ethernet Yes
    eco-label/standard RoHS
    Network (RJ-45) Yes
    Microphone Port Yes
    Number of USB 2.0 Ports 4
    PS/2 Port Yes
    Memory Standard DDR3-1333/PC3-10600; DDR3-1066/PC3-8500
    Memory Form Factor SoDIMM
    Graphics Memory Technology DDR3 SDRAM
    Integrated Processor Model 847
    Number of Total Expansion Slots 1
    Integrated Processor Cache 2 MB
    Chipset Model HM70 Express
    Sound Controller Manufacturer Realtek
    Chipset Manufacturer Intel
    Product Type Desktop Motherboard
    form factor Mini ITX
    Memory Technology DDR3 SDRAM
    Onboard Video CPU Dependent Video
    Number of HDMI Outputs 1
    PCI Express Standard PCI Express 2.0
    warranty length 3-year limited
    model name C8HM70-I/HDMI

    Back to Menu

    Back to Menu

    Back To Top

    From the Manufacturer|Powered by Answers™

    Thank You Is the information in this section helpful? Yes / No

    SuperSpeed USB (USB 3.1 Gen 1)

    • SuperSpeed USB delivers effortless audio/video streaming, music and photos to your home, office, car, and anywhere in between. SuperSpeed USB transfers data up to 5Gbps, up to 10X faster than Hi-Speed USB. SuperSpeed USB works with all USB products. It’s backward compatible with USB 2.0.

      USB 3.1 Specification

      The USB 3.1 specification includes definitions for both 5Gbps (Gen 1) and 10Gbps (Gen 2) data rates:
      • USB 3.1 Gen 1 – SuperSpeed USB (Products signal at 5Gbps)
      • USB 3.1 Gen 2 – SuperSpeed USB 10Gbps (products signal at 10Gbps)

      Note: The terms USB 3.1 Gen 1 and USB 3.0 are synonymous
    • What the Logos Mean to You

      To use the SuperSpeed USB logo and icons, products must pass USB-IF certification testing to ensure they are built to meet the USB specifications and interoperate with other USB devices. This means you can be confident that Certified USB products will work with other Certified USB products. This content is being provided for educational purposes only and does not imply that the associated product has been certified. To confirm if a device has been certified, visit the website or look for the Certified SuperSpeed USB logo on the product or product packaging.
