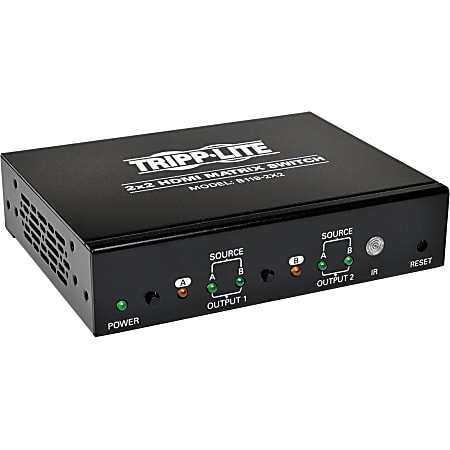

Tripp Lite 2x2 HDMI Matrix Switch Video & Audio 1920x1200 at 60Hz / 1080p Item # 674208
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite's B119-2X2 is a 2x2 HDMI Matrix Switch that routes high definition video from any two HDMI sources to any two HDMI displays. It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 60Hz. The 2x2 Matrix eliminates the need to disconnect and reconnect HDMI sources. It works with any HDMI source that connects to an HDMI display, and each source is accessible at all times by any display by selecting it with an IR remote, or using the RS232 port to switch the unit.
|brand name||Tripp Lite|
|Certifications & Standards||TAA Complaint|
|Graphics Modes||Full HD|
|Input Voltage||5 V DC|
|Maximum Operating Distance||25 ft|
|Maximum Video Resolution||1920 x 1080|
|Number of Displays Supported||2|
|Number of Input Devices Supported||2|
|package contents||2x2 HDMI Matrix Switch; External Power Supply (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 3A); 3.5 mm to DB9 Adapter Cable; Mounting Hardware; Remote Control; Owner's Manual|
|ports||2 HDMI in; 2 HDMI out; 1 serial|
|warranty length||1-year limited|
|Weight (Approximate)||1.45 lb|
|Show More ▾|
Share Multiple HDMI Sources Between Multiple Monitors
Tripp Lite’s B119-2x2 HDMI Matrix Switch allows you to route
high-definition video from any 2 HDMI sources to any 2 HDMI displays and
switch between them. Any input can be routed to any output or the same
input can be routed to both outputs—ideal for home and business theater
applications. The B119-2x2 supports video resolutions up to 1920 x1080
(1080p) @ 60Hz. For peace of mind, the B119-2x2 comes backed by a
one-year warranty and has a green, RoHS-compliant design. It’s compliant
with the Federal Trade Agreements Act (TAA) for GSA schedule purchases.
Switching between inputs is easy with the click of a button. The B119-2x2 features a remote control that allows you to quickly switch between inputs from anywhere in the room. You can also use the pushbuttons on the switch to make changes or the RS-232 serial connection. The B119-2x2 supports resolutions up to 1080p, ensuring that you won’t have to sacrifice quality for increased functionality. This high resolution means your connection will be comparable to a directly connected device. The B119-2x2 is compatible with HDCP and EDID.
The included mounting hardware gives you a variety of mounting options to fit your application. The B119-2x2 can be wall-mounted, rackmounted or pole mounted.
1-Year Warranty and Environmentally Responsible Design
The B119-2x2 is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility. It’s also compliant with the Federal Trade Agreements Act (TAA) for GSA schedule purchases. For peace of mind, the B119-2x2 comes backed by a one-year warranty.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, protect, manage, house, cool, connect and mount your equipment. With a large selection of connectivity products, Tripp Lite has everything from USB hubs and reversible USB cables to fiber-optic cables and over Cat5e/Cat6 signal extenders. Whether you need to connect high-speed networks to switches, routers and servers in your data center, or send high-resolution video signals to displays and digital signs, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
