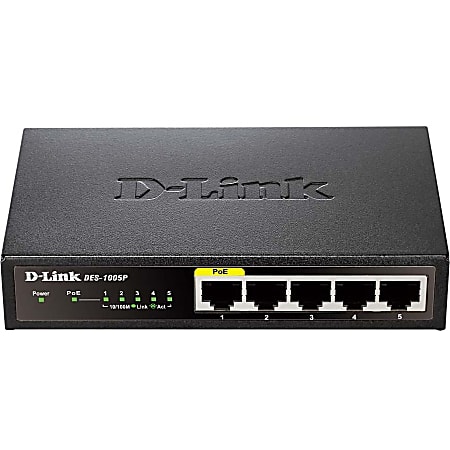

D-Link DES-1005P 5 Port 10/100 Desktop Switch with 1 PoE Port
This item is in your cart

D-Link DES-1005P 5 Port 10/100 Desktop Switch with 1 PoE Port

Item # 727724
Your Price
$60.99 $60.99
/ each
  • Quantity

In Stock

Free delivery

Estimated delivery 3-5 business days

Pricing, Assortment and Availability

The DES-1005P PoE Fast Ethernet Desktop switch provides a cost-effective way for businesses to benefit from Power over Ethernet (PoE) technology by allowing users to power up devices such as wireless Access Points, network cameras or IP phones directly from the network cables. The switch also gives you the opportunity to add additional Ethernet devices such as computers, printers and Network Attached Storage (NAS) onto your network. The DES-1005P is equipped with one PoE port and integrates D-Link's Green Ethernet technology to save power when the switch is not in use. Its fanless design makes it completely silent so it is ideal for operation in offices, libraries or meeting rooms.

Back to Menu

Item # 727724
Manufacturer # 3213122
brand name D-Link
Bypass No
Certifications & Standards FCC Class B; ICES-003 Class B; cUL; CE; IEEE 802.3af; IEEE 802.3; IEEE 802.3u; ANSI/IEEE 802.3; IEEE 802.3x; IEEE 802.1p; IEEE 802.3az
depth 3.3"
Ecolabel RoHS
Ethernet Technology Fast Ethernet
form factor Desktop; Wall Mountable
height 1.1"
Input Voltage 48 V DC
Layer Supported 2
LRE Port No
Manageable No
Management Port No
manufacturer D-Link Systems, Inc
Media Type Supported Twisted Pair
model name DES-1005P
Modular No
MTBF 324616 Hour
Network Technology 10/100Base-TX
Number of Network (RJ-45) Ports 4
Number of PoE (RJ-45) Ports 1
PoE (RJ-45) Port Yes
power source AC Adapter
Product Name DES-1005P 5 Port 10/100 Desktop Switch with 1 PoE Port
Product Type Ethernet Switch
Redundant Power Supply No
Stack Port No
Token Ring Port No
Total Number of Network Ports 5
Uplink Port
USB No
warranty length limited lifetime
width 5.5"

Back to Menu

Back to Menu

Back To Top

From the Manufacturer|Powered by Answers™

Thank You Is the information in this section helpful? Yes / No

Description

  • Overview

    The D-Link DES-1005P 5-port 10/100 Unmanaged Desktop Switch with one PoE Port allows you to easily connect a Power over Ethernet (PoE) device such as a wireless access point (AP), IP camera, or IP phone to your existing network. The switch also gives you the opportunity to add additional Ethernet devices such as computers, printers, and Network Attached Storage (NAS) onto your network. This compact PoE switch operates quietly, making it ideal for use in virtually any room or office.
  • Power over Ethernet (PoE)

    The first port of the DES-1005P supports the IEEE 802.3af PoE standard. The port supplies a total PoE budget of 15.4 watts, allowing users to attach any IEEE 802.3af compliant device to the DES-1005P. Use PoE for applications that are far from power outlets or when you want to minimize the clutter of extra cables.
  • Conserves energy

    The DES-1005P makes use of D-Link Green™ eco-friendly technology, providing energy savings, reduced power consumption, and a longer product life without sacrificing operational performance or functionality. This switch helps to conserve energy through methods such as Link Status and Cable Length Detection. The Link Status feature automatically powers down ports that have no link, allowing the switch to save substantial amounts of energy by cutting power for unused ports or ports connected to computers that have been shut down. It can also detect connected cable lengths, and adjust power usage accordingly, helping you save energy without affecting networking performance. In addition, the fan-less design extends the switch’s life and also reduces noise.
  • Auto MDI/MDIX crossover

    All ports in the DES-1005P support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
  • Limited Lifetime Warranty

    D-Link offers a Limited Lifetime Warranty on the DES-1005P unmanaged PoE switch to further its commitment to product quality and long-term customer confidence.

Features

High-Speed Networking

• Five 10/100 Mbps Fast Ethernet Ports

• Full/half-duplex for Ethernet/Fast Ethernet speeds

Power over Ethernet

• IEEE 802.3af compliant PoE on port 1

• 15.4W PoE power budget

Reliability

• IEEE 802.3x flow control

• Store-and-forward switching scheme

• Fanless – silent operation

Easy Setup

• Plug-and-play installation

• Auto MDI/MDIX crossover for all ports

Images

Specifications

Technical Specifications

General

Number of Ports

  • Five 10/100 Mbps Ports including one PoE enabled

Switching Capacity

  • 1 Gbps

Standards

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • ANSI/IEEE 802.3 NWay Auto-negotiation
  • IEEE 802.3x Flow Control
  • IEEE 802.1p QoS

PoE Features

  • Supports IEEE 802.3af
  • Supplies up to 15.4 watts of power to PD

Data Transfer Rates

  • Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
  • Fast Ethernet
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)

Network Cables

  • 10BASE-TUTP CAT 3/4/5/5e (100 m max.)
  • EIA/TIA-586 100-ohm STP (100 m max.)
  • 100BASE-TXUTP CAT 5/5e (100 m max.)
  • EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange

  • Auto MDI/MDIX adjustment for all ports

LED Indicators

  • Per port: Link/Activity/Speed/PoE Status
  • Per device: Power/PoE Max

Transmission Method

  • Store-and-forward

MAC Address Table

  • 2K Entries per device

MAC Address Learning

  • Automatic update

Packet Filtering/Forwarding Rates

  • Ethernet: 14,880 pps per port
  • Fast Ethernet: 148,800 pps per port

RAM Buffer

  • 64 KBytes per device

D-Link Green

  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Link status detection power saving
  • Cable length detection power saving

Physical

Power Inputs

  • Switching 48 V/0.5 A Level V power adapter

Power Consumption

  • Power On (Standby):DC input: 0.9 watt
  • AC input: 1.8 watts
  • Maximum (PoE Off)DC input: 2.05 watts
  • AC input: 2.7 watts
  • Maximum (PoE On)DC input: 17.29 watts
  • AC input: 20.2 watts

MTBF

  • 324,616 hours

Operating Temperature

  • (32 to 104 ˚F) 0 to 40 ˚C

Storage Temperature

  • 104 to 158 ˚F (-40 to 70 ˚C)

Operating Humidity

  • 0% to 95% RH non-condensing

Storage Humidity

  • 0% to 95% RH non-condensing

Device Dimensions (W x D x H)

  • 5.5 x 3.3 x 1.1 inches (140 x 85 x 28 mm)

Certifications

  • FCC Class B
  • ICES-003 Class B
  • cUL

Warranty

  • Limited Lifetime

Ordering Information

  • DES-1005P     5-Port 10/100 Unmanaged Desktop Switch with One PoE Port
