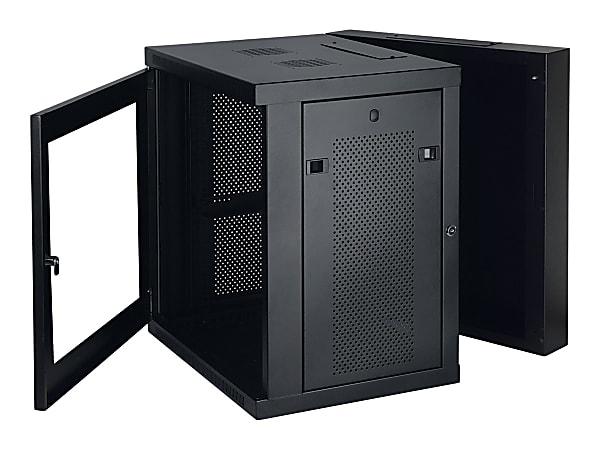

Tripp Lite SRW12USG SmartRack 12U Wall-Mount Rack Enclosure Cabinet with Plexiglas Front Door Insert Item # 730059
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The SRW12USG SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 90 kgs. (200 lbs.)The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.The SRW12USG comes fully assembled and ready to mount to the wall, or use Tripp Lite’s optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.
|Additional Information||Hinged cabinet swings away from wall bracket for easy equipment and cable access|
|brand name||Tripp Lite|
|form factor||Wall Mountable|
|material||Plexiglas Front Door|
|Maximum Weight Capacity||140 lb|
|package contents||SmartRack SRW12USG Wall Mount Enclosure Rack Cabinet; Convenient Cutouts for Cable Routing|
|Rack Width||19 in.|
|warranty length||5-year limited|
|Show More ▾|
Secure and Organize Your Rack Equipment, Even In Space-Constrained Environments
|Tripp Lite's SRW12USG Wall Mount Rack Enclosure Cabinet is the ideal storage solution for standard rackmount equipment in applications with limited floor space. Constructed with a hinged wall mounting bracket and a sturdy steel frame, it can support a maximum weight capacity of 200lbs and provides 12U of rack space. Four adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment. To allow easy access to rackmounted equipment, the enclosure cabinet is hinged to swing away from the wall mounting bracket. The SRW12USG also features a lockable, reversible front door with Plexiglas window for convenient visual monitoring of equipment readouts. Side panels are perforated to assure generous airflow to keep equipment operating safely. The side panels are removable for easy access to equipment. The top and bottom panels of the enclosure include convenient cable routing ports while still meeting all requirements towards Payment Card Industry Data Security Standard compliance. The SRW12USG ships fully assembled, and comes with a 5-year manufacturer's product warranty.|
Front and rear pairs of rails adjust in one-inch increments. Adjustment is quick and convenient—simply unscrew the rails, slide them to the desired depth and restore the screws. Square mounting holes and included hardware support any standard 19-inch rack equipment. Rack spaces are numbered for easy reference. Adjustable mounting depths from 3" to 20.5" inches
Modular Side Panels
The SRW12USG includes two lockable, removable side panels for ease of installation and service access. The side panels are perforated to allow generous airflow.
The wall bracket includes a sturdy hinge that allows the SRW12USG to swing away from the wall for convenient access to equipment and cabling from all four sides. The swing direction of the enclosure and door can be reversed by rotating the enclosure 180 degrees before installation. The wall bracket locks to provide secure access. The front door locks to provide secure access and has a Plexiglas window for convenient visual monitoring of equipment readouts.
Vented Top and Bottom Panels with Cable Ports
The top and bottom panels of the SRW12USG are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels are also provided with ports for cable routing through the movable portion of the enclosure or the fixed wall bracket. Removable covers block unused cable ports.
Keeping equipment and information secure within enclosures is a growing priority in today's network applications. The SRW12USG meets all of the strict security requirements set forth by the Payment Card Industry Data Security Standard, and helps you work towards PCI DSS compliance.
Founded in 1922 in Chicago, Illinois, Tripp Lite is a leading manufacturer of products to power, connect, house and protect your equipment. From the largest data center to the smallest home office, Tripp Lite products keep your equipment running effectively and efficiently. Whether you need to supply power to servers and have reliable battery backup, connect high-resolution video sources to displays and digital signs, or organize and secure IT equipment in rack enclosures, Tripp Lite has the complete solution. Plus, before and after your purchase, our Chicago-based, in-house technical support specialists are available to assist you by phone, email and live chat. With over 90 years of quality products and service, Tripp Lite is a brand you can trust.
