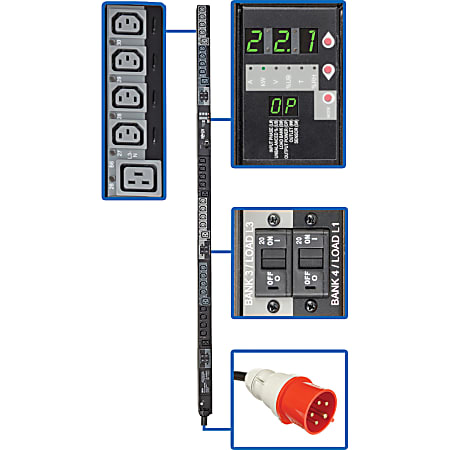

Tripp Lite PDU 3-Phase Switched 220V/230V 22.1kW C13 C19 IEC309 32A Red 0U Item # 735247
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Tripp Lite 3 phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption per-phase or per-receptacle. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps per-phase or per-receptacle can be displayed locally via visual meter or remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip. Highly accurate current metering offers +/-1% billing-grade current monitoring and recording ability for each output phase, breakered load bank and individual outlet.
|brand name||Tripp Lite|
|Certifications & Standards||UL60950-1; CSA22.2; NOM; FCC Class A|
|cord length||6 ft|
|form factor||Vertical Rackmount|
|Frequency Provided||50/60 Hz|
|Input Connectors||1 x power IEC 60309 32A|
|Input Current||32 A|
|Input Receptacles||IEC 309 32A Red 3P+N+E|
|Input Voltage||400 V AC; 380 V AC|
|Management||Protocols: HTTP; HTTPS; SMTP; SNMPv1; SNMPv2; Telnet; SSH; FTPP; DHCP; BOOTP; NTP|
|Output Receptacles||24 x IEC 60320 C13; 6 x IEC 60320 C19|
|Output Voltage||230 V AC|
|package contents||Switched PDU3XVSR6G32B 30-Outlets PDU; Plug-Lock Cable Retention Inserts; Spare Installation Buttons (2 9mm / 4 6mm); Mounting Brackets; Configuration Cable; Owner's Manual|
|Power Rating||22.10 kVA|
|protection type||Overload Protection|
|warranty length||2-year limited|
|Weight (Approximate)||15.87 lb|
|Show More ▾|
220/230V 3-Phase Power Distribution with a Digital Meter and Remote Control of 30 Outlets
|Do you need an efficient, cost-effective way to distribute, monitor and manage power in an IT or industrial environment? Tripp Lite's PDU3XVSR6G32B 3-Phase Switched Power Distribution Unit is the ideal solution. Featuring a built-in SNMPWEBCARD, the PDU3XVSR6G32B provides full remote power monitoring via a secure network or web browser interface. When used with an optional environmental sensor module (Tripp Lite model ENVIROSENSE), the PDU3XVSR6G32B can also perform temperature/humidity and dry contact interface monitoring. These capabilities provide IT personnel with around-the-clock oversight of facility power and environmental conditions from any remote location. The PDU3XVSR6G32B provides reliable 220/230V power service via 30 total outlets (24 C13 and 6 C19) and has a digital meter that displays power consumption, enabling IT personnel to monitor the PDU’s load on site. It’s suitable for 0U (vertical) rackmount installation and supports toolless button-mount vertical installation in compatible rack enclosures. For peace of mind, the PDU3XVSR6G32B comes backed by a 2-year warranty and has a green, RoHS-compliant design.|
Advanced Network Monitoring CapabilitiesThe PDU3XVSR6G32B gives IT personnel enhanced oversight of network power conditions. It remotely monitors site power conditions and PDU load levels, and supports notification and logging of all major power events and user-specified alarm thresholds via email or SNMP traps. Real-time clock backup maintains the time of day and date even if the PDU is shut down and unpowered. When used with Tripp Lite’s optional ENVIROSENSE sensor, the PDU3XVSR6G32B can also remotely monitor temperature/humidity conditions and provide rack access notification for up to 4 SRSWITCH door sensors. These capabilities simplify and streamline the task of network power management.
The PDU3XVSR6G32B features a built-in SNMPWEBCARD that enables full remote access for power monitoring, configuration and control via a secure network or web browser interface. Tiered access privileges allow both an administrator and a guest to log in and monitor the PDU via a web browser. The PDU3XVSR6G32B provides 10/100 Mbps auto-sensing for optimal communication compatibility with a current 10/100 Base-T network. Protocols supported include HTTP, HTTPS, PowerAlert® Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP and NTP. DHCP/Manual configuration support provides the ability to have network settings automatically assigned to the card, or manually assigned via permanent IP addresses.
Reliable Network-Grade Power Distribution
The PDU3XVSR6G32B’s 30 outlets (24 C13 and 6 C19) are individually controllable via network or web browser interface, providing a higher level of network power control. These controllable outlets enable power management tasks, such as load shedding, load ramping, programming power-on and power-off sequences, and rebooting of locked-up network devices, to be performed remotely. Unused outlets can be disabled to prevent the connection of unauthorized equipment loads.
Digital Current Meter and Outlet LEDsThe PDU3XVSR6G32B is equipped with a digital meter that allows IT personnel to monitor in real time (either locally or remotely) the input voltage and load levels per outlet, per breaker and per phase. The meter helps ensure that the PDU is used at maximum capacity with no danger of overload. Each outlet has an LED that illuminates to confirm power on/off status.
Optimized for Demanding Applications
The PDU3XVSR6G32B is designed for reliable distribution of AC power to supported equipment in IT, industrial and other similar applications. It has a rugged all-metal housing and 30 high-quality outlets in 6 separately breakered 20A single-phase load banks.
Versatile Installation Options Including Toolless InstallationThe PDU3XVSR6G32B is easy to integrate with a wide range of data center and network applications. It can be configured for 0U (vertical) rack installation with the included mounting brackets, and it also supports toolless button-mount vertical installation in compatible rack enclosures. Vertical 0U installation reduces cord clutter and promotes efficient airflow through the rack.
What’s in the Box
- PDU3XVSR6G32B 3-Phase Switched PDU
- Plug-lock cable retention inserts
- Spare installation buttons
- Mounting brackets
- Configuration cable
- Owner’s manual
2-Year Warranty and Environmentally Responsible Design
The PDU3XVSR6G32B is manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility. For peace of mind, it comes backed by a 2-year warranty.
Tripp Lite PDU3XVSR6G32B 3-Phase Switched Power Distribution Unit
- Reliable power distribution in high-density IT environments
- Built-in SNMPWEBCARD provides remote power monitoring via a secure network or web browser interface
- Digital meter enables monitoring of total PDU load
- Compact, 0U vertical rackmount installation
- Rugged all-metal housing with 30 total outlets (24 C13 and 6 C19)
- Plug-lock inserts to keep cords and outlets firmly connected
- 2-year warranty and RoHS-compliant design
