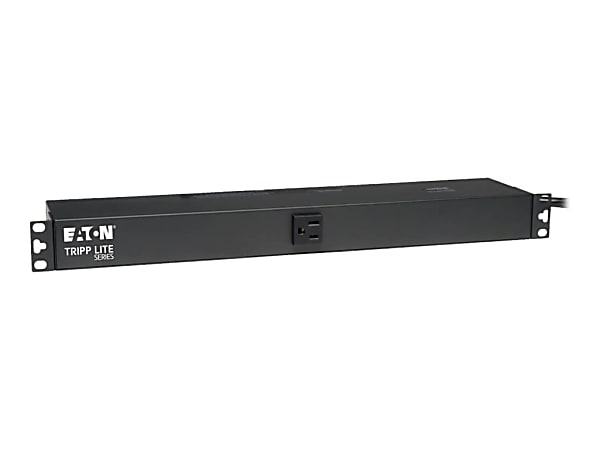

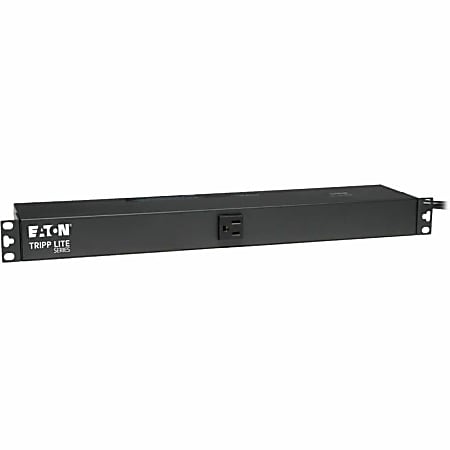

The PDU1215 1.8kW Single-Phase 120V Basic PDU is the perfect no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Perfectly suited for high-density IT environments, the PDU1215 features a single breakered load bank with 13 NEMA 5-15R outlets—12 in the rear and one in front. The NEMA 5-15P input plug with long 15-foot (4.5 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. A 15A circuit breaker protects connected equipment from dangerous overloads. The reversible all-metal housing mounts in 1U of space in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter. With a compatible rack and Tripp Lite’s PDUSIDEBRKT accessory (sold separately), you can adapt the PDU1215 for vertical 0U rack-mounting.
|brand name||Tripp Lite|
|Certifications & Standards||cUL, UR|
|Compatibility||TYPICAL APPLICATIONS: Multi-outlet power distribution unit is the ideal means of powering multiple loads in 19 inch rackmount, wallmount and under-counter applications, such as internetworking, PC systems, telecommunications, audio/video, security, sound reinforcement and more. Ideal for distribution of UPS, generator or commercially derived AC power to protected equipment.|
|Frequency Provided||50/60 Hz|
|Input Connectors||1 x power NEMA 5-15|
|Input Receptacles||1 x NEMA 5-15P|
|Input Voltage||120 V AC|
|Output Receptacles||13 x NEMA 5-15R|
|Output Voltage||120 V AC|
|warranty length||5-year limited|
|What's Included||PDU1215 PDU Basic 120V 15A 13 Outlet; PDU1215 Rackmount Power Strip; Warranty Information; Instruction Manual|
|Show More ▾|
13-Outlet, All-Metal, Space-Saving Power Distribution Unit
Tripp Lite's PDU1215 Single-Phase Basic Power Distribution Unit (PDU) is a dependable, space-saving, cost-effective way to deliver 120V power to multiple loads from a UPS system, generator or utility wall outlet in high-density IT environments. With 13 NEMA 5-15R outlets (1 front, 12 rear), a rugged all-metal housing and a switchless design to prevent accidental shutoff, the PDU1215 is the perfect no-frills power distribution unit for networking, PC systems, telecommunications, audio/video, security, sound reinforcement, and other similar applications. The PDU1215 includes hardware for 1U rackmount installation. Other mounting configurations like vertical 0U rackmount (with compatible racks and PDUSIDEBRKT accessory, sold separately) are also possible, as well as wall-mount, workbench and under-counter installations. For peace of mind the PDU1215 comes with a 5-year warranty and a RoHS-compliant design.
A multi-outlet PDU is the ideal means of powering multiple loads in 19-inch rackmount, wallmount, and under-counter applications, such as internetworking, PC systems, telecom, A/V, security, sound reinforcement, and more. The 13-outlet PDU1215 is a perfect for distributing alternate waveform UPS, generator, or commercially-derived AC power to protected equipment.
Power Previously Un-Powered Areas with Long Cord
Install the PDU1215 far away from its power source and distribute power to previously un-powered areas with the long, 15-ft. power cord and 5-15P plug. The PDU1215 can be mounted in a different area or room from where it draws AC power, putting users in control of supplying reliable power service where it is needed most.
The PDU1215 is easy to integrate with a wide range of network, industrial and other applications. Detachable flanges with pre-punched access holes and adjustable depth channels allow the PDU1215 to be configured for dozens of mounting schemes, including 1U installation in standard 19-inch rack enclosures as well as wall-mount, workbench, under-counter and similar installations. The PDU1215 is also suitable for 0U vertical installation in the cable management area of many rack enclosures Tripp Lite’s PDUSIDEBRKT accessory, sold separately.
The PDU1215’s switchless design prevents accidental shutoff and safeguards against costly downtime due to human error.
The PDU1215 is backed by a 5-year warranty. As part of Tripp Lite’s commitment to environmental responsibility, the PDU1215 is manufactured in compliance with strict RoHS specifications.
- Reliable power distribution in high-density IT environments
- All-metal housing with 13 outlets (1 front, 12 rear) and 15-foot cord
- Mounting flanges support installation in 2- and 4-post racks, with additional support for wall-mount and under-counter installation formats
- Switchless design prevents accidental shut-off
- Configurable for 1U or 0U (with optional PDUSIDEBRKT) rackmount installation
- Five-year warranty
