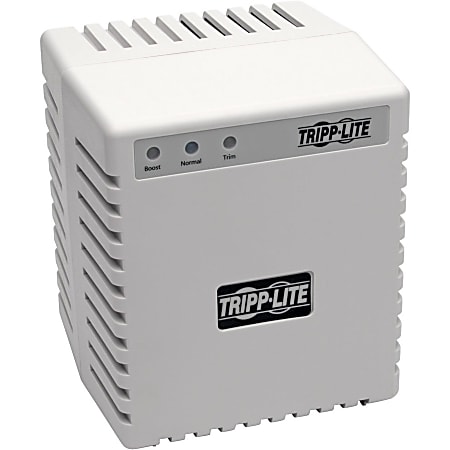

Tripp Lite 600W Line Conditioner w/ AVR / Surge Protection 230V 2.6A 50/60Hz C13 3 Outlet Power Conditioner Item # 763341
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The LR604 600W 230V Power Conditioner adjusts under- and overvoltages to provide safe, computer-grade AC power. Built-in automatic voltage regulation (AVR) offers two levels of voltage stabilization that correct undervoltages as low as 189V and overvoltages as high as 247V back to regulated 230V nominal power. Providing optimum voltage conditions not only extends the life of your equipment, but also keeps your equipment working through brownouts and prolonged overvoltage conditions.A 340-joule surge suppression rating helps prevent power spikes from inflicting damage, data loss or corruption and audio/video performance problems on your connected equipment. EMI/RFI noise filtering protects your AC line from disruptive electromagnetic and radio interference.Just connect the detachable 2-meter C13 to CEE7 Schuko power cord to an AC power source, and plug up to three devices into the rear C13 outlets. An included UNIPLUGINT universal adapter allows most worldwide plug configurations to connect to the LR604’s C13 outlets. You can monitor boost, trim and normal AVR operation using the three diagnostic LEDs on the front panel. The compact LR604 fits comfortably into your computer or home theater setup.
|brand name||Tripp Lite|
|frequency||50 Hz; 60 Hz|
|Input Connectors||1 x power NEMA 5-15|
|Input Voltage||230 V AC|
|Input Voltage Range||149 V AC to 270 V AC|
|Load Capacity||600 VA/600 W|
|Output Voltage||230 V AC|
|package contents||LR604 600W 230V Power Conditioner; UNIPLUGINT Adapter; C13 to CEE7 Schuko Power Cord, 2 m; Owner's Manual|
|Plug/Connector Type||IEC 60320 C14|
|Power Cord/Cable||6 ft|
|protection type||EMI / RFI; AC Noise; AC Surge; Over Voltage; Under Voltage|
|Receptacles||3 x IEC 320 EN 60320 C13|
|Surge Energy Rating||340 J|
|warranty length||2-year limited|
|Show More ▾|
Conditioned 230V AC Power for Sensitive Electronics
Surges, spikes and EMI/RFI line noise
wear down sensitive circuitry and can cause premature aging or total failure of
sensitive electronic equipment. Tripp Lite’s LR604 Line Conditioner provides
comprehensive protection and performance enhancement for computers, A/V
components and all electronics that use 230V mains power. The LR604 also
filters out disruptive line noise that can degrade the quality of your
components or corrupt or erase data. With its 600-watt, 2.6-amp output rating
and three C13 outlets, the LR604 provides ample capacity for multiple components.
Note: This product is only for use in regions that use 230V mains power.
To protect connected equipment from the harmful effects of voltage fluctuations, the LR604 features built-in automatic voltage regulation (AVR) to provide a targeted response to overvoltages and undervoltages (brownouts). The LR604 corrects brownouts as low as 189V and overvoltages up to 247V back to safe, 230V AC power.
EMI/RFI Line Noise Filtering
Various electromagnetic and radio sources can cause disruptive interference on the AC line. This EMI/RFI line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The LR604 incorporates technology that filters out disruptive line noise so that equipment performs at its peak.
The LR604 provides 340 joules of surge suppression against incoming transient voltages damaging valuable electronics. Includes full normal mode (H-N) and common mode (N-G/H-G) line surge suppression.
Built-In Diagnostic Capability
Three diagnostic LEDs provide power status information: AC power (Normal) and incoming voltage level (Boost, Trim).
The LR604’s compact cabinet (less than 13 cm tall) makes it easy to integrate into a wide range of applications: a desktop computer setup, home theater, music studio, lab bench and more. An included UNIPLUGINT universal adapter allows most worldwide plug configurations to connect to the LR604’s C13 outlets.
2-Year Warranty and Environmentally Responsible Design
The LR604 comes backed by a 2-year warranty and manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
- Complete brownout, overvoltage, surge and line noise protection in a single cost-effective unit
- 600-watt, 2.6-amp load capacity
- 3 AC outlets (C13); includes uniplug adapter that accepts country-specific plug types
- AVR corrects brownouts as low as 189V and overvoltages up to 247V
- EMI/RFI line noise filtering protects electronics from degrading line noise so components perform at their peak
- 340-joule surge suppression rating
- Front panel LEDs for simple operation
- 2-year product warranty
- LR604 230V Line Conditioner
- UNIPLUGINT Adapter
- CEE7 Schuko to IEC C13 Power Cord, 2 m (6.6 ft.)
- Owner’s Manual
