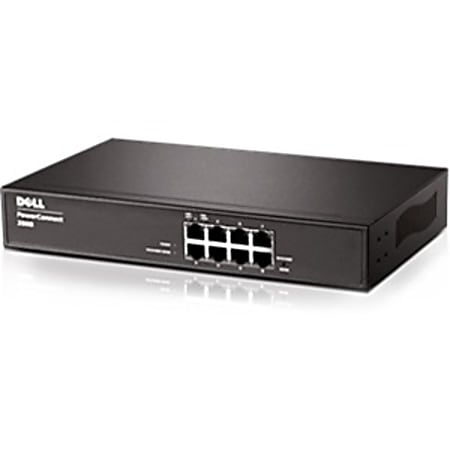

Dell PowerConnect 2808 Ethernet Switch Item # 788350
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
The Dell PowerConnect 2808 switch offers incredible value to customers by delivering web-managed capabilities that allow users to manage the switch through an intuitive web interface. This 8-port version is scalable from small workgroups to highly dense aggregation solutions at the branch office requiring Gigabit Ethernet. The 8-port switch also saves power by reducing power consumption up to 51% on copper ports with short cables and has energy efficient capabilities that automatically decrease power on any ports that detect unused or powered down devices saving both energy and money.
|Certifications & Standards||IEEE Standards:802.3; 802.3u; 802.3ab; 802.1q; 802.3ad; 802.1p|
|Compatible Rack Unit||1U|
|Management||RMON; SNMP; Command Line Interface (CLI); DHCP; Web-based Management; QoS; VLAN|
|Media Type Supported||Twisted Pair|
|Port/Expansion Slot Details||8 x Gigabit Ethernet Network|
|ports||8 10/100/1000 Ethernet (RJ-45)|
|Total Number of Network Ports||8|
|warranty length||limited lifetime|
|Weight (Approximate)||5 lb|
|What's Included||PowerConnect 2808 Ethernet Switch; Rack Mount Kit|
|Show More ▾|
Dell Networking 2800 Series LAN Smart Switches: High-value GbE access.
|Connect up to 10 times the speed of your 10/100 network with Dell Networking 2800 Series smart GbE switches for simple, web-managed end-user connectivity.|
Upgrade your 10/100 network with GbE for high-performance voice, video and data requirements.
Deploy with ease.
Use the Dell Networking 2800 SeriesTM right out of the box as an unmanaged switch or convert to a flexible web-managed network at the push of a button.
Apply smart switching.
The Dell Networking 2800 Series Smart LAN switch offers many of the same benefits as a fully managed switch without the associated complexity.
The Dell Networking 2800 Series offers four different models to serve a number of small to midsize user environments.
Protect your hardware investment
Dell Networking switches not only provide the quality, reliability and capability you expect from Dell, but also the peace of mind that guarantees Basic Hardware for life with a Lifetime Limited Warranty.
Global services and supportDell Services can help reduce IT complexity, lower costs and eliminate inefficiencies by making IT and business solutions work harder for you. The Dell Services team delivers distinctive capabilities, including full data migration solutions to facilitate consolidation from multiple file systems. Dell takes a holistic view of your needs and designs solutions for your environment and business objectives, and uses established delivery methods, local talent and in-depth domain knowledge to help lower your total cost of ownership.
|Product Description||Dell PowerConnect 2808 - switch - 8 ports - managed - rack-mountable|
|Device Type||Switch - 8 ports - managed|
|Enclosure Type||Rack-mountable 1U|
|Ports||8 x 10/100/1000|
|Performance||Switching capacity: 16 Gbps ¦ Forwarding performance: 11.9 Mpps|
|Capacity||Virtual interfaces (VLANs) per port for 802.1q: 64 ¦ QoS hardware queues: 4 ¦ VLAN tags per device: 4096|
|MAC Address Table Size||8K entries|
|Jumbo Frame Support||9000 bytes|
|Remote Management Protocol||SNMP, RMON, Telnet, HTTP, TFTP, CLI|
|Features||Flow control, auto-sensing per device, DHCP support, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, manageable, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, full duplex mode, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Virtual Cable Test (VCT) technology, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, fanless, Link Aggregation Control Protocol (LACP), DHCP client, Management Information Base (MIB), Strict Priority Queuing (SPQ), 2MB packet buffer, Class of Service (CoS), tagged VLAN, Generic Attribute Registration Protocol (GARP), UDP/IP offloading, 802.1x authentication|
|Compliant Standards||IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1v|
|Power||AC 120 V|
|Dimensions (WxDxH)||10.5 in x 6.4 in x 1.7 in|
|Manufacturer Warranty||Limited lifetime warranty|
|Bundled Services||Limited lifetime warranty|
