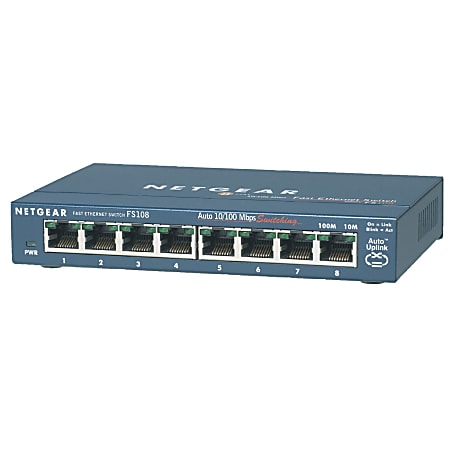

Netgear ProSafe FS108 Ethernet Switch
This item is in your cart

Netgear ProSafe FS108 Ethernet Switch

Item # 800245 OfficeMax # 22791196
Your Price
$29.99 $29.99
/ each
  • Quantity

In Stock

  • Estimated delivery 3-5 business days

Free in store pickup

Sold in stores Check your store availablity
Pricing, Assortment and Availability

The FS100 series FS108 Fast Ethernet switche brings the 100 Mbps switching technology and simplifies it for the small office marketplace. These products provide a cost effective way to instantaneously boost network performance while preserving your network infrastructure, including installed cabling and desktop software and hardware. Since each port is auto-speed- sensing, installation is plug and play and each connection can easily be upgraded from 10 to 100 Mbps.

Back to Menu

Item # 800245
Manufacturer # FS108NA
Ethernet Technology Fast Ethernet
Service & Support NETGEAR lifetime warranty
MAC Address Table Size 1K entries
power source AC Adapter
Status Indicators Port status, collision status, port transmission speed, port duplex mode, power
Product Series FS100
Total Number of Network Ports 8
Max Operating Temperature 104 °F
height 1.1"
Additional Information Forwarding Mode: Store-and-Forward; Latency (10 to 100 Mbps): 75 usec max
Number of Network (RJ-45) Ports 8
Certifications & Standards IEEE 802.3i 10BASE-T Ethernet; IEEE 802.3u 100BASE-TX Fast Ethernet Electromagnetic Compliance:; CE Mark; commercial FCC Part 15 Class B,; FAA Class B; EN55 022 (CISPR 22); Class B VCCI; Class B C-Tick Safety Agency Approvals:; UL (UL 1950); cUL; T-mark
Features Full duplex capability, auto-sensing per device, auto-uplink (auto MDI/MDI-X), store and forward
Interfaces 8 x 100Base-TX - RJ-45
Localization English / Canada, United States
width 9.3"
package contents FS108 Ethernet Switch; Wall-mount Kit; AC Adapter; Quick Installation Guide; Warranty and registration card
depth 4.1"
010--OD-SKU-Number 800245
Product Name ProSafe FS108 Ethernet Switch
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x; Plug and Play, C-Tick, CISPR 22 Class A, VCCI Class A ITE, EN55022 Class A, FCC Part 15 A
manufacturer Netgear, Inc
Subtype Fast Ethernet
weight 1.70 lb
brand name NETGEAR
Voltage Required AC 120 V
Humidity Range Operating 0 - 90%
Min Operating Temperature 32 °F
Port/Expansion Slot Details 8 x Fast Ethernet Network
Power Consumption Operational 7.5 Watt
Media Type Supported Twisted Pair
Standard Memory 8 MB
Enclosure Type Desktop
Product Type Ethernet Switch
Power Device External power adapter
ports 8 x 10/100
color Blue
warranty length limited lifetime
model name FS108
Network Technology 10/100Base-TX

Back to Menu

Back to Menu

Back To Top

From the Manufacturer|Powered by Answers™

Thank You Is the information in this section helpful? Yes / No

Overview

  • NETGEAR’s popular FS100 series desktop switches, known for its reliability and performance, provide your LAN with high-speed, 10/100 Mbps auto-sensing connectivity for as many 8 users. Just plug in your Ethernet cables, connect a power cord, and you’re ready to go-there’s no software to configure. They negotiate to the fastest possible connection and with Auto Uplink™ technology, these switches automatically figure out if the link needs a straightthrough or cross-over connection, and makes the right choice. Existing 10BASE-T devices are easily integrated within higher bandwidth environments, with full wire speeds on all ports of either 10 Mbps or 100 Mbps. Engineered without the need for internal fans, they operate silently. And each of these very compact switches is housed in a sturdy metal case for years of dependable use.

    When you want solid network performance for your growing business, plus the added benefit of quiet operation, NETGEAR’s ProSafe FS108 is your best choices for quality, convenience, and smooth — running usability — all at very affordable prices.

Product Highlights

  • At Your Service
    Eight ports provide LAN access for many users. Every port supports up to 200 Mbps in dedicated bandwidth and traffic is forwarded flawlessly with automatic flow control.

    Compact
    Solidly built in small sizes that are easy to position when space is at a premium. Ideal for conference rooms, class rooms, study groups or small offices. Place it on any flat surface or use the included wall mount kit to tuck it out of the way.

    Simple To Use
    Once you connect the hardware, your switch is operating! Auto negotiation takes care of the speed and duplex, while Auto Uplink takes care of the MDI/MDI-X connection. Eliminate the need for toggle switches or special crossover cables.

    Quiet
    No fan means no noise, which helps maintain a peaceful atmosphere in your busy office.

Product images

Technical Specifications

  • Physical Specifications

    • Dimensions (w x d x h): 158 x 103 x 27 mm(6.2 x 4.1 x 1.1 in)
    • Weight: 0.49 kg (1.1 lb)

    Package Contents

    • 10/100 Desktop Switch (FS108)
    • Wall-mount kit
    • AC adapter
    • Quick Installation Guide
    • Warranty/support information card
