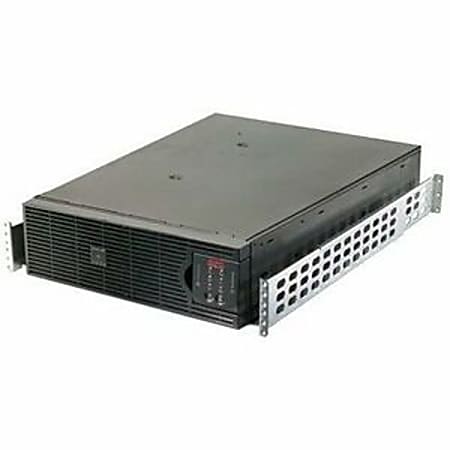

APC Smart-UPS SURTD5000RMXLP3U 5000VA Tower/Rack-mountable UPS Item # 810099
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
|Backup/Run Time (Full Load)||4.80 Minute|
|Backup/Run Time (Half Load)||15.10 Minute|
|Battery Characteristics||Maintenance-free, Sealed, Spill-proof|
|battery type||Sealed Lead Acid (SLA)|
|Bypass Switch||Automatic; Internal; Manual|
|Certifications & Standards||CSA; FCC Part 15 Class A; UL 1778; UL 1449|
|Emergency Power OFF||Yes|
|form factor||Tower/Rack Mountable|
|Frequency Provided||50/60 Hz|
|Input Connectors||Power NEMA L14-30|
|Input Voltage||110 V AC; 220 V AC|
|Load Capacity (VA)||5000 VA|
|Load Capacity (Watt)||4000 W|
|manufacturer||American Power Conversion Corp|
|Maximum Battery Recharge Time||2.50 Hour|
|Output Voltage||208 V AC|
|package contents||Smart-UPS RT 5000VA Tower/Rack-mountable UPS; CD With Software; Rack Mounting Support Rails; Removable Support Feet; Smart UPS Signaling RS-232 Cable; User Manual; 2 x Battery Modules|
|Plug/Connector Type||NEMA L14-30P|
|Receptacles||1 x NEMA 5-20R; 1 x NEMA L14-30R; 4 x NEMA L6-20R|
|warranty length||2-year limited|
|Show More ▾|
From the Manufacturer|
APC Smart-UPS SURTD5000RMXLP3UThe APC Smart-UPS SURTD5000RMXLP3U provides online, double-conversion power protection and reliable battery backup ideal for servers, voice/data networks, medical labs, and light industrial applications. This versatile UPS was developed for unstable power conditions worldwide, offering the high-power density necessary to support power-hungry, business-critical devices. The addition of hot-swappable plug-and-play battery packs allows the Smart-UPS SURTD5000RMXLP3U to scale instantly, supporting critical electronic devices for hours, not minutes, when power conditions are severe. The accompanying free PowerChute Network Shutdown management software provides convenient monitoring and control of your UPS including safe operating system shutdown if the unit is unattended, while the included AP9631 SmartSlot Network Management Card allows you to access the UPS remotely.
With a 4,000-watt/5,000-volt ampere output power capacity, advanced management features, and intelligent battery management maximizing runtime, this rack/tower convertible UPS offers proven performance for the most challenging power conditions.
At a Glance:
- Provides instant, clean power to critical electronic devices during a power outage
- 6 battery and surge-protected outlets ensure connected electronics are backed-up and protected
- 208V nominal input voltage with dual 120V/208V output voltages for versatile use with servers and IT equipment
- Scalable, uninterrupted runtime with addition of hot-swappable batteries
- Intuitive 16-segment LED display with easy-to-understand indicators
- Preinstalled AP9631 network management card enables remote monitoring and control of UPS
- The pure sine wave output while on battery provides the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics
- PowerChute Network Shutdown software for UPS management, safe system shutdown, and energy management
- Adaptable rackmount/tower design
- Includes hardware for easy rackmount installation
- Two-year limited warranty
- APC Smart-UPS SURTD5000RMXLP3U
- AP9631 SmartSlot Network Management Card
- Rack mounting support rails
- PowerChute Network Shutdown software CD
- Smart-UPS signaling RS-232 cable
- USB cable
- User manual
Versatile Power Solution for Demanding ApplicationsCapable of supporting large power loads such as server racks and medical lab equipment, the APC Smart-UPS SURTD5000RMXLP3U is designed for reliable use during unstable and severe power conditions. This UPS supports 208V input voltage while supplying simultaneous 208V and 120V output voltages. It offers reliable battery backup to up to six devices. Double-conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to the battery during challenging power events.
Clean and Uninterrupted Power
This APC Smart-UPS supplies network-grade power conditioning to protect connected devices from damaging surges, spikes, lightning, and disruptive noise. Connected equipment will receive clean, uninterrupted power, even when generator power is being used. The SURTD5000RMXLP3U can also be configured with hot-swappable plug-and-play batteries to instantly extend runtime when critical systems require long periods of battery backup.
Intelligent Battery Management for Proactive UPS ManagementThe APC Smart-UPS SURTD5000RMXLP3U is equipped to maximize battery life by regulating charge voltage according to battery temperature and conducting automatic periodic self-tests. These self-tests dynamically assess the current conditions of your UPS battery and notify you of any impending replacement, effectively enabling you to proactively manage your IT environment so you and your business can more easily avoid downtime. An advanced 16-segment LED display quickly shows unit and power status that can be understood easily through visual indicators.
Preinstalled Network Card for Remote ManagementThis UPS comes preinstalled with an APC AP9631 SmartSlot Network Management Card. This card enables remote UPS management and environmental monitoring by connecting the UPS directly to the network. Up to eight users can simultaneously access the user interface via web browser to quickly and easily access the UPS, and up to three users can access the network command line interface.
Rack-Tower Convertible for Easy Installation
The APC Smart-UPS SURTD5000RMXLP3U easily converts between tower and rackmount installation, letting you choose the right setup for your individual needs and protecting your initial investment if you need to switch environments.
PowerChute Software for Simple Management and Control
The accompanying PowerChute Network Shutdown software provides UPS management, safe system shutdown, and innovative energy management capabilities for your APC Smart-UPS SURTD5000RMXLP3U. In the event of an extended power outage, graceful unattended shutdown ensures no information is lost and time to recovery is minimized.
This Smart-UPS SURTD5000RMXLP3U is covered by a two-year limited warranty to repair or replace the unit.
Estimated Runtime for Internal Battery
|200 watts||182 minutes|
|500 watts||76 minutes|
|700 watts||54 minutes|
|900 watts||40 minutes|
|1000 watts||36 minutes|
|1300 watts||26 minutes|
|1600 watts||20 minutes|
|2000 watts||15 minutes|
|2500 watts||11 minutes|
|3000 watts||8 minutes|
|3400 watts||7 minutes|
|4000 watts||5 minutes|
