Take your business to the next level of performance, expandability, and no compromise reliability in one complete package. Featuring a perfect mix of HP Z DNA in a performance workstation package with up to 8 discrete processor cores, up to 128 GB of RAM, and multiple storage and PCIe configuration options.
|80 PLUS Certification||80 PLUS|
|controller type||Serial ATA/600|
|Dual-Layer Media Supported||Yes|
|Effective Memory Speed||1866 MHz|
|Environmental Certification||ENERGY STAR; EPEAT Gold|
|Graphics Controller Manufacturer||NVIDIA|
|Graphics Controller Model||Quadro K420|
|Graphics Memory Capacity||1 GB|
|hard drive capacity||500 GB|
|Hard Drive Interface||Serial ATA|
|Hard Drive RPM||7200|
|Input Voltage||120 V AC; 230 V AC|
|maximum memory capacity||128 GB|
|Maximum Power Supply Wattage||525 W|
|memory type||DDR4 SDRAM|
|Number of 3.5" Bays||2|
|Number of External 5.25" Bays||3|
|Number of PCI Express x1 Slots||1|
|Number of PCI Express x16 Slots||2|
|Number of PCI Express x4 Slots||1|
|Number of PCI Express x8 Slots||1|
|Number of PCI Slots||1|
|Number of Processors Installed||1|
|Number of Processors Supported||1|
|Number of Total Expansion Bays||5|
|Number of Total Expansion Slots||6|
|Number of Total Memory Slots||8|
|Operating System Architecture||64-bit|
|operating system details||Windows 7 Professional Upgradable to Windows 8.1 Pro|
|Operating Systems||Windows 7 Pro|
|Optical Media Supported||DVD-RAM/±R/±RW|
|package contents||Z440 Workstation (ENERGY STAR); Keyboard; Mouse; Windows 8.1 Pro 64-bit Media|
|Pointing Device Type||Mouse|
|ports||1 audio line in; 1 audio line out; 1 Ethernet (RJ-45); 4 USB 3.0|
|Power Factor Correction||Yes (active)|
|Processor Core||Quad-core (4 Core)|
|processor model||E5-1607 v3|
|processor speed||3.10 GHz|
|processor type||Intel Xeon|
|Rated Memory Speed||2133 MHz|
|Theft/Intrusion Protection||Security lock slot (cable lock sold separately)|
|Total Number of USB Ports||4|
|warranty length||3-year limited|
|Weight (Approximate)||24.25 lb|
|wired connectivity||10/100/1000 Ethernet|

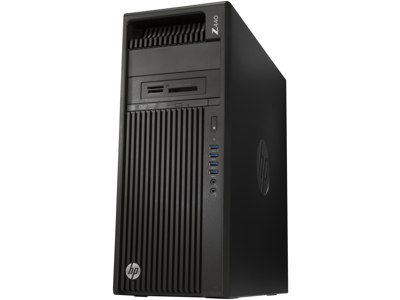

HP Z440 Workstation (ENERGY STAR)
Operating SystemWindows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)
ProcessorIntel® Xeon® E5 processor
Get the job done fastCross items off your to-do list fast. Achieve massive computational performance with a single processor personal workstation delivering support for up to 8 cores of processing power. Add in powerful graphics and performance features like optional Thunderbolt™ 21, HP Z Turbo Drive2, and HP Remote Graphics Software,2 and you get a world-class workstation experience that never slows you down.
Customize it to grow with youWhen your job requires more, the HP Z440 Workstation, with its sleek 4U form factor, tool-less design, and built in handles make it simple to expand. Easily configure memory, storage, graphics, and more to suit your needs.
Position for the futureProtect your investment and make downtime a thing of the past. Get no-compromise reliability and a standard 3/3/3 limited warranty from the HP Z440 Workstation.
Primed to performAchieve the performance you need with next generation Intel® Xeon® processors for up to 8 processor cores in one system.
Graphics proGet serious about graphics and reach peak productivity with access to a breadth of AMD professional graphics from entry to high-end 3D.
See everything clearlyTake productivity up a notch with the ability to do more thanks to NVIDIA® professional graphics cards in 2D or 3D.
High-power portsMaximize your time and increase your capabilities with USB and SATA ports, plus lightning-fast data transfers using optional Thunderbolt™ 2 technology.
A chassis that meets any challengeA brand new tool-free chassis boasts low acoustics, single integrated Gb Ethernet and more.
Set a new performance curve for your HP Z440Reduce boot up, calculation, and graphics response and revolutionize how your HP Z440 handles large files with the HP Z Turbo Drive, a remarkably fast and innovative storage solution.
More power to youYou’ll never run out of juice with two power supply options including a 525W option and a 700W option with two power cables for high-power professional graphics.
See every angleTake multitasking to a new level with support for up to eight displays.3
Your personal system engineerOptimize this HP Z440 for peak performance. HP Performance Advisor4 configures your system with updated settings and drivers to help maximize performance.
|Operating system||Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro 64)5|
|Memory slots||8 DIMM|
|Memory, standard||4 GB 2133 MHz DDR4 ECC Registered RAM (1 x 4 GB)|
|External drive bays||
One slim ODD
|Internal drive bays||Two 3.5"|
|Hard drive description||500 GB 7200 rpm SATA|
|Storage controller||Integrated SATA 6.0 Gb/s|
|Processor family||Intel® Xeon® E5 processor|
|Processor||Intel® Xeon® E5-1607 v3 (3.1 GHz, 10 MB cache, 4 cores, Intel® vPro™)|
|Number of processors||1|
|Graphics||NVIDIA Quadro K420 (1 GB)|
|Compatible displays||All HP Z Displays and HP DreamColor Displays are supported. For more information see www.hp.com/go/zdisplays.|
|Power||525 W 85% efficient, wide-ranging, active PFC|
|Weight note (imperial)||Exact weight depends upon configuration.|
|Weight note (metric)||Exact weight depends upon configuration.|
|Audio||Integrated Realtek HD ALC221|
|Keyboard||HP USB Keyboard|
|Pointing device||HP USB Optical Mouse|
2 PCIe Gen3 x16
1 PCIe Gen3 x8 (open-ended)
1 PCIe Gen2 x4 (open-ended)
1 PCIe Gen2 x1 (open-ended)
|Expansion slots note||Open-ended connector allows a greater bandwidth card to be installed physically into a lower bandwidth connector/slot.|
4 USB 3.0
2 USB 2.0
1 audio line in
1 audio line out
1 USB 2.0
1 USB 3.0
|I/O Port location||
HP Solenoid Hood Lock & Hood Sensor
HP Business PC Security Lock Kit
TPM 1.2 certified
HP Keyed Cable Lock (optional)8
|Energy efficiency||ENERGY STAR® qualified configurations available.|
|Warranty||Protected by HP Services, including a standard limited 3 years parts, 3 years labor, and 3 years onsite service (3/3/3) warranty. Certain restrictions and exclusions apply.|
