TP-LINK Grid Parabolic Antenna Item # 823657
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
This antenna operates in the 2.4-2.4835 GHz band and is designed for use outdoors.
|Antenna Gain||24 dBi|
|Antenna Placing / Mounting||Outdoor, wall-mountable, pole mount|
|Application/Usage||Wireless Data Network|
|Compatibility||TL-WA601G Wireless Access Point; TL-ANT24PT Pigtail Cable; TL-ANT24EC6N Antenna Extension Cable|
|frequency||2.40 GHz to 2.48 GHz|
|Frequency Band Type||UHF|
|Frequency Range||2.4 - 2.4835 GHz|
|manufacturer||TP-LINK Technologies Co., Ltd|
|Number of Connectors||1|
|Voltage Standing Wave Ratio (VSWR)||1.5:1|
|Show More ▾|
From the Manufacturer|

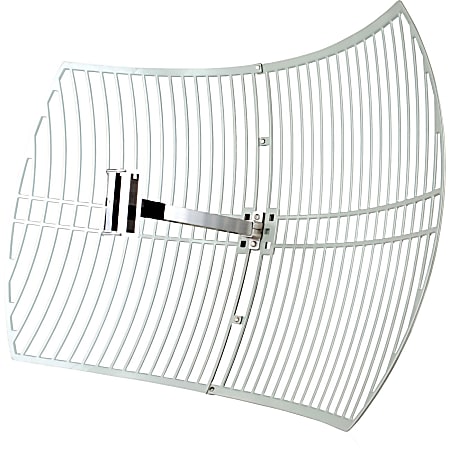

What This Product DoesThe 2.4GHz 24dBi Grid Parabolic Antenna TL-ANT2424B is designed for the spread spectrum system, operates in the 2.4-2.5 GHz band, and provides 24dBi directional operation. The surface design with welded-steel reflector brings out the best performance. The TL-ANT2424B features high gain, long coverage, is light weight, wind-resistant, and has a compact structure. It is built for the outdoors and has a range of up to 35 miles.
Easy To Use
Installation of the TL-ANT2424B is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.
- Compliant with 802.11n/b/g (2.4GHz)
- 24dBi signal gain
- N Female connector
|Dimension||39.4 ×23.6 in （1000 x 600mm）|
|Connector Type||N Female(Jack)|
|Approximate Range at 1/11/54Mbps||56km/31.5km/4.44km|
|Optional Accessory||TL-ANT24EC6N TL-ANT24EC12N|
- 24dBi Grid Parabolic Antenna
- Installation mounting kits
- User Guide
